Replacing the luggage lamp (Bulb type)

OMQ4A075053
OMQ4A075054
CAUTION

To avoid finger burns or electric shock, make sure the interior lights are OFF before you replace one.

To replace the luggage light (Bulb type), follow these steps:

  1. Press the ENGINE START/STOP button in the OFF position and disconnect the battery’s negative (-) terminal.

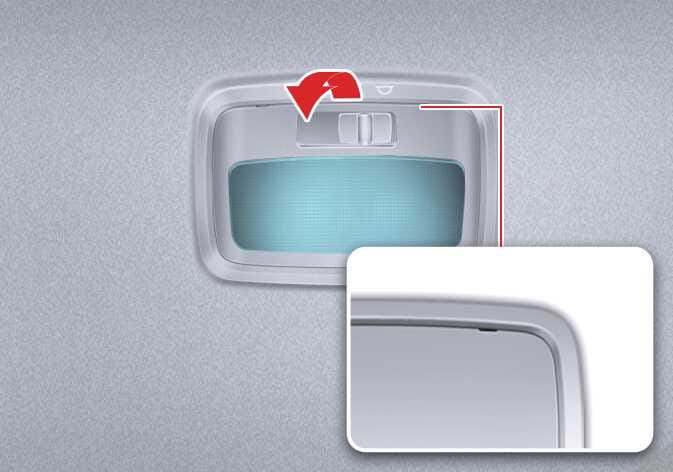

  2. Use a slotted (flat-tip) screwdriver to gently pry the lamp assembly cover from the vehicle interior.
  3. Remove the cover from the light assembly.

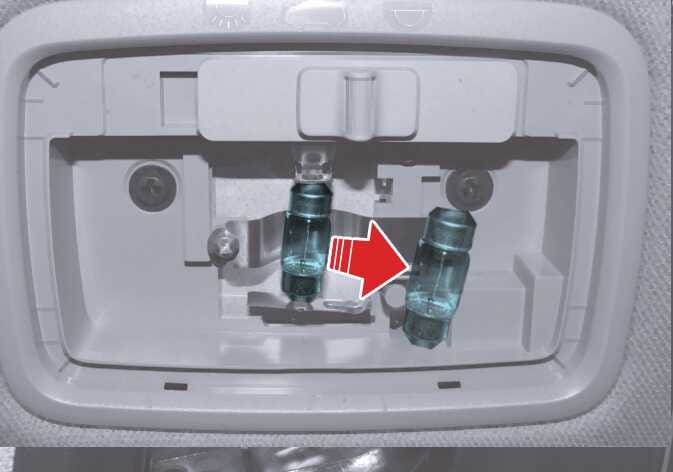

  4. Pull the bulb straight out of the socket to remove it.
  5. Install a new bulb in the socket.
  6. Replace the cover on the lamp assembly.
  7. Replace the lamp assembly on the vehicle interior.
NOTE

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
