Replacing the map lamp (Bulb type)

OMQ4A075063
OMQ4A075064
CAUTION

To avoid finger burns or electric shock, make sure the interior lights are OFF before you replace one.

To replace the map light (Bulb type), follow these steps:

  1. Press the ENGINE START/STOP button in the OFF position and disconnect the battery’s negative (-) terminal.

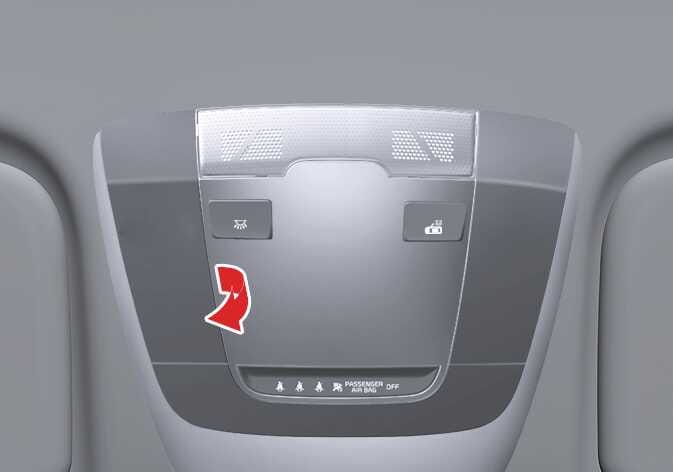

  2. Use a slotted (flat-tip) screwdriver to gently pry the lens cover from the lamp housing.

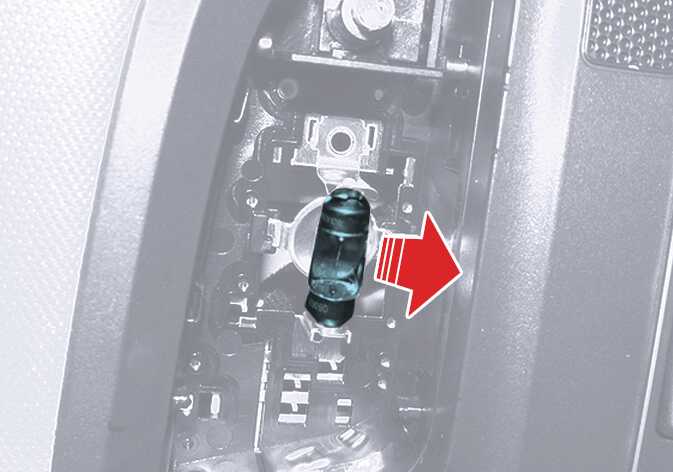

  3. Pull the bulb straight out of the socket to remove it.
  4. Install a new bulb in the socket.
  5. Align the tabs on the lens cover with the notches in the lamp housing, and lock the lens into the lamp housing.
CAUTION

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
