Charging types
-
Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the high voltage battery may vary.
-
Actual charger image and charging method may vary in accordance with the charger manufacturer.
|
Category |

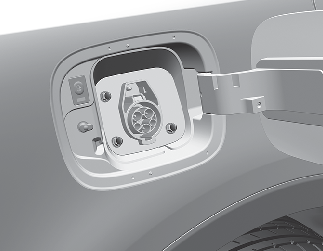

Charging Inlet (Vehicle) |

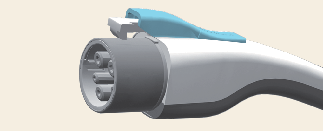

Charging Connector |
Charging Method |
Charging Time |
|---|---|---|---|---|
|
AC Charger (240V/48A) |
 |
 |
AC charger installed in homes or public charging stations |
Approximately 3 hours 25 minutes (to fully charge the plug-in hybrid, 100%) |
|
Trickle Charger (120V/12A) |
|
|
Household current |
For charging at home. The included Trickle charger takes about 9 hours at room temperature (Can be charged to 100%.). |
Type 3R enclosure satisfies the requirements of UL 50E standard when the charging connector is connected to the vehicle side charging inlet. An additional Type 3R enclosure should be provided in the end installation of the vehicle side charging inlet. The “Type 3R” marking can be found on the charging inlet.
* What is type 3R?: Performance requirement for enclosures intended for outdoor use that provides a degree of protection against falling dirt, rain, sleet, and/or snow.
-
Risk of Electric Shock, Do Not Disconnect Under Load.
-
Suitable For Use on a circuit capable of delivering not more than 5000 RMS symmetrical amperes, 250 volts maximum.
