Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

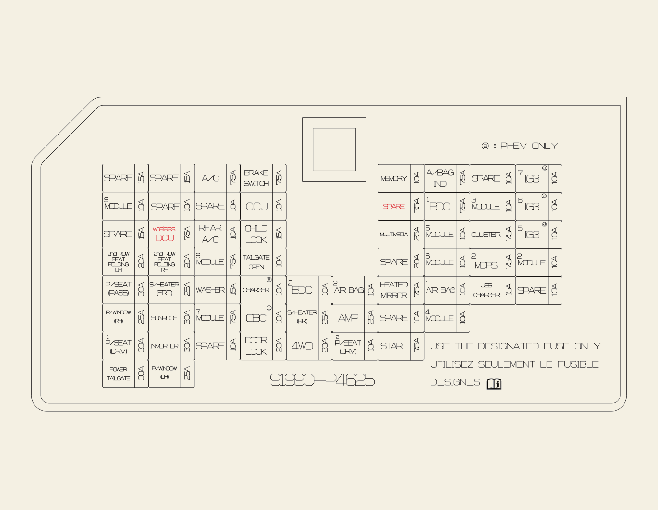

Driver's side fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
SPARE |
15A |
Not Used |
|
SPARE |
15A |
Not Used |
|
A/C |
7.5A |
DATC (Dual Automatic Temperature Control),Engine Room Junction Block (PTC Heater1 Relay, PTC Heater2 Relay) |
|
BRAKE SWITCH |
7.5A |
BDC (Body Domain Controller), Stop Lamp Switch |
|
MEMORY |
10A |
DATC (Dual Automatic Temperature Control), ADAS Unit (Parking), BDC (Body Domain Controller : Parking Distance Warning Power), Mood Lamp Unit, Driver/Passenger Door Mood Lamp, Driver/Passenger Mood Lamp, Built-in Cam Unit, Rear A/C Control Switch, Instrument Cluster |
|
A/BAG IND |
7.5A |
Overhead Console Lamp |
|
SPARE |
10A |
Not Used |
|
IG3 7 |
10A |
CDM (Charge Door Module) |
|
MODULE 9 |
10A |
Multi Function Switch, Hazard Switch, Crash Pad Switch, Rain Sensor, DATC (Dual Automatic Temperature Control), ETCS( Electronic Toll Collection System), DAU (Door Area Unit), Driver/Passenger Door Outside Handle, Power Tail Gate Module, Driver/Passenger Seat Control Module |
|
SPARE |
10A |
Not Used |
|
SPARE |
10A |
Not Used |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
SPARE |
7.5A |
Not Used |
|
BDC 1 |
7.5A |
BDC (Body Domain Controller) |
|
MODULE 3 |
10A |
CCU (Central Communication Unit), DCU (Data Connectivity Unit), Stop Lamp Switch |
|
IG3 6 |
10A |
DATC (Dual Automatic Temperature Control), CCNC (Connected Car Navigation Cockpit) |
|
SPARE |
15A |
Not Used |
|
Wireless DCU |
7.5A |
DCU (Data Connectivity Unit) |
|
REAR A/C |
10A |
Rear A/C Control Module |
|
CHILD LOCK |
15A |
Rear LH/RH Door Power Child Lock/Unlock Motor |
|
MULTIMEDIA |
25A |
CCNC (Connected Car Navigation Cockpit) |
|
MODULE 5 |
10A |
CCNC (Connected Car Navigation Cockpit), DATC (Dual Automatic Temperature Control), Built-in Cam Unit, Driver/Passenger Seat Control Module, AMP (Amplifier), Head Lamp Module LH/RH, FRONT TRAY WIRELESS CHARGER |
|
CLUSTER |
7.5A |
Instrument Cluster, Head-Up Display |
|
IG3 5 |
10A |
CCU (Central Communication Unit) |
|
2nd ROW SEATFOLDING LH |
20A |
REAR SEAT FOLDING LH |
|
2nd ROW SEATFOLDING RH |
20A |
REAR SEAT FOLDING RH |
|
MODULE 8 |
7.5A |
AC Inverter Module, AC Inverter (Rear), 20AH (20HR) [BATTERY LITHIUM TYPE-SUB] |
|
TAILGATEOPEN |
10A |
Tail Gate Open Relay |
|
SPARE |
20A |
Not Used |
|
MODULE 6 |
10A |
Multi Function Switch, Driver Power Window Switch Module |
|
MDPS 2 |
7.5A |
MDPS (Motor Driven Power Steering) |
|
MODULE 2 |
10A |
AMP (Amplifier), BDC (Body Domain Controller), DCU (Data Connectivity Unit), CCU (Central Communication Unit), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch, ADAS Unit (Parking), Built-in Cam Unit |
|
P/SEAT (PASS) |
30A |
Passenger Power Seat Module |
|
S/HEATER (FRT) |
25A |
Front Seat Warmer Control Module, Front Seat Air Ventilation Control Module |
|
WASHER |
15A |
Multi Function Switch |
|
CHARGER |
10A |
Integrated Circuit Module (Charger Door Lock/Unlock Relay), CDM (Charge Door Module) |
|
BDC 2 |
10A |
BDC (Body Domain Controller), Ultra Wide Band & Bluetooth Low Energy MASTER/SLAVE, Ultra Wide Band Front LH/RH, Ultra Wide Band Rear LH/RH |
|
AIR BAG 2 |
10A |
ACU (Airbag Control Unit) |
|
HEATEDMIRROR |
7.5A |
Driver/Passenger Outside Handle |
|
AIR BAG 1 |
10A |
ACU (Airbag Control Unit), ODS (Occupant Detection System) |
|
USB CHARGER |
15A |
Driver/Passenger Seat USB Charger, Luggage USB Charge Connector |
|
SPARE |
10A |
Not Used |
|
P/WINDOW (RH) |
25A |
Passenger Safety Power Window Module, Rear RH Safety Power Window Module |
|
SUNROOF |
30A |
Sunroof Motor |
|
MODULE 7 |
7.5A |
BDC (Body Domain Controller) |
|
OBC |
10A |
OBC (On Board Charger) |
|
S/HEATER (RR) |
25A |
Rear Seat Warmer Control Module |
|
AMP |
25A |
AMP (Amplifier) |
|
SPARE |
10A |
Not Used |
|
MODULE 4 |
10A |
Front View Camera, ADAS Driving ECU, ADAS Unit (Parking), Front/Rear Corner Radar LH/RH, Crash Pad Switch, Console Switch, Battery C/FAN Relay, VESS (Virtual Engine Sound System), 4Wheel Drive ECU |
|
P/SEAT(DRV) 1 |
30A |
Driver Power Seat Module |
|
INVERTER |
30A |
AC Inverter Module, AC Inverter (Rear) |
|
SPARE |
10A |
Not Used |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER |
|
4WD |
20A |
4 Wheel Drive ECU |
|
P/SEAT(DRV) 2 |
10A |
Driver Power Seat Module |
|
START |
7.5A |
HPCU (Hybrid Power Control Unit) |
|
POWERTAILGATE |
30A |
PTGM (Power Tail Gate Module) |
|
P/WINDOW(LH) |
25A |
Driver Safety Power Window Module, Rear LH Safety Power Window Module |

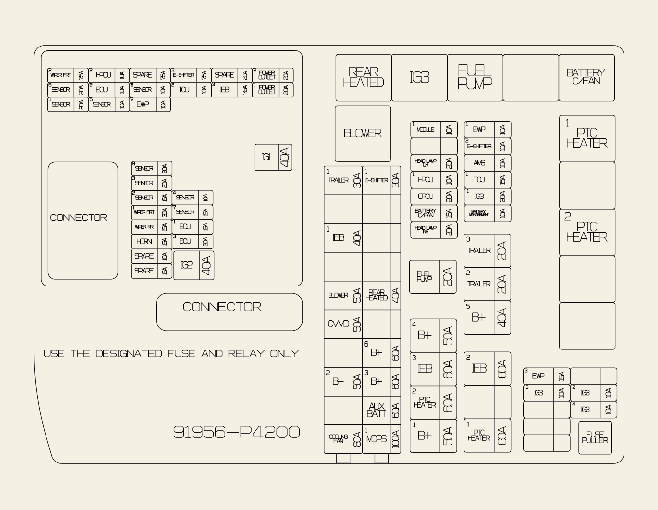

Engine compartment fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
WIPER FRT2 |
7.5A |
IBU (Integrated Body Control Unit) |
|
HPCU2 |
10A |
HPCU (Hybrid Power Control Unit) |
|
SPARE |
7.5A |
Not Used |
|
E-SHIFTER3 |
7.5A |
SBW (Shift By Wire) Control Unit |
|
SPARE |
20A |
Not Used |
|
POWER OUTLET2 |
20A |
Rear Console Power Outlet |
|
SENSOR6 |
20A |
Not Used |
|
ECU2 |
10A |
ECM (Engine Control Module) |
|
SENSOR8 |
10A |
OPU |
|
TCU2 |
10A |
TCM (Transmission Control Module) |
|
IEB4 |
7.5A |
IEB Unit |
|
POWER OUTLET1 |
20A |
Luggage Power Outlet |
|
SENSOR1 |
20A |
Ignition Coil #1~#4 |
|
SENSOR5 |
10A |
E/R Junction Block (Fuel Pump Relay) |
|
EWP2 |
10A |
Electric Water Pump, Electronic Water Pump (HEV) |
|
SENSOR9 |
20A |
ECM (Engine Control Module) Voltage via Main Relay |
|
SENSOR3 |
20A |
ECM (Engine Control Module) Voltage via Main Relay |
|
SENSOR2 |
15A |
Active Purge Pump |
|
WIPER FRT1 |
30A |
Front Wiper Motor, Front Wiper (Low) Relay |
|
WIPER RR |
15A |
Rear Wiper Relay, Rear Wiper Motor |
|
HORN |
15A |
Horn Relay |
|
SPARE |
10A |
Not Used |
|
SPARE |
15A |
Not Used |
|
SENSOR4 |
10A |
RCV (Recirculation Valve Control) Control Solenoid Valve, Cooling Fan Motor, Oil Control Valve #1/#2(Intake, Exhaust), ELCM (EVAP, Leak Check Module), Purge Control Solenoid Valve, Variable Oil Pump Solenoid valve |
|
SENSOR7 |
15A |
Oxygen Sensor (UP/Down) |
|
ECU1 |
15A |
ECM (Engine Control Module) |
|
ECU3 |
20A |
ECM (Engine Control Module) |
|
IG1 |
40A |
IG1 Relay |
|
IG2 |
40A |
IG2 Relay, ACC relay |
|
E-SHITER2 |
10A |
SBW (Shift By Wire) Control Unit, Electronic Shift Dial |
|
EWP1 |
10A |
Electronic Water Pump (HEV) |
|
AMS |
10A |
Battery Sensor |
|
TCU1 |
15A |
TCM (Transmission Control Module) |
|
IG3 |
20A |
OBC Unit, Battery System Assembly |
|
BATTERY MANAGEMENT |
10A |
Battery System Assembly |
|
TRAILER1 |
30A |
TRAILER |
|
COOLING FAN |
80A |
Cooling Fan Motor |
|
IEB1 |
40A |
IEB Unit |
|
BLOWER |
50A |
Blower Relay |
|
CVVD |
50A |
CVVD Actuator |
|
B+2 |
50A |
Power Domain Control Module (IPS) |
|
E-SHIFTER1 |
30A |
SBW (Shift By Wire) Control Unit |
|
MDPS1 |
100A |
MDPS Unit (Motor Driven Power Steering Unit)* |
|
REAR HEATED |
40A |
Rear Heated Relay |
|
B+6 |
60A |
PCB Junction Block (Fuse-IG1, IG2) |
|
B+3 |
60A |
Power Domain Control Module (Fuse-Power Tail Gate, P/SEAT (DRV), P/SEAT(PASS), P/WINDOW(LH/RH), S/HEATER FRT, INVERTER, SUNROOF, 2nd ROW SEAT FOLDING(LH/RH), Wireless DCU, Power Handle, Module9 |
|
AUX BATT |
60A |
Parking Lithium Battery Module |
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
B+4 |
50A |
Power Domain Control Module (Fuse-Long Term Load Latch Relay, Child Lock Relay#1/#2, Short Term Load IPS, BCD2, Brake Switch, CCU, 4WD, Rear S/HEATER, Center Door Lock/Unlock Relay Two Turn Unlock Relay, Tail Gate Open) |
|
IEB3 |
60A |
IEB Unit |
|
PTC HEATER2 |
60A |
PTC (Positive Temperature Coefficient) Heater2 Relay |
|
B+1 |
50A |
Power Domain Control Module (IPS) |
|
TRAILER3 |
20A |
TRAILER |
|
TRAILER3 |
20A |
TRAILER |
|
B+5 |
40A |
Power Domain Control Module (Fuse-AMP, AIR BAG #2, CHARGER, OBC, P/SEAT DRV #2) |
|
IEB2 |
60A |
IEB Unit |
|
PTC HEATER1 |
60A |
PTC (Positive Temperature Coefficient) Heater1 Relay |
|
EWP3 |
15A |
Electronic Water Pump (Battery PHEV) |
|
IG3 3 |
10A |
BMU PHEV, OBC sig. |
|
IG3 2 |
10A |
HPCU (Hybrid Power Control Unit), SBW (Shift By Wire) Control Unit (PHEV) |
|
IG3 4 |
10A |
A/CON Compressor (PHEV) |
|
MODULE1 |
10A |
Virtual Engine Sound System, Battery Cooling EXV.(PHEV) |
|
HEAD LAMP LH |
20A |
Head Lamp Module LH |
|
HPCU1 |
10A |
HPCU (Hybrid Power Control Unit) |
|
OPCU |
20A |
OPU |
|
BATTERY C/FAN |
15A |
Battery Cooling Fan Motor |
|
HEAD LAMP RH |
20A |
Head Lamp Module RH |
Refer to the following table for the relay type.
|
Relay Name |
Type |
|---|---|
|
BLOWER |
MINI |
|
BATTERY C/FAN |
H/C MICRO |
|
IG3 |
H/C MICRO |
|
FUEL PUMP |
H/C MICRO |
|
REAR HEATED |
H/C MICRO |
|
PTC HEATER1 |
H/C MICRO |
|
PTC HEATER2 |
H/C MICRO |

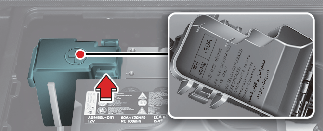

Engine compartment fuse panel (Battery terminal cover)
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
