Lighting control

The light switch has a headlight and a position lamp position.

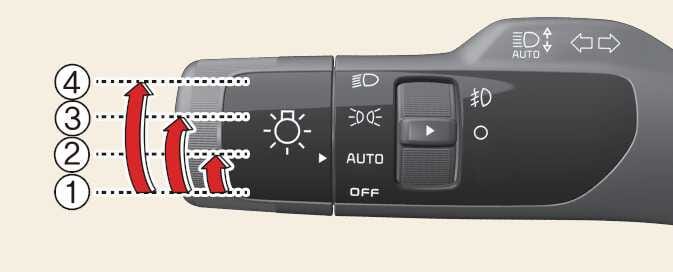

OMQ4A033027MX

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

  1. OFF position

  2. Auto light position

  3. Position Lamp & Taillight

  4. Headlightlamp position

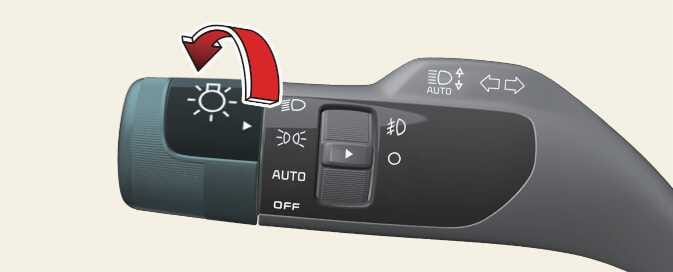

Position Lamp & Taillight

OMQ4A033028MX

When the light switch is in the lamp position, the front position lamp, taillight, and the license plate lamp will turn ON.

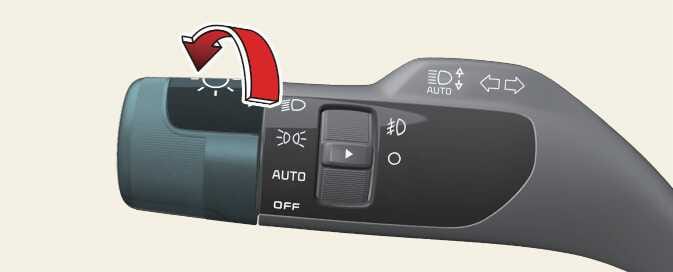

Headlight (Low Beam)

OMQ4A033029MX

When the light switch is in the headlight position, headlight (low beam), taillight and license plate lamp will turn ON.

TIP

The ENGINE START/STOP button must be in the ON position to turn on the headlights.

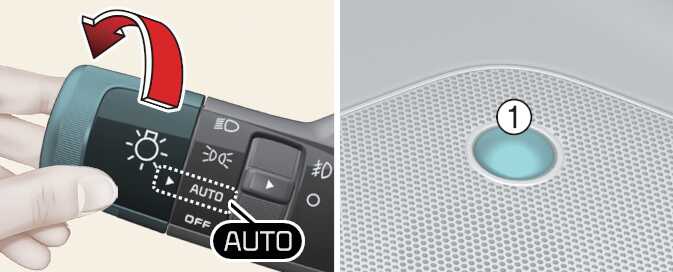

Auto light

OMQ4A033040MX_2

When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of ambient light.

WARNING

  • Never place anything over the sensor (1) located on the instrument panel as this will ensure better auto-light system control.

  • Don't clean the sensor using a window cleaner. The cleaner may leave a light film which could interfere with sensor operation.

  • If your vehicle has window tint or other types of metallic coating on the front windshield, the Auto light system may not work properly.
