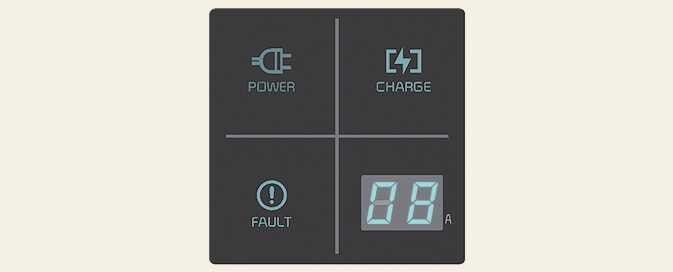

Charging status indicator lamp for portable charger

OCVQ011026L

Indicator

Details

POWER

On: Power on

CHARGE

On: Charging

Blink: Current limit due to high plug temperature or high internal temperature

FAULT

Blink: Charging interrupted

CHARGE LEVEL

12

12 A

10

10 A

08

8 A

06

6 A

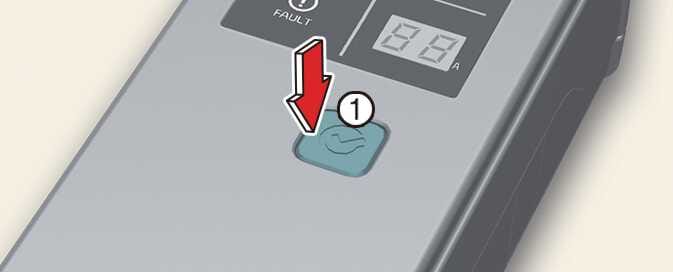

The charging current changes each time the button (1) is pressed, in the following sequence: 6 A > 8 A > 10 A > 12 A.If the button (1) is not pressed for 10 seconds, the indicator will stop blinking and the selected charging current will be confirmed.

Figure 1. Control box
OCVQ011021L
