Status/Diagnosis/Countermeasure
OCVQ011024

  • Charging connector plugged into vehicle (POWER Green ON)

  • Plug connected to an electric outlet (POWER Green ON)

While charging

OCVQ011025

  • Charge indicator (POWER Green ON/CHARGE Blue ON)

  • Charging current

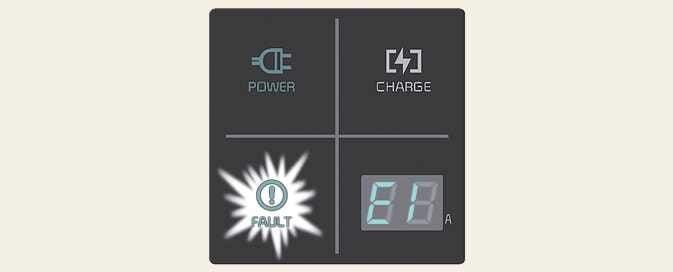

Before plugging charging connector into vehicle (POWER Green ON, FAULT Red blink)

OCVQ011027L

  • Abnormal temperature

  • ICCB (In-Cable Control Box) failure

Plugged into vehicle (POWER Green ON, FAULT Red Blink)

OCVQ011027L

  • Diagnostic device failure

  • Current leakage

  • Abnormal temperature

Leakage current failure (POWER Green ON, FAULT Red Blink)

OCVQ011028L

  • After disconnecting and reconnecting the power plug, press and release the button for 2 seconds or longer to clear the error.

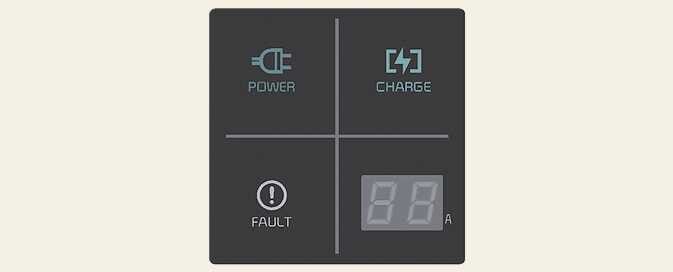

Power saving mode

OCVQ011029L

  • Charge level indicator is turned off if there is no status change for more than 1 minute.
