Aiming point

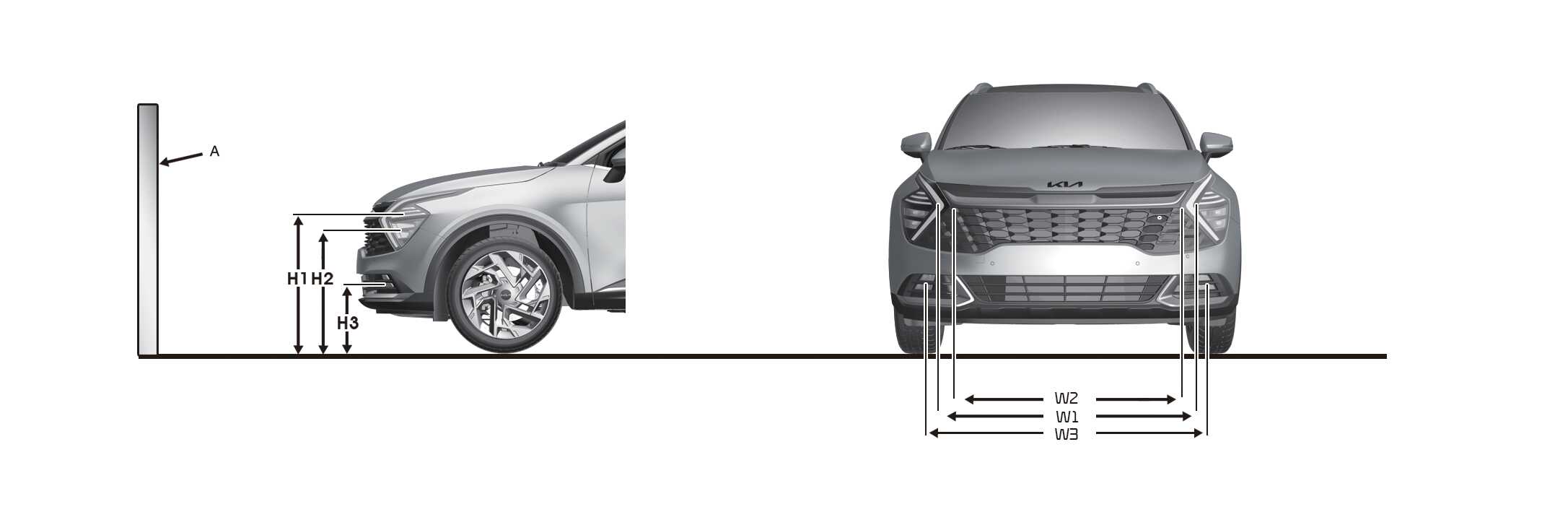

ONQ5061086L
A: Screen
|
Vehicle condition |
Head lamp (LED type) |
Front Fog lamp (LED type) (if equipped) |
|||||
|---|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
||||
|
Low/High beam |
Low/High beam |
||||||
|
H1 |
H2 |
W1 |
W2 |
H3 |
W3 |
||
|
without driver [mm (in)] |
Type A |
764.1 (30.1) |
713.6 (28.1) |
1,532 (60.3) |
1,546 (60.9) |
427 (16.8) |
1,380 (54.3) |
|
Type B |
764.1 (30.1) |
713.6 (28.1) |
1,532 (60.3) |
1,546 (60.9) |
402 (15.8) |
1,157 (45.6) |
|
|
with driver [mm (in)] |
Type A |
754.1 (29.7) |
703.6 (27.7) |
1,532 (60.3) |
1,546 (60.9) |
417 (16.4) |
1,380 (54.3) |
|
Type B |
754.1 (29.7) |
703.6 (27.7) |
1,532 (60.3) |
1,546 (60.9) |
392 (15.4) |
1,157 (45.6) |
|
