Front fog lamp

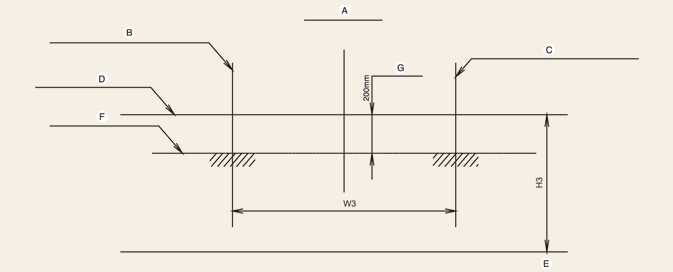

Figure 1. Based on 10m screen
ONQ5041296L

  • A: Vehicle axis

  • B: Vertical line of the left fog lamp bulb center

  • C: Vertical line of the right fog lamp bulb center

  • D: Horizontal line of fog lamp bulb center

  • E: Ground

  • F: Cut-Off line

  • G: Upper limit

Operation

  1. Turn the front fog lamp on without the driver aboard.

  2. The cut-off line should be projected in the allowable range (shaded region).
