Head lamp low beam (RHD Vehicle)

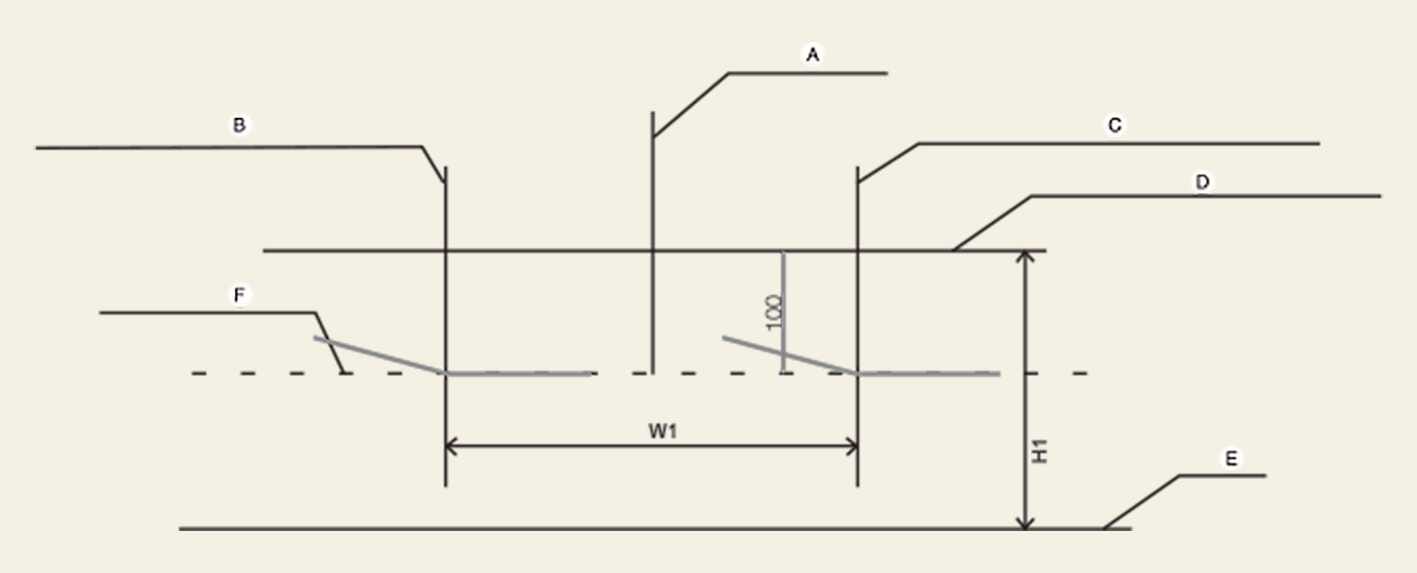

Figure 1. Based on 10m screen
OCV071056L

  • A: Vehicle axis

  • B: Vertical line of the left head lamp bulb center

  • C: Vertical line of the right head lamp bulb center

  • D: Horizontal line of head lamp bulb center

  • E: Ground

  • F: Cut-Off line

Operation

  1. Turn the low beam on without driver aboard.

  2. The cut-off line should be projected in the cut-off line shown in the picture.

  3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

  4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
