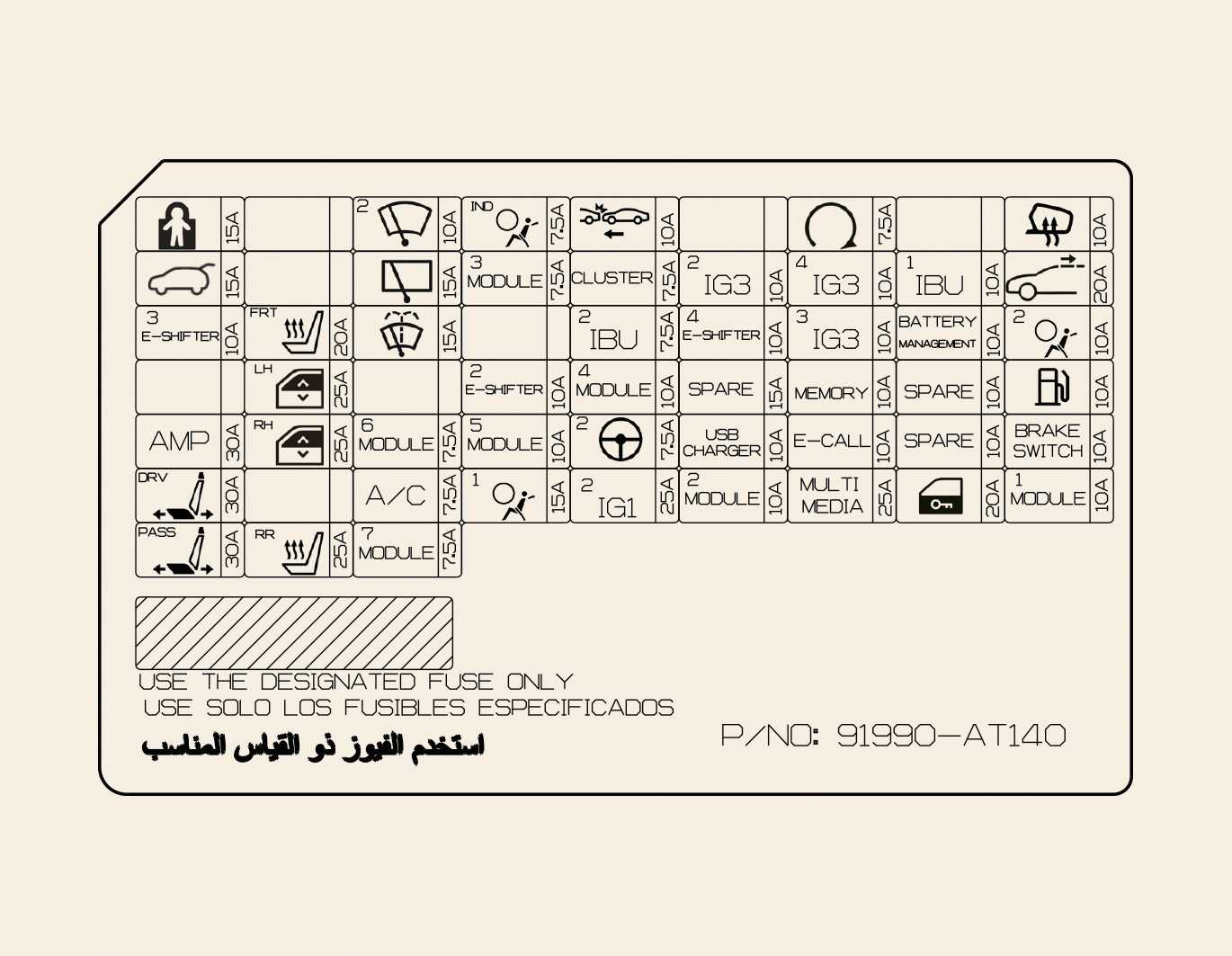

Driver's side fuse panel
ICU Junction Block
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
AMP |
 |
30 A |
AMP (Amplifier) |
|
P/SEAT DRV |
 |
30 A |
Driver Lumbar Support Switch, Driver Power Seat Switch, IMS (Integrated memory system) Control Module |
|
P/WINDOW LH |
 |
25 A |
REAR LH POWER WINDOW SWITCH/MODULE, DRIVER POWER WINDOW SWITCH/MODULE (LHD), PASSENGER POWER WINDOW SWITCH/MODULE (RHD) |
|
P/SEAT PASS |
 |
30 A |
Passenger Power Seat Switch |
|
S/HEATER (FRONT) |
 |
20 A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
S/HEATER (REAR) |
 |
25 A |
Rear Seat Warmer Control Module |
|
P/WINDOW RH |
 |
25 A |
REAR RH POWER WINDOW SWITCH/MODULE, DRIVER POWER WINDOW SWITCH/MODULE (RHD), PASSENGER POWER WINDOW SWITCH/MODULE (LHD) |
|
T/GATE |
 |
15 A |
Tail Gate Relay |
|
DR LOCK |
 |
20 A |
Center Door Lock/Unlock Relay, Dead Lock Relay |
|
MULTI MEDIA |
 |
25 A |
Audio/Navigation Head Unit |
|
E-CALL |
 |
10 A |
E-Call Unit |
|
MEMORY |
 |
10 A |
Instrument Cluster, Head Up Display, Mood lamp, Air Conditioner Control Module |
|
START |
 |
7.5 A |
Burglar Alarm Relay, HPCU, IBU |
|
E-SHIFTER3 |
 |
10 A |
SCU, Electronic Shift Dial |
|
MODULE6 |
 |
7.5 A |
IBU (INTEGRATED BODY CONTROL UNIT) |
|
MODULE3 |
 |
7.5 A |
Overhead Console, Multifunction Switch, Stop Lamp Switch |
|
A/BAG1 |
 |
15 A |
SRS (Supplemental Restraint System) Control Module |
|
WASHER |
 |
15 A |
Washer control lever |
|
MODULE1 |
 |
10 A |
KEY INTERLOCK, AIR CONDITIONER CONTROL MODULE, CHARGING LAMP (THE PLUG-IN HYBRID VEHICLE), HAZARD SWITCH, RAIN SENSOR, STEERING WHEEL REMOTE CONTROL |
|
IBU1 |
 |
10 A |
IBU(INTEGRATED BODY CONTROL UNIT), SPORT MODE SWITCH |
|
MODULE2 |
 |
10 A |
IBU, ADAS PARKING ECU, E-CALL, AUDIO/ NAVIGATION HEAD UNIT, Engine Room Junction Block (P/OUTLET Relay) |
|
A/BAG IND |
 |
7.5 A |
INSTRUMENT CLUSTER (SRS CONTROL MODULE) |
|
IBU2 |
 |
7.5 A |
IBU (Integrated Body Control Unit) |
|
MODULE4 |
 |
10 A |
IBU, ADAS PARKING ECU, VESS UNIT, FRONT VIEW CAMERA, CRASH PAD SWITCH, CENTER CONSOL, REAR CORNER RADAR |
|
A/CON |
 |
7.5 A |
AIR CONDITIONER CONTROL MODULE, Engine Room Junction Block (BLOWER, PTC RELAY), A/C COMPRESSOR |
|
A/BAG2 |
 |
10 A |
SRS (Supplemental Restraint System) Control Module |
|
CLUSTER |
 |
7.5 A |
INSTRUMENT CLUSTER, HEAD UP DISPLAY |
|
MODULE5 |
 |
10 A |
HEAD LAMP LEVELING DEVICE, AUDIO/ NAVIGATION HEAD UNIT, WIRELESS SMART PHONE CHARGING SYSTEM, E-CALL UNIT, AIR CONDITIONER CONTROL MODULE, OVERHEAD CONSOLE LAMP, ELECTRIC CHROMIC MIRROR, AMP(AMPLIFIER),SEAT WARMER CONTROL MODULE |
|
MODULE7 |
 |
7.5 A |
ADAS PARKING ECU, AC INVERTER, COOLING FAN MOTOR, SEAT WARMER CONTROL MODULE |
|
BRAKE SWITCH |
 |
10 A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
|
MDPS2 |
 |
7.5 A |
MDPS (Motor Driven Power Steering) Unit |
|
SUNROOF |
 |
20 A |
SUNROOF UNIT |
|
HEATED MIRROR |
 |
10 A |
Outside Heated Mirror |
|
IG3 2 |
 |
10 A |
BATTERY MANAGEMENT SYSTEM |
|
IG3 3 |
 |
10 A |
ON BOARD CHARGER UNIT, HPCU, Engine Room Junction Block (BATTERY C/FAN Relay), A/C COMPRESSOR |
|
IG3 4 |
 |
10 A |
AUDIO/ NAVIGATION HEAD UNIT, CHARGING IND, INSTRUMENT CLUSTER, AIR CONDITIONER CONTROL MODULE, HV PTC HEATER UNIT |
|
CHILD LOCK |
 |
15 A |
Electronic child safety lock system |
|
FRT WIPER2 |
 |
10 A |
Front Wiper Motor |
|
FCA |
 |
10 A |
Front Radar |
|
RR WIPER |
 |
15 A |
Rear Wiper Relay, Rear Wiper Motor |
|
E-SHIFTER4 |
 |
10 A |
SCU, Electronic Shift Dial |
|
BMS |
 |
10 A |
Battery Management System |
|
USB CHARGER |
 |
10 A |
USB CHARGER (FRONT TRAY/ SEAT DRV/ PASS) |
|
IG1 2 |
 |
25 A |
Engine Room Junction Block (PCB BLOCK FUSE - IEB4, ECU3, DCT3, EWP3) |
|
FUEL FILLER DOOR |
 |
10 A |
Opening the fuel filler door |
|
E-SHIFTER2 |
 |
10 A |
SCU, Electronic Shift Dial |
