Engine compartment fuse panel

OSG2PH072023L

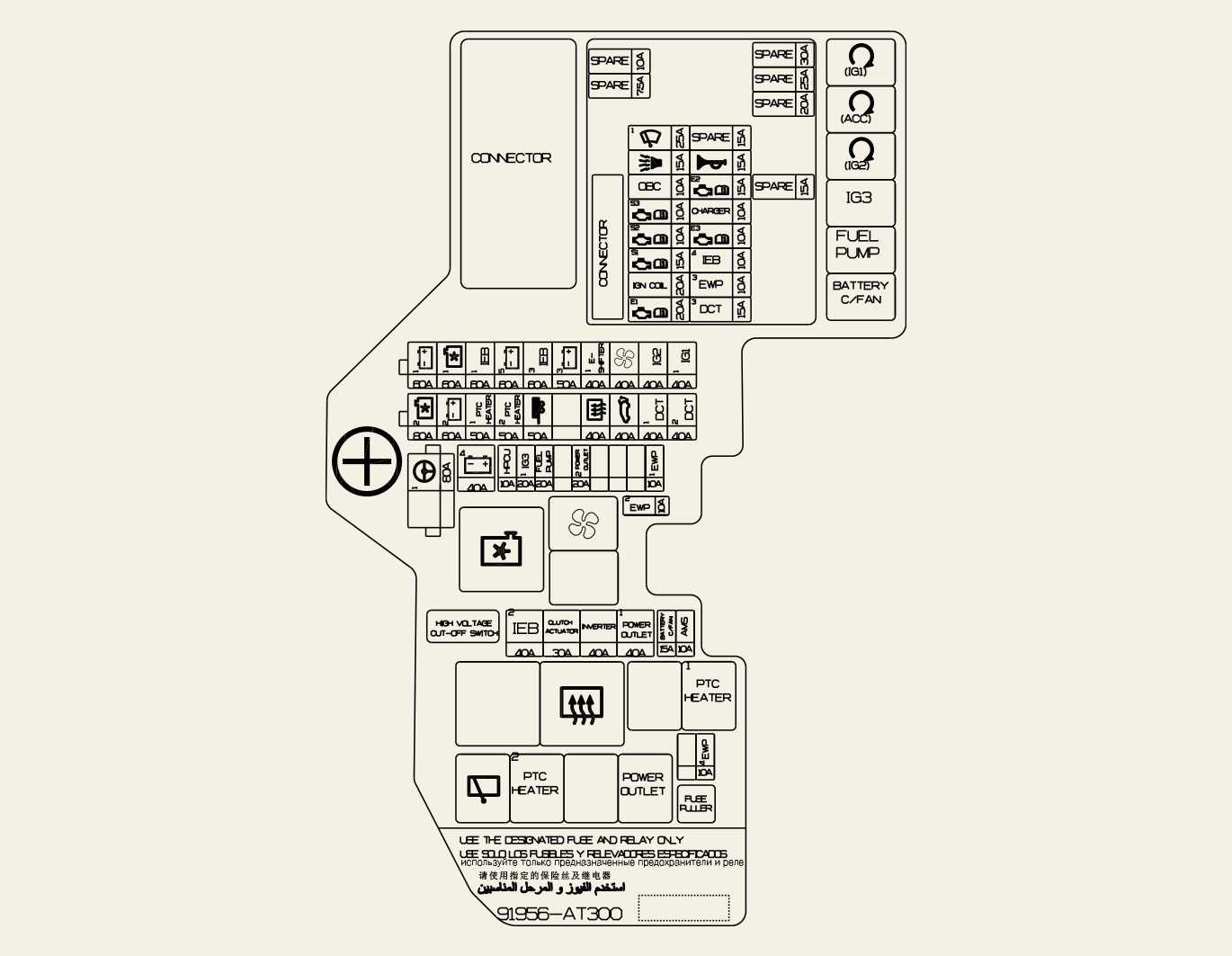

OSG2PH072015L

Engine Room Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

MULTI FUSE

C/FAN2

80 A

Cooling Fan Motor

MULTI FUSE

PTC HEATER1

50 A

PTC HEATER #1 RELAY

B+2

60 A

ICU JUNCTION BLOCK (IPS)

MULTI FUSE

MDPS 1

80 A

MDPS (Motor Driven Power Steering) Unit

REAR HEATED

40 A

Engine Room Junction Block (Rear Heated Relay)

MULTI FUSE

POWER TAILGATE

40 A

Power Tail Gate Unit

E-SHIFTER1

40 A

SCU

MULTI FUSE

B+3

50 A

ICU JUNCTION BLOCK (FUSE - CHILD LOCK , E-SHIFTER3, P/WDW LH, P/WDW RH, T/GATE OPEN, AMP, P/SEAT DRV, P/SEAT PASS, S/HEATER FRT, S/HEATER RR), EWP2

MULTI FUSE

TRAILER

50 A

Trailer Module

FUEL PUMP

20 A

Engine Room Junction Block (Fuel Pump Relay)

MULTI FUSE

BLOWER

40 A

Engine Room Junction Block (Blower Relay)

MULTI FUSE

B+4

40 A

ICU JUNCTION BLOCK (FUSE - MULTIMEDIA, E-CALL, A/BAG2, BRAKE SWITCH, MODULE1, FUEL LID, IBU1, SUNROOF, BATTERY MANAGEMENT, DOOR LOCK

B+1

60 A

ICU JUNCTION BLOCK (IPS)

AMS

10 A

BATTERY SENSOR(PHEV)

FUSE

IEB2

40 A

Integrated Electric Brake Unit

IEB3

60 A

Integrated Electric Brake Unit

MULTI FUSE

IEB1

60 A

Integrated Electric Brake Unit

IG3 1

20 A

IGNITION3 RELAY

FUSE

BATTERY C/FAN

15 A

Battery Cooling Fan

HPCU

10 A

Hybrid Power Control Unit

EWP2

10 A

BATTERY ELECTRONIC WATER PUMP

FUSE

POWER OUTLET2

20 A

Front Power Outlet

EWP1

10 A

Engine Electronic Water Pump

MULTI FUSE

PTC HEATER2

50 A

PTC HEATER #2 RELAY

DCT1

40 A

DUAL CLUTCH TRANSMISSION

DCT2

40 A

DUAL CLUTCH TRANSMISSION

C/FAN1

60 A

COOLING FAN MOTOR

B+5

60 A

Engine Room PCB Junction Block

IG2

40 A

ICU JUNCTION BLOCK (FUSE - WASHER, A/C, MODULE6, MODULE7, WIPER RR)

IG1 1

40 A

ICU JUNCTION BLOCK (FUSE -MODULE2, USB CHARGER, A/BAG1, IBU2, MDPS2, CLUSTER, MODULE3, A/BAG IND, MODULE4, MODULE5, E-SHIFTER2, FCA, ING1 2)

FUSE

CLUTCH ACTRUATOR

30 A

ENGINE CLUTCH ACTUATOR (HPCU)

INVERTER

40 A

AC INVERTER

POWER OUTLET1

40 A

Front Power Outlet

EWP4

10 A

Engine Electronic Water Pump

PCB Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

SENSOR1

15 A

Oxygen Sensor (Up/Down)

ECU2

15 A

ECM (ENGINE CONTROL MODULE)

SENSOR3

10 A

FUEL PUMP RELAY

SENSOR2

10 A

OIL CONTROL VALVE, PURGE CONTROL SOLENOID VALVE, VARIABLE OIL PUMP VALVE CONTROL, COOLING FAN MOTOR RELAY,FUEL TANK ISOLATION VALVE(PHEV)

FRT WIPER1

25 A

Front Wiper Motor

ECU 3

10 A

ECM (ENGINE CONTROL MODULE)

IEB 4

10 A

Integrated Electric Brake Unit

EWP 3

10 A

Engine Electronic Water Pump

OBC

10 A

ON BOARD CHARGER UNIT(PHEV)

ECU1

20 A

ECM (ENGINE CONTROL MODULE)

B/ALARM HORN

15 A

BURGLAR ALARM HORN RELAY

IGN COIL

20 A

Ignition Coil #1/#2/#3/#4

CHARGER

10 A

CHARGER LOCK/UNLOCK RELAY(PHEV)

DCT3

15 A

DUAL CLUTCH TRANSMISSION

Relay

Refer to the following table for the relay type.

Relay Name

Symbol

TYPE

Fuel Pump Relay

MICRO

PTC Heater1 Relay

MICRO

Blower Relay

MICRO

Rear Heated Relay

MINI

IG3 Relay

MICRO

Battery Cooling Fan Relay (HEV)

MICRO

PDM (IG1) RELAY

MICRO

PDM (ACC) RELAY

MICRO

PDM (IG2) RELAY

MICRO

COOLING FAN MOTOR RELAY

MICRO

PTC HEATER2 RELAY

MICRO

POWER OUTLET

MICRO
