Engine compartment

Figure 1. Smartstream G2.5 T-GDi

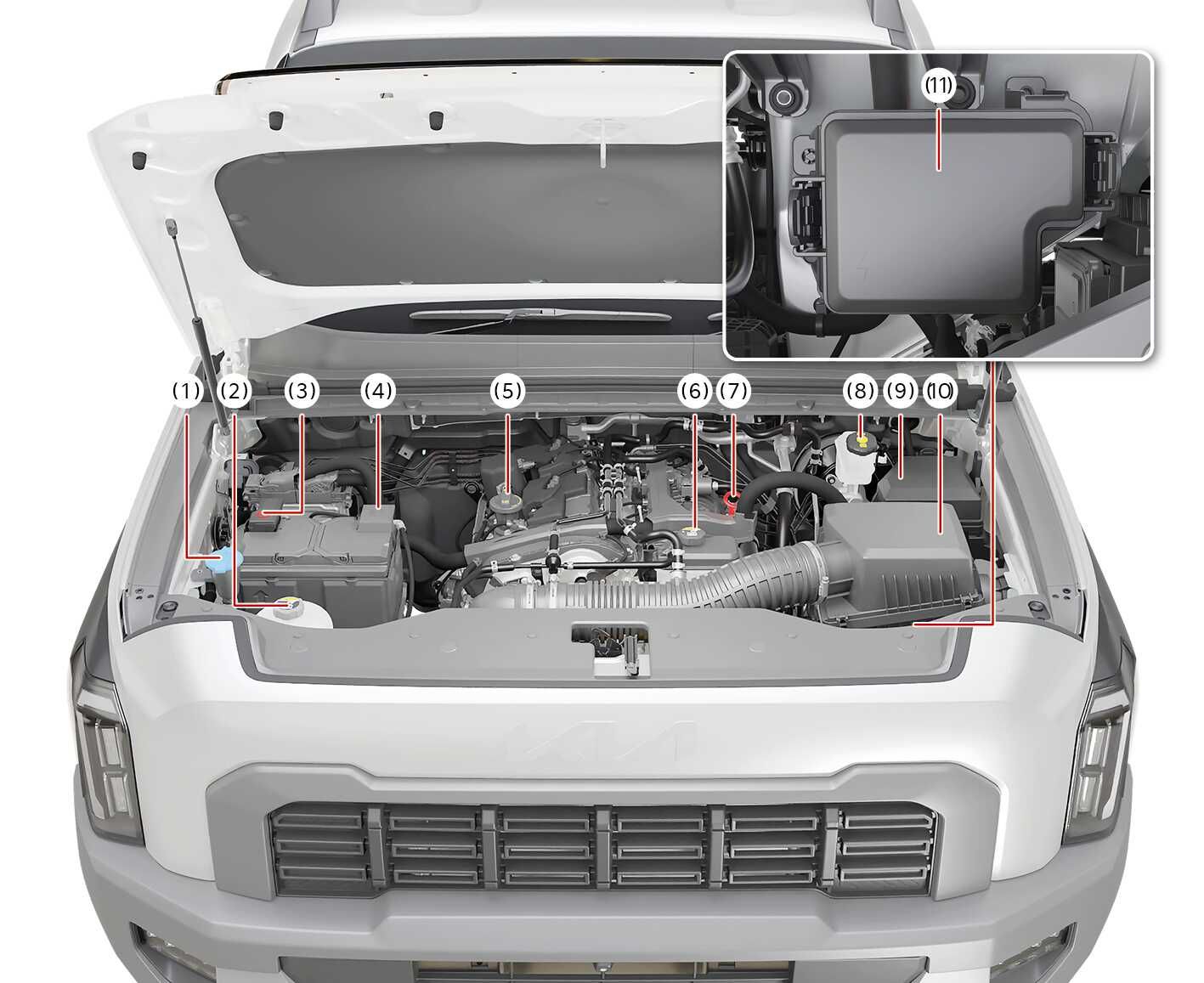

2026 Kia Tasman engine compartment image. Labels identify the washer fluid (1), coolant (2, 6), battery (3, 4), oil cap (5), dipstick (7), brake fluid (8), fuse boxes (9, 11), and air cleaner (10). This explains the layout of engine maintenance points.
N_TK25A005_1

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

  1. Windshield washer fluid reservoir - Washer fluid

  2. Engine coolant reservoir - Coolant

  3. Positive battery terminal - Battery, Jump-starting the vehicle

  4. Negative battery terminal - Battery, Jump-starting the vehicle

  5. Engine oil filler cap - Replenishing engine oil

  6. Intercooler coolant reservoir - Coolant

  7. Engine oil dipstick - Checking engine oil level

  8. Brake fluid reservoir - Brake fluid

  9. Fuse box- Fuses

  10. Air cleaner - Air cleaner filter

  11. Fuse box - Fuses

Figure 2. Smartstream D2.2

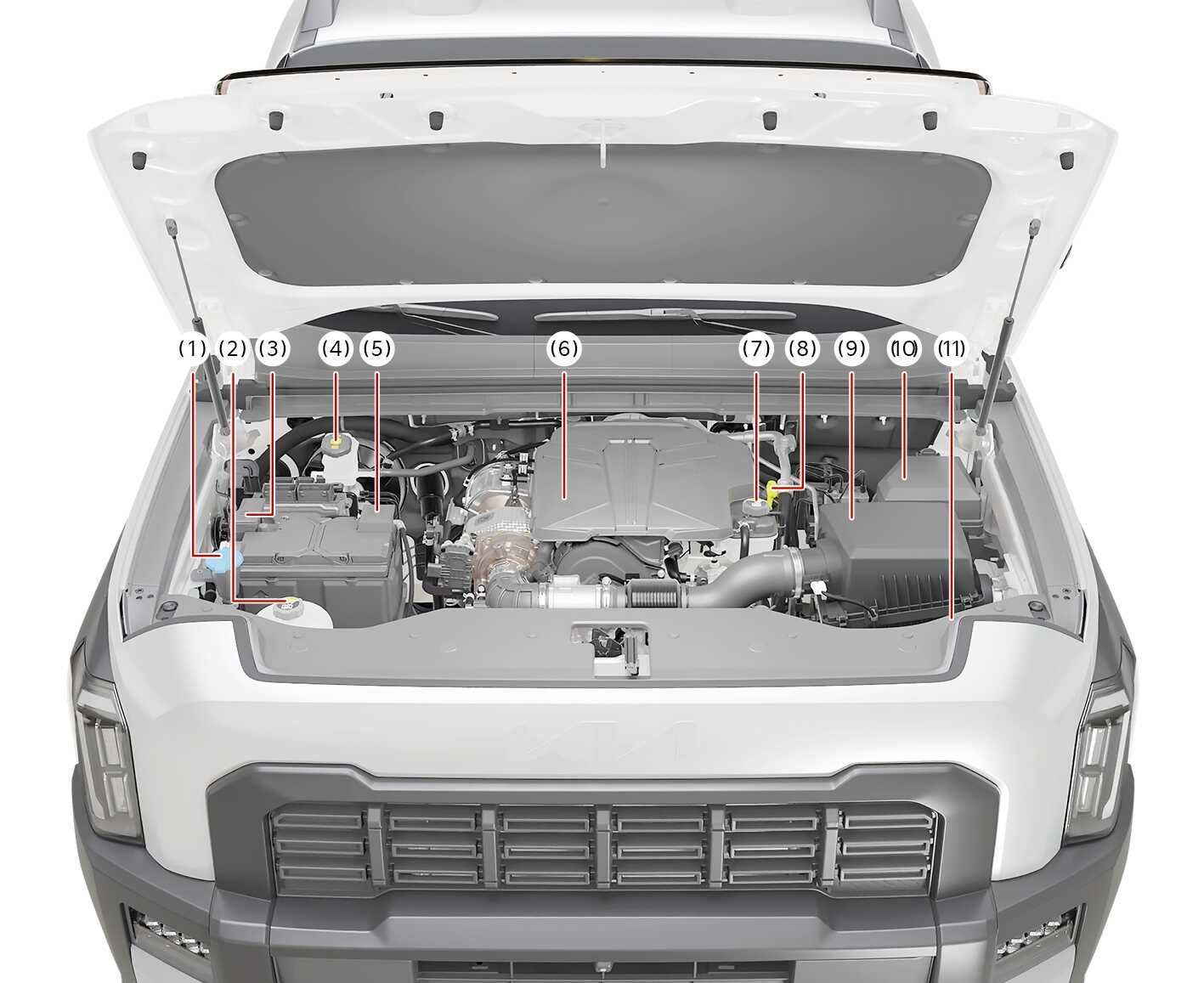

2026 Kia Tasman Smartstream D2.2 engine compartment image. Numbered callouts (1) through (11) indicate the locations of maintenance components, including the washer fluid reservoir (1), coolant reservoir (2), battery terminals (3, 5), brake fluid reservoir (4), engine oil filler cap (6), and dipstick (7). Explains the layout of the engine compartment for maintenance.
N_TK25A004_E

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

  1. Windshield washer fluid reservoir - Washer fluid

  2. Engine coolant reservoir - Coolant

  3. Positive battery terminal - Battery, Jump-starting the vehicle

  4. Brake fluid reservoir - Brake fluid

  5. Negative battery terminal - Battery, Jump-starting the vehicle

  6. Engine oil filler cap - Replenishing engine oil

  7. Intercooler coolant reservoir - Coolant

  8. Engine oil dipstick - Checking engine oil level

  9. Air cleaner - Air cleaner filter

  10. Fuse box - Fuses

  11. Fuse box - Fuses
