Air conditioner compressor label/refrigerant label

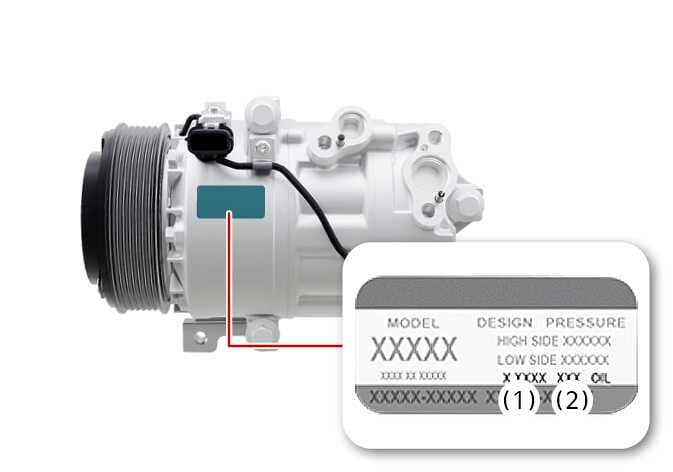

2026 Kia Tasman air conditioner compressor label image. The compressor is shown with the label area highlighted in teal. A red line leads to a detailed view of the label, where callout (1) indicates the refrigerant type and (2) indicates the refrigerant oil type. This explains the function of checking the compressor's specifications.
N_TK25H003_1_E
2026 Kia Tasman refrigerant label location image. The hood is open, and a red line points to the underside of the hood. A callout box displays the label highlighted in teal. This explains the location of the air conditioner refrigerant label.
N_TK25H005_1_E

  1. Refrigerant

  2. Refrigerant oil

A compressor label informs you the type of compressor your vehicle is equipped with such as model, supplier part number, production number, refrigerant (1) and refrigerant oil (2).

The refrigerant label is located as shown.
