Charging types

  • Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the high voltage battery may vary.

  • Actual charger image and charging method may vary in accordance with the charger manufacturer.

Category

Charging Inlet (Vehicle)

Charging Connector

Charging Outlet

Charging Method

Charging Time

AC Charger

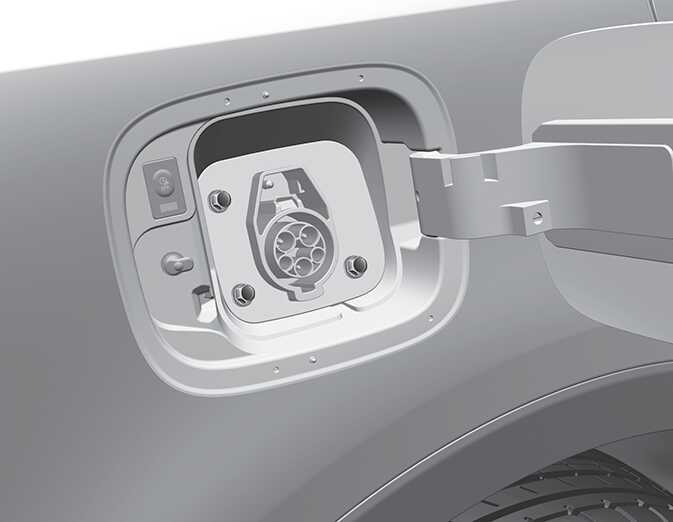

OMQ4Q011001N

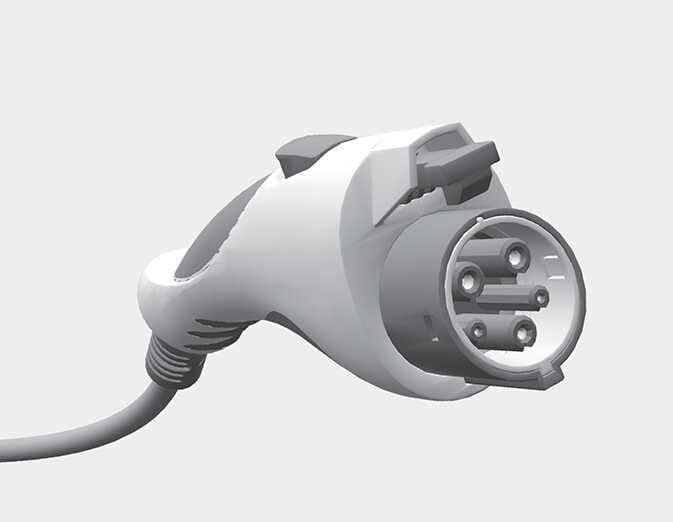

OMQ4Q011002N

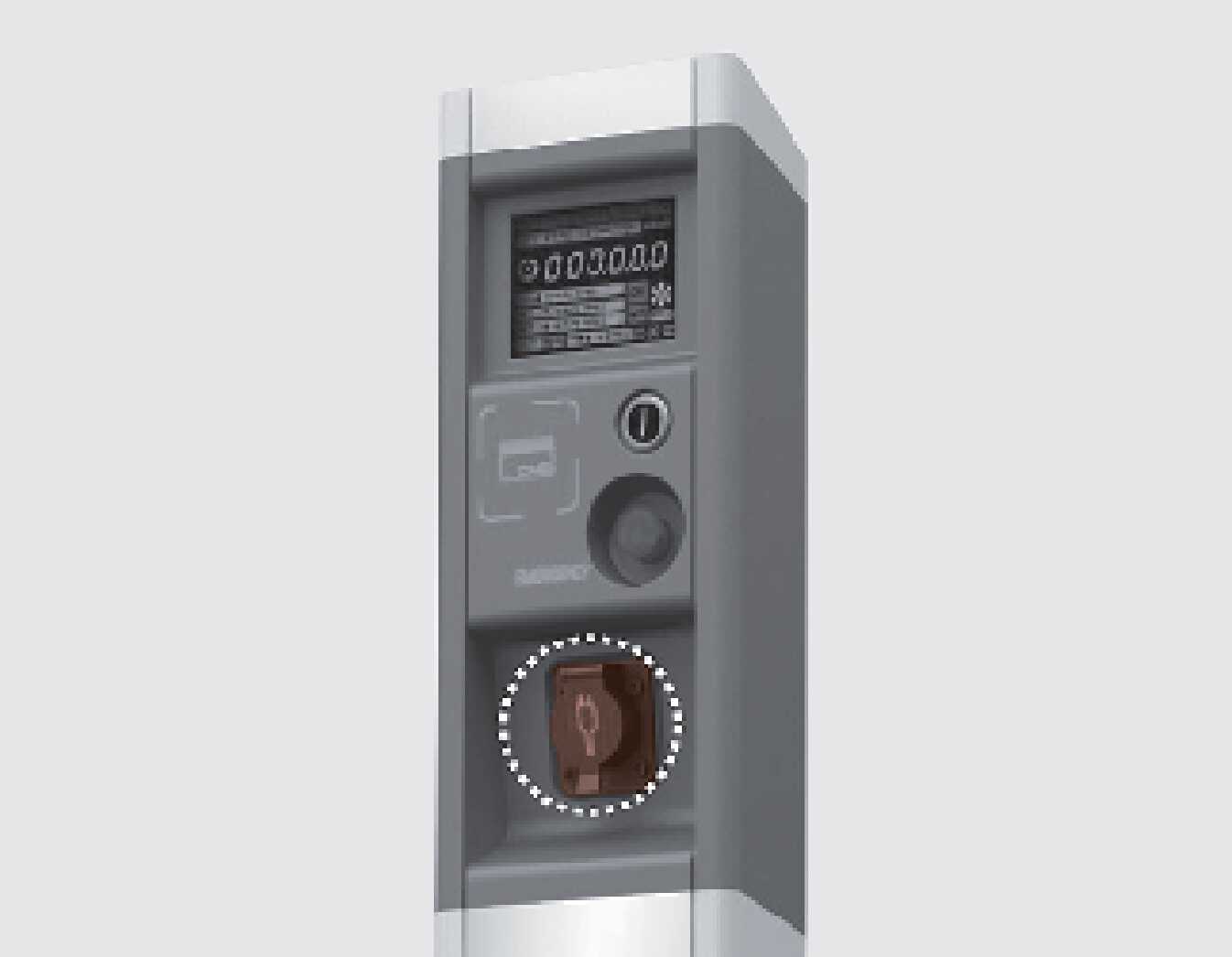

OBDCPQ019003RE

AC charger installed in homes or public charging stations

Approximately 3 hours 25 minutes (to fully charge the plug-in hybrid, 100%)

Trickle Charger
OMQ4Q011001N0
OMQ4Q011002N0
OAEEQ016024

Household current

For charging at home. The included Trickle charger takes about 9 hours at room temperature (Can be charged to 100%.).
TIP

Type 3R enclosure satisfies the requirements of UL 50E standard when the charging connector is connected to the vehicle side charging inlet. An additional Type 3R enclosure should be provided in the end installation of the vehicle side charging inlet. The “Type 3R” marking can be found on the charging inlet.

What is type 3R?: Performance requirement for enclosures intended for outdoor use that provides a degree of protection against falling dirt, rain, sleet, and/or snow.

CAUTION

  • Risk of Electric Shock, Do Not Disconnect Under Load.

  • Suitable For Use On A Circuit Capable Of Delivering Not More Than 5000 rms Symmetrical Amperes, 250 Volts Maximum.
