Plug-in hybrid mode indicator (Plug-in hybrid vehicle)

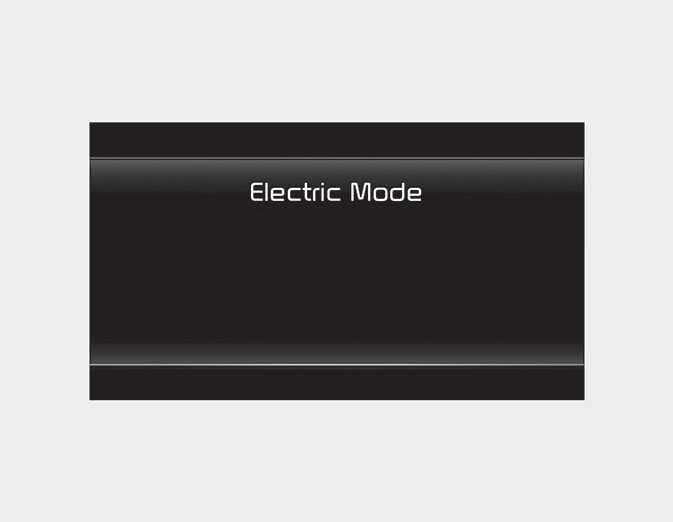

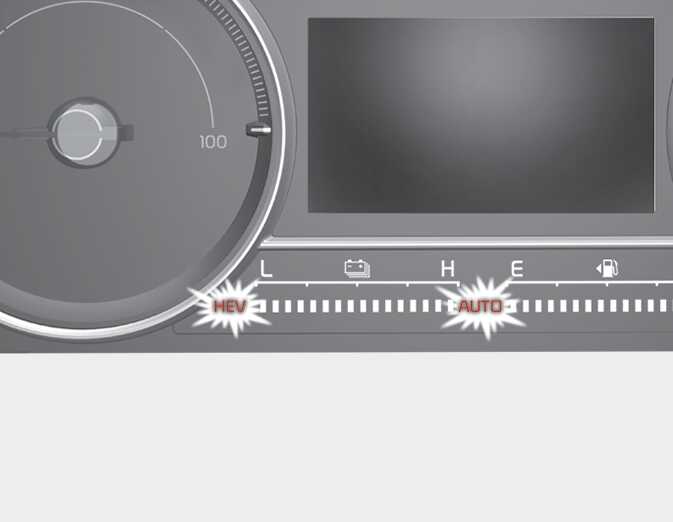

  • CD (Charge Depleting, Electric) mode: The high-voltage (hybrid) battery is used to drive the vehicle.

    OMQ4PH050353L

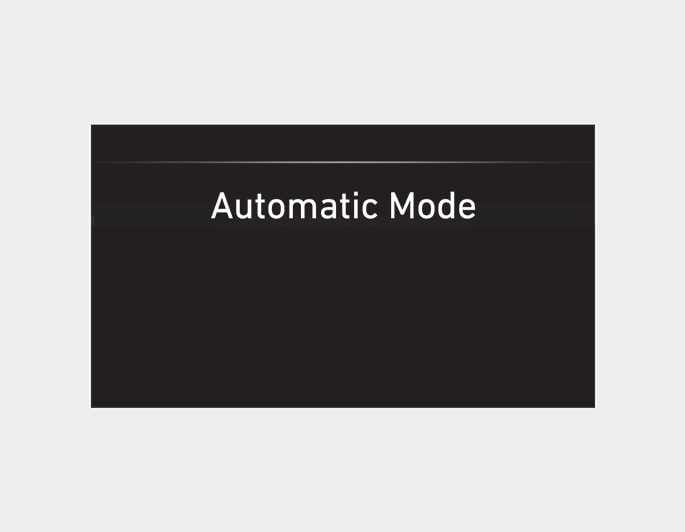

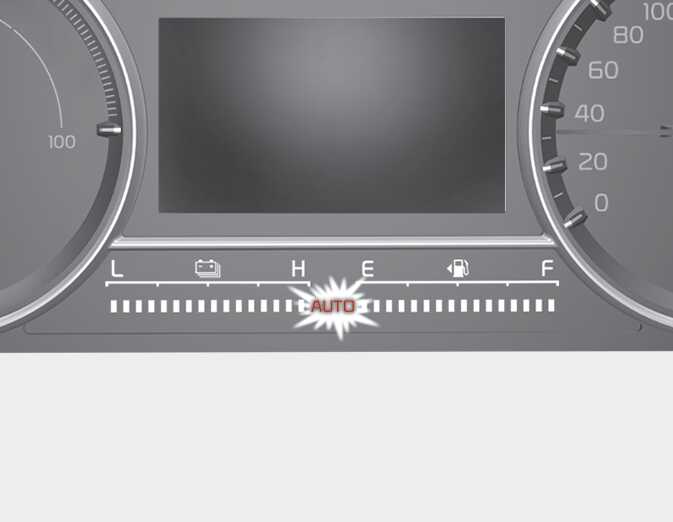

  • AUTO mode: The AUTO mode will automatically select from either from Electric (CD) mode or Hybrid (CS) mode by the system according to the driving condition.

    OMQ4PHQ010045L

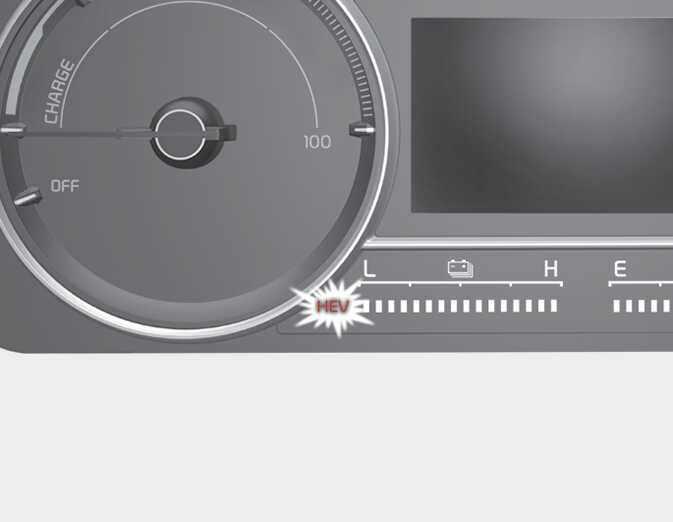

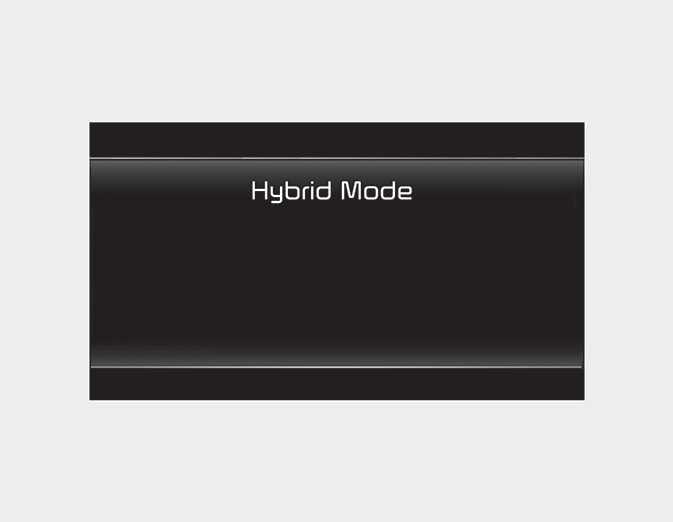

  • CS (Charge Sustaining, Hybrid) mode: The high-voltage (hybrid) battery and gasoline engine is used to drive the vehicle.

    OMQ4PHQ010046L0
OMQ4PH050364L
OMQ4PH050360L
OMQ4PH050366L

A corresponding message is displayed to indicate the selected mode.
