How to use the Smart Liftgate with Auto Open

The liftgate can be opened with no-touch activation satisfying all the conditions below.

  • After 15 seconds when all doors are closed and locked

  • Positioned in the detecting area for more than 3 seconds.

NOTE

The Smart Liftgate with Auto Open does not operate when:

  • The smart key is detected within 15 seconds after the doors are closed and locked, and is continuously detected.

  • The smart key is detected within 15 seconds after the doors are closed and locked, and 60 in (1.5 m) from the front door handles. (for vehicles equipped with Welcome Light)

  • A door is not locked or closed.

  • The smart key is in the vehicle.

  1. Setting

    To activate the Smart Liftgate with Auto Open, go to User Settings Mode and select Smart Liftgate on the LCD display.

    For more details, refer to LCD display.

  2. Detect and Alert

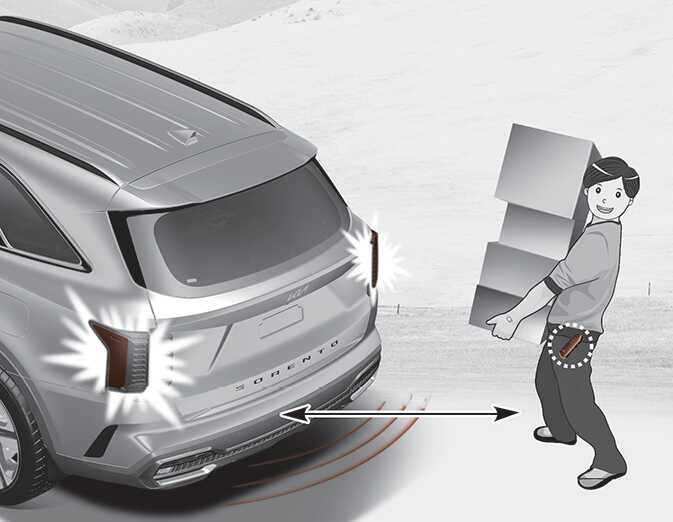

    OMQ4AH041013

    If you are positioned in the detecting area (20~40 in [50~100 cm] behind the vehicle) carrying a smart key, the hazard warning lights will blink and chime will sound to alert you the smart key has been detected and the liftgate will open.

    NOTE

    Do not approach the detecting area if you do not want the liftgate to open. If you have unintentionally entered the detecting area and the hazard warning lights and chime starts to operate, leave the detecting area with the smart key. The liftgate will stay closed.

  3. Automatic opening

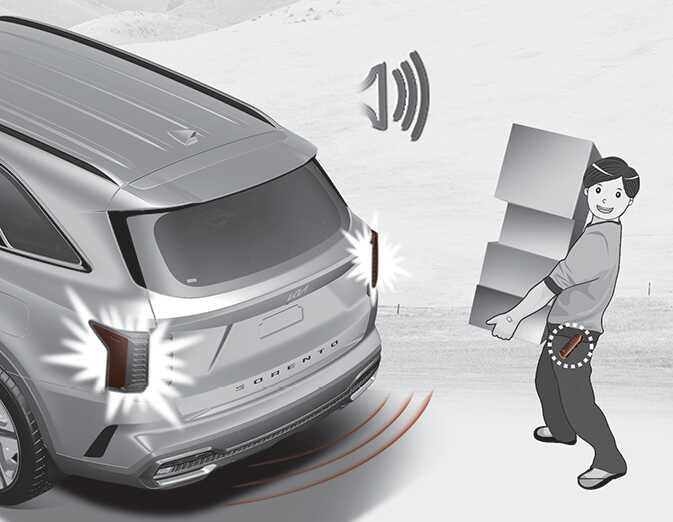

    OMQ4AH041014

    The hazard warning lights will blink and chime will sound 6 times and then the liftgate will open.

    WARNING

    • Make sure you close the liftgate before driving your vehicle.

    • Make sure there are no people or objects around the liftgate before opening or closing the liftgate.

    • Make sure objects in the liftgate do not come out when opening the liftgate on a slope. It may cause serious injury.

    • Make sure to deactivate the Smart Liftgate with Auto Open when washing your vehicle. Otherwise, the liftgate may open inadvertently.

    • The key should be kept out of reach of children. Children may inadvertently open the Smart Liftgate with Auto Open while playing around the rear area of the vehicle.

    CAUTION

    Liftgate lift

    Make certain that you close the liftgate before driving your vehicle. Possible damage may occur to the liftgate gas lifters and attached hardware if the liftgate is not closed prior to driving.
