Outside temperature gauge

Figure 1. Type A
OMQ4AH040117

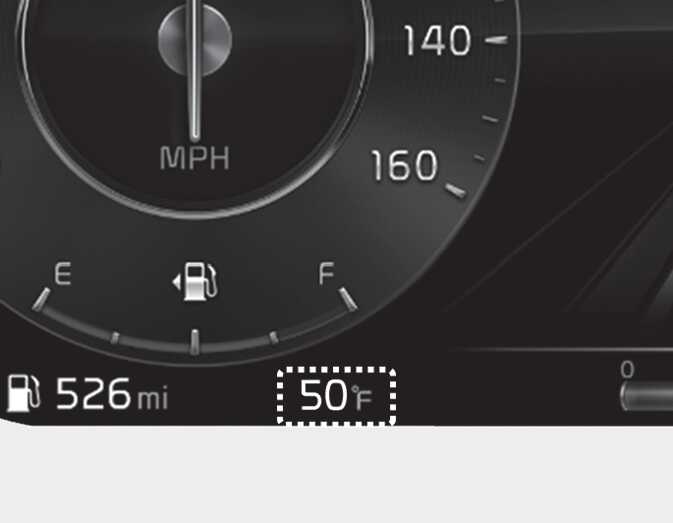

Figure 2. Type B
ODL3A040113

This gauge indicates the current outside air temperatures by 1 °F (1 °C).

  • Temperature range: -40 °F~140 °F (-40 °C~60 °C)

The outside temperature on the display may not change immediately like a general thermometer to prevent the driver from being inattentive.

To change the temperature unit (from °C to °F or from °F to °C)

The temperature unit can be changed by using the "User Settings" mode of the LCD Display.

For more details, refer to LCD display.
