Automatic transmission shift indicator in manual shift mode

In the Manual shift mode, this indicator informs which gear is desired while driving to save fuel.

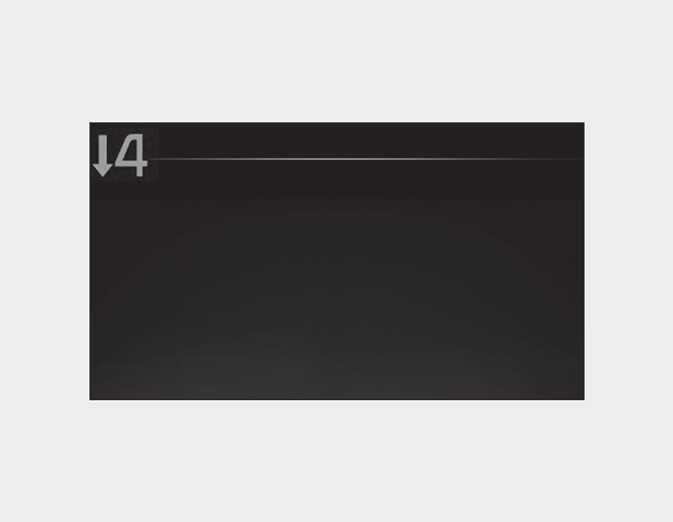

Figure 1. Type A
OMQ4040494L

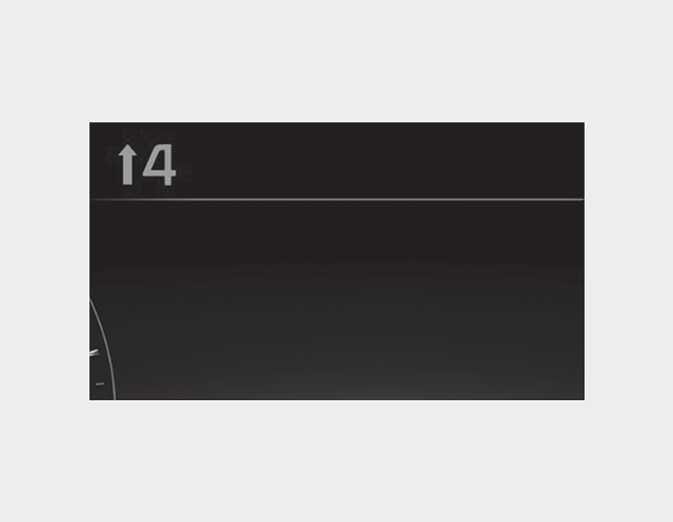

Figure 2. Type B
OMQ4040493L

  • Shifting up: ▲2, ▲3, ▲4, ▲5, ▲6

  • Shifting down: ▼1, ▼2, ▼3, ▼4, ▼5

For example

  • ▲3: Indicates that shifting up to the 3rd gear is desired (currently the shift dial SBW is in the 2nd or 1st gear).

  • ▼3: Indicates that shifting down to the 3rd gear is desired (currently the shift dial SBW is in the 4th, 5th or 6th gear).

When the system is not working properly, the indicator is not displayed.
