Trip information (trip computer)

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

NOTE

Some driving information stored in the trip computer resets if the battery is disconnected.

Trip Modes

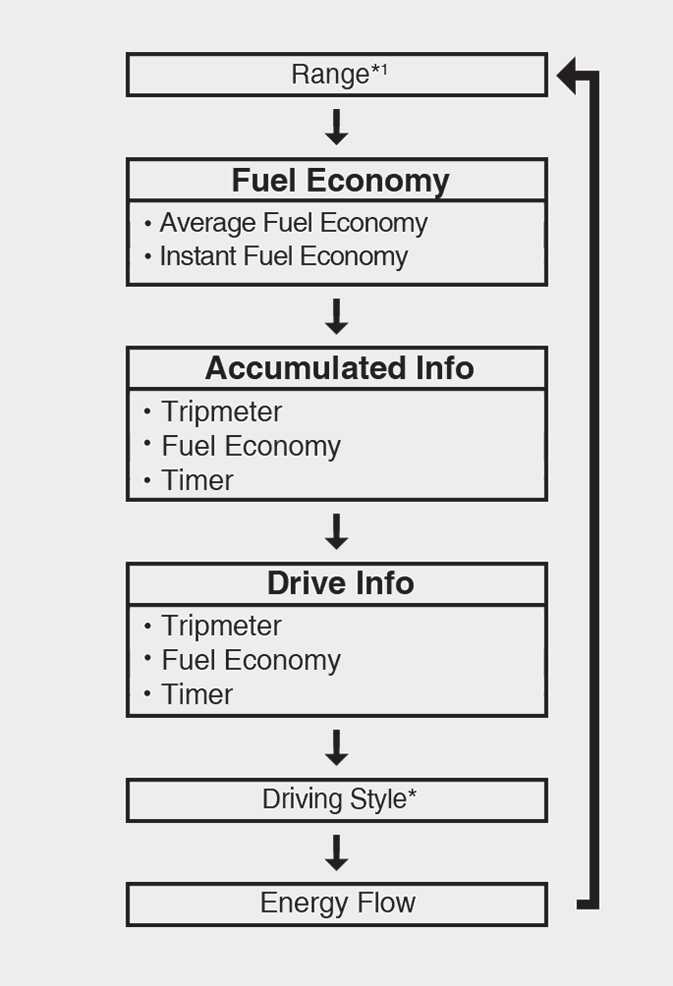

Figure 1. Type A
OMQ4PH041634L

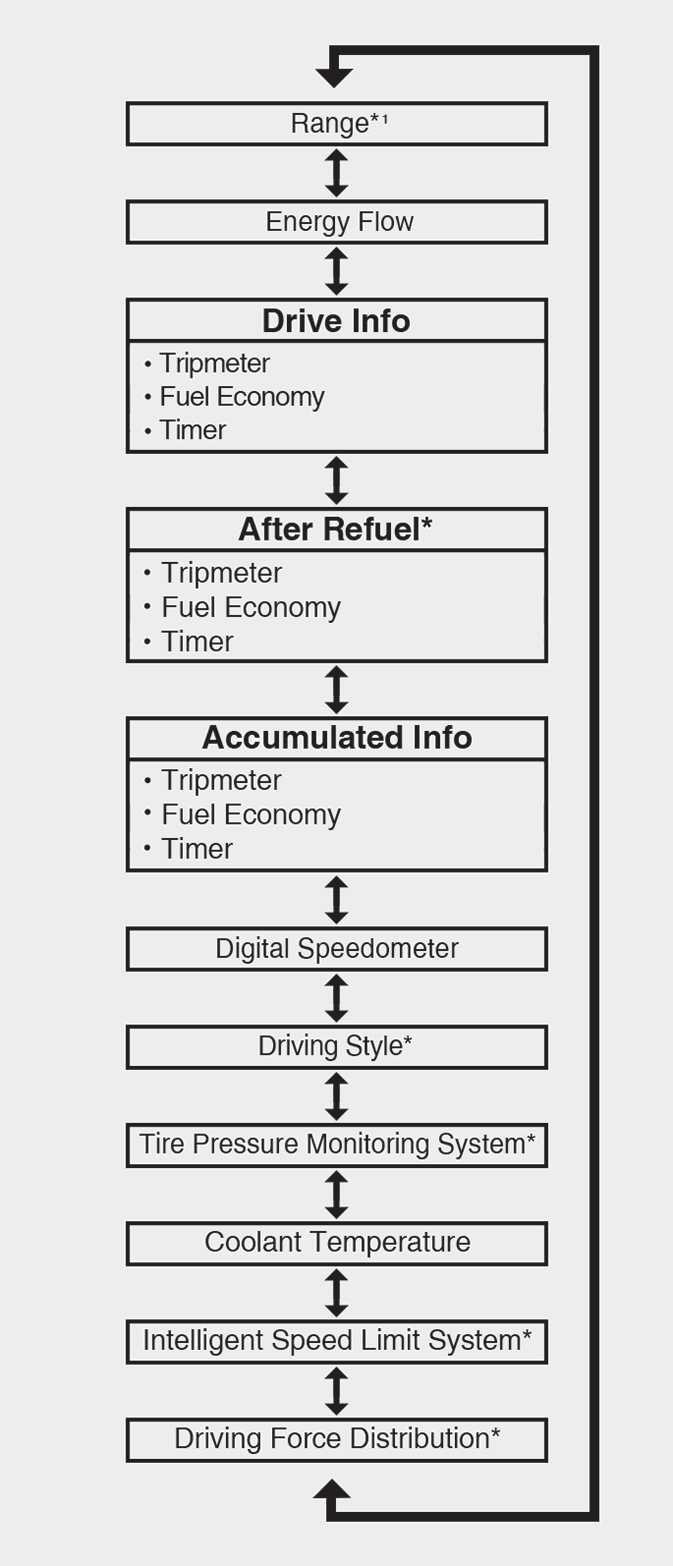

Figure 2. Type B
OMQ4PH041635L

*1: For Plug-in Hybrid vehicle

: if equipped

To change the trip mode, toggle the switch ( / ) on the steering wheel.

Fuel economy

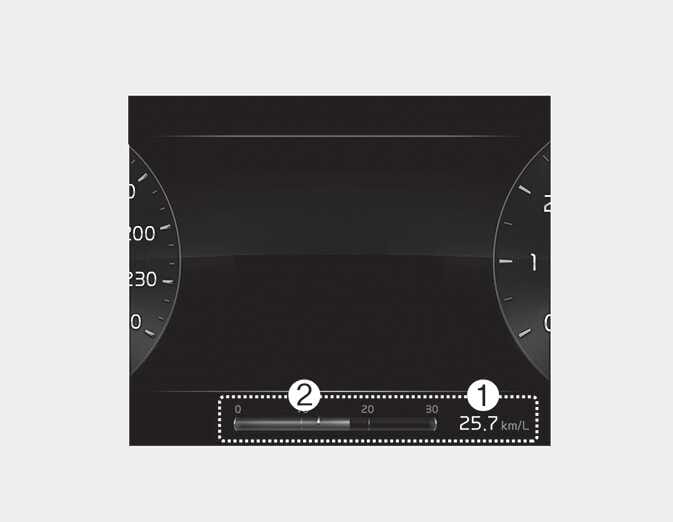

This information is always displayed at the bottom center of the Full LCD cluster.

Average Fuel Economy (1)
OKA4040530

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy resets.

    • Fuel economy range: 0 ~ 99.9 mpg or km/L, L/100 km

NOTE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 0.03 mi (50 m) since the ENGINE START/STOP button is turned to ON.

Instant Fuel Economy (2)

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 6.2 mph (10 km/h).

    • Fuel economy range:

      0.0~30 km/L, L/100 km or 0.0~50.0 mpg

Accumulated driving information mode

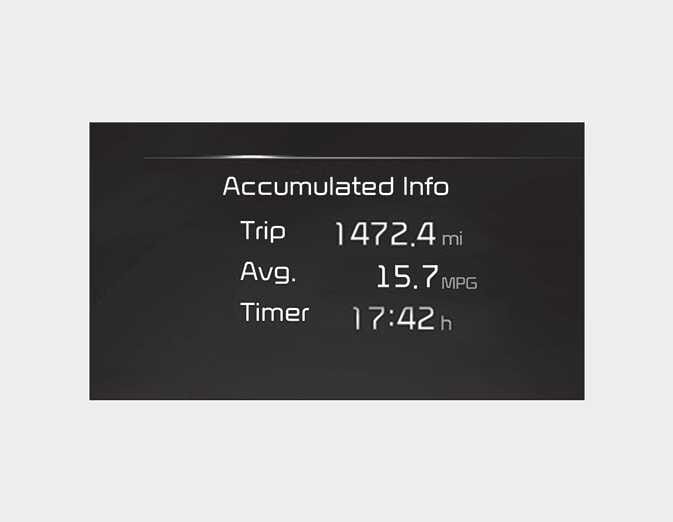

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

OMQ4AH040138

  • Accumulated information is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Drive info display

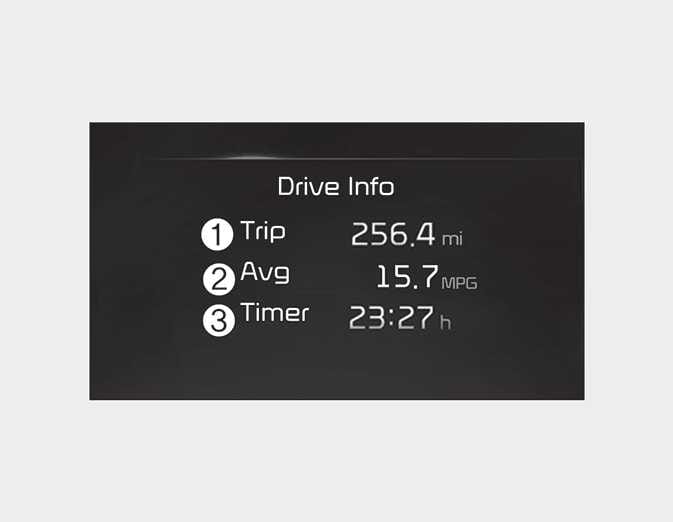

This display shows the trip distance (1), the average fuel efficiency (2), and the total driving time (3) information once per one ignition cycle.

OMQ4AH0401390

  • Fuel efficiency is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • The information will automatically reset when the driver's door is opened after the vehicle is turned off, or approximately 3 minutes have passed after the vehicle is turned off.

  • If you press "OK" button for more than approximately 1 second after the Driving Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTE

The vehicle must be driven for a minimum of 0.19 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.

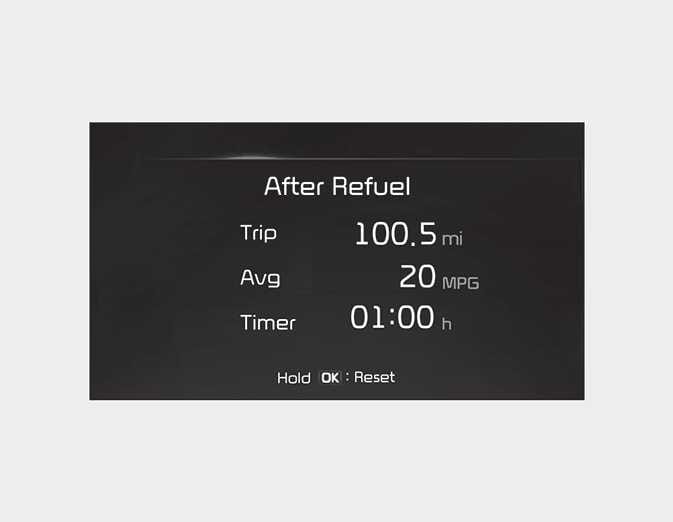

Information since refueling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

OMQ4A041560N

  • Information since refueling is calculated after the vehicle has run for more than approximately 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the information since refueling is displayed, the information will be reset.

  • When driving after refueling, the information will be automatically reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTE

The vehicle must be driven for a minimum of 0.19 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.

Range (Plug-in hybrid vehicle)

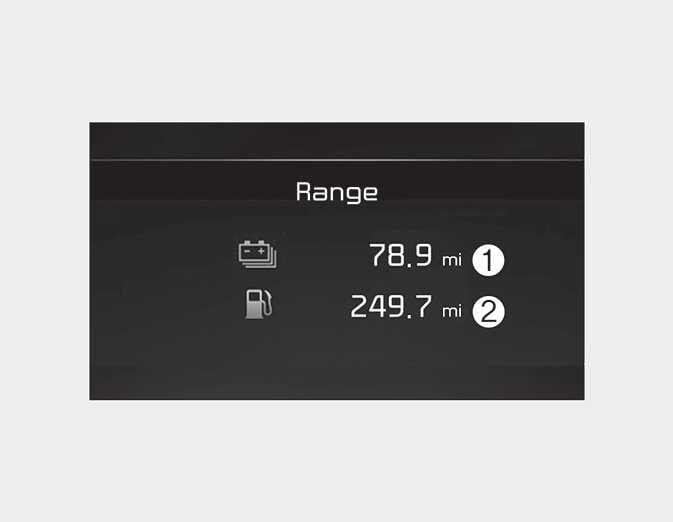

The range is the estimated distance the vehicle can be driven with the remaining high-voltage (hybrid) battery (1, Electric) and fuel in the fuel tank (2, Gasoline).

OMQ4PH041599L

  • If the estimated distance is below 1 mile (1 km), the trip computer will display “---” as distance to empty.

    • Distance range: 1 ~ 510 miles or 1 ~ 510 km.

NOTE

  • If the vehicle is not on level ground or the battery power has been interrupted, the range function may not operate correctly.

  • The range may differ from the actual driving distance as it is an estimate of the available driving distance.

  • The trip computer may not register additional fuel if less than 1.6 gallons (6 liters) of fuel are added to the vehicle.

  • The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.

Energy flow

OMQ4HQ010004L0

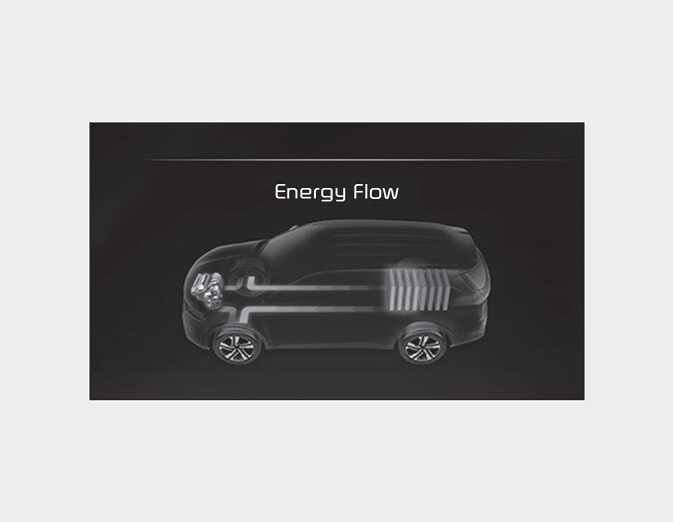

The hybrid system informs the driver about its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

* For more details, refer to Energy flow.
