Main fuse (Multi fuse)

OMQ4H070016

If the main fuse is blown, it must be removed as follows:

  1. Turn off the engine.
  2. Disconnect the negative battery cable.

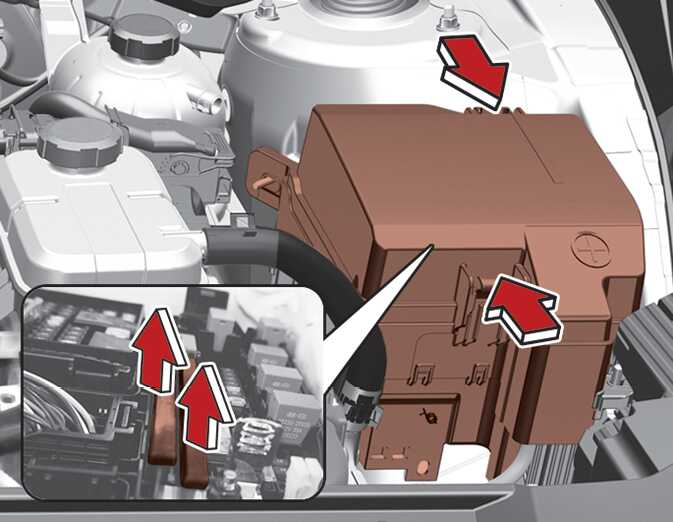

  3. Remove the nuts shown in the picture above.
  4. Replace the fuse with a new one of the same rating.
  5. Reinstall in the reverse order of removal.
NOTE

Do not disassemble nor assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an authorized Kia dealer.
