Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

Basic function

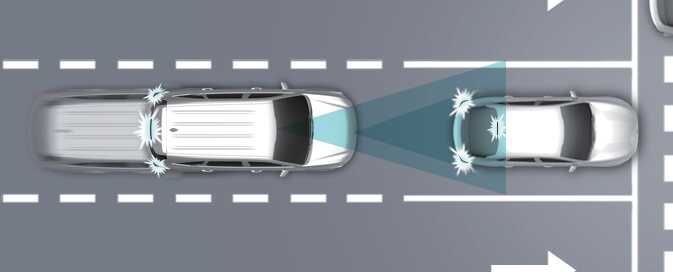

OMQ4053004

FCA detects a vehicle, a powered two-wheeler, a pedestrian, or a cyclist ahead on the road and may warn you of a possible collision with a warning message on the instrument cluster and a warning sound. Also, FCA may assist with braking your vehicle to help reduce collision speed or avoid a collision.

FCA can detect vehicles ahead and adjacent lanes even at high speeds. If the driver makes a lane change at those speeds, your vehicle can apply emergency braking to mitigate or avoid a collision.: (if equipped)

Junction Turning function

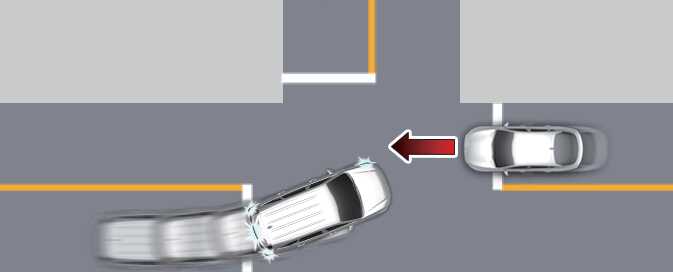

OMQ4053005

Junction Turning function can help avoid a collision with an oncoming vehicle, powered two-wheeler and cyclist in an oncoming lane when turning left at a crossroad with the turn signal on by applying emergency braking.

Direct Oncoming function

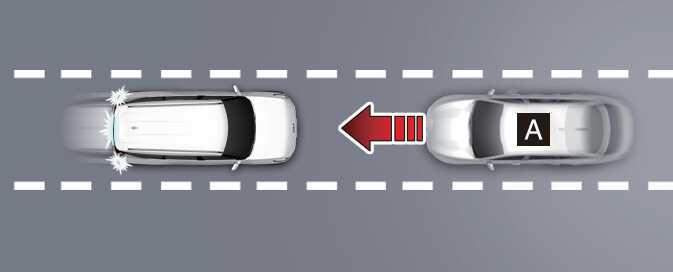

OMV053004

[A]: Oncoming vehicle

Direct Oncoming function can help reduce the speed at the collision when with a vehicle or powered two-wheeler approaching from the opposite side is detected.

Junction Crossing function: (if equipped)

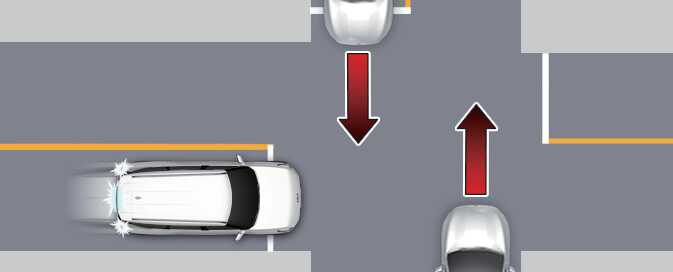

OMV053003

Junction Crossing function can help mitigate or avoid a collision with oncoming vehicles on the left or right side when crossing an intersection by applying emergency braking.

Lane-Change Oncoming function: (if equipped)

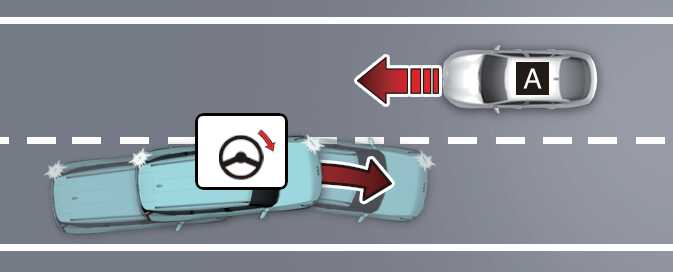

OMV053005

[A]: Oncoming vehicle

Lane-Change Oncoming function can help mitigate or avoid a collision with oncoming vehicles or powered two-wheelers when changing lanes by assisting the driver's steering.

Lane-Change Side function: (if equipped)

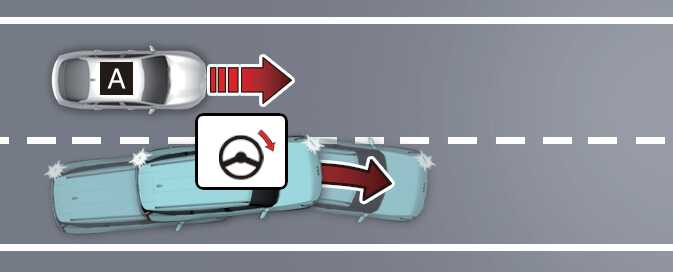

OMV053006

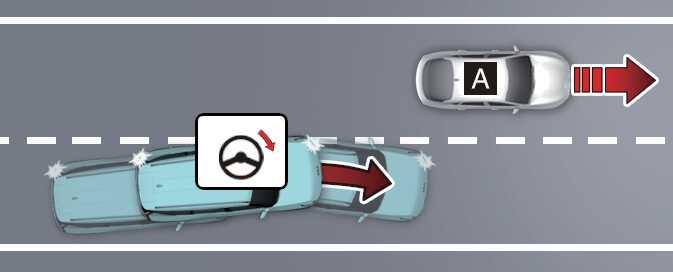

OMV053007

[A]: Approaching car from side

Lane-Change Side function can help mitigate or avoid a collision with vehicles or powered two-wheelers in the next lane when changing lanes by assisting the driver's steering.

Evasive Steering Assist function: (if equipped)

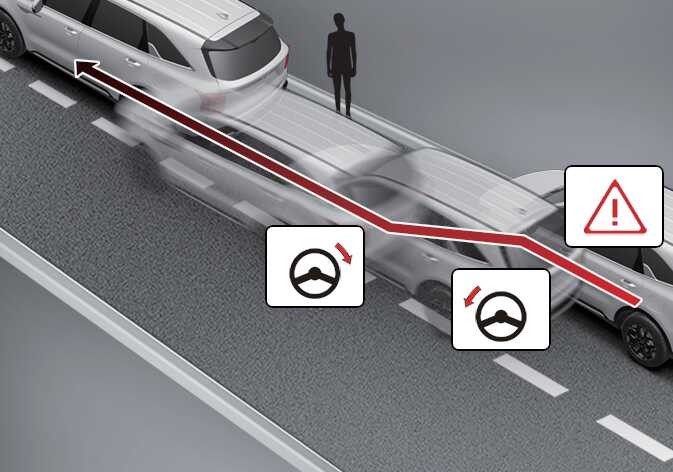

OMQ4A053038

  • Driver steering assist

    If a possible collision with a vehicle ahead, pedestrian, cyclist, etc. is detected and you steers to avoid the collision, Evasive Steering Assist can assist the driver in steering.

  • Evasive steering assist

    Evasive Steering Assist function can help mitigate or avoid a collision with a vehicle, pedestrian cyclist, etc. in the same lane in front of you. When a risk of collision is detected, Evasive Steering Assist function can warn you and assist your steering if you move the steering wheel.

Detecting sensor

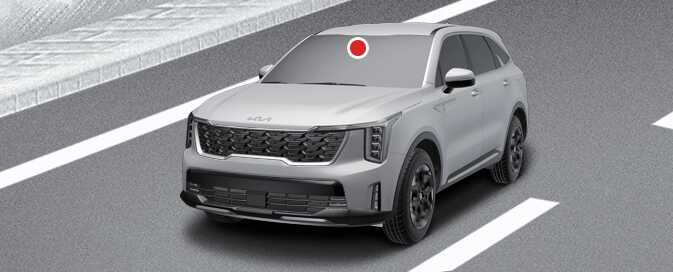

Figure 1. Front camera
OMQ4053002

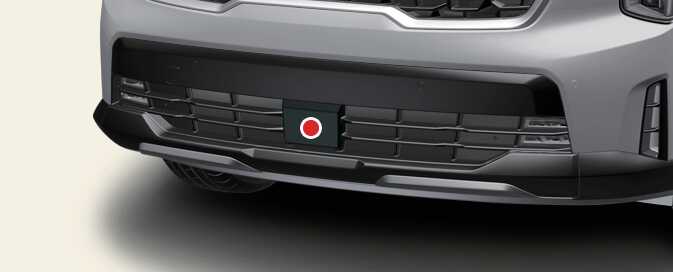

Figure 2. Front radar
OMQ4053006

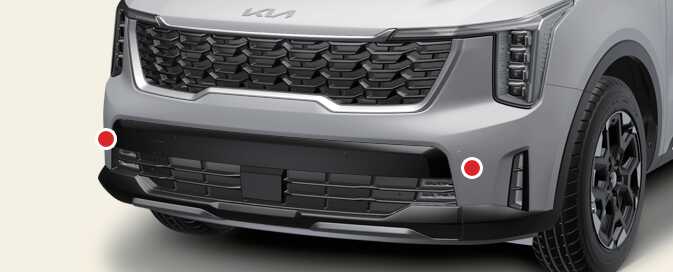

Figure 3. Front corner radar (if equipped)
OMQ4053179

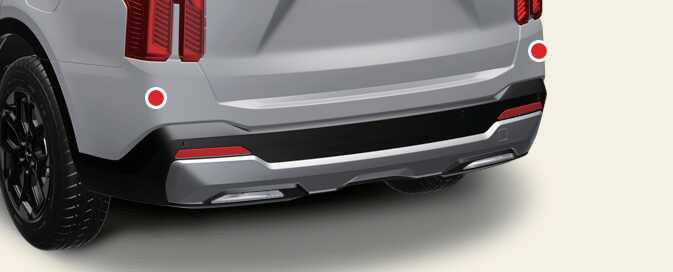

Figure 4. Rear corner radar (if equipped)
OMQ4A053034

Refer to the picture above for the detailed location of the detecting sensors.

CAUTION

  • Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.

  • If the detecting sensors have been replaced or repaired, have the vehicle inspected by a professional workshop. Visit an authorized Kia dealer.

  • If the radar or around the radar experiences an impact, Forward Collision-Avoidance Assist may not operate properly even if a warning message is not displayed on the cluster. Visit an authorized Kia dealer.

  • Never install any accessories or stickers on the front windshield, or tint the front windshield.

  • Pay extreme caution to keep the front view camera dry.

  • Never place any reflective objects (for example, white paper, mirror) over the instrument panel.

  • Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.

  • Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front radar cover.

  • Always keep the front radar and cover clean and free of dirt and debris.

    Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

  • The genuine Kia front/front corner/rear corner radar sensor covers are parts with quality and performance ensured. If arbitrarily applying paint on or changing the cover, Forward Collision-Avoidance Assist may not function properly.

    Use only Kia Genuine Parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.

  • The function may not work properly when the bumper has been replaced, or the surroundings of the front corner radar or rear corner radar has been damaged or paint has been applied.

  • If a trailer, carrier, etc. is installed, it may adversely affect the performance of Forward Collision-Avoidance Assist may not operate properly.
