Automatic climate control system: (if equipped)

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

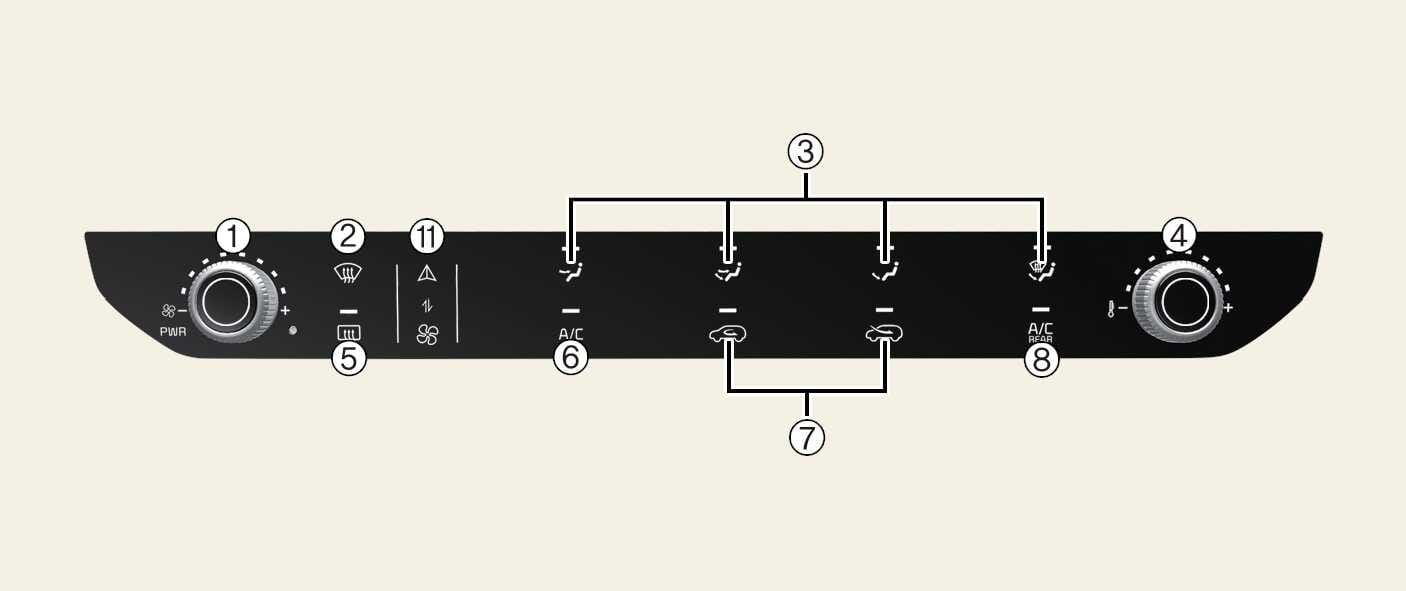

OMQ4A033302MX0
Figure 1. 3rd row seat

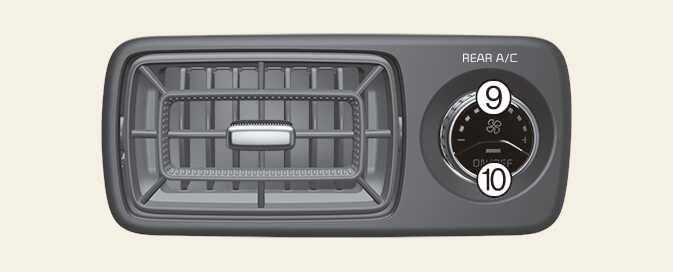

OMQ4033318L0

  1. Fan speed control knob

  2. Front windshield defroster button

  3. Mode selection button

  4. Temperature control knob

  5. Rear window defroster button

  6. A/C button

  7. Air intake control button

  8. 3rd row air conditioning (A/C) button (if equipped)

  9. 3rd row seat Air conditioning Fan speed control knob (if equipped)

  10. 3rd row seat Air conditioning ON/OFF button (if equipped)

  11. Using the infotainment/climate switchable controller

NOTE

Operating the blower when the ENGINE START/STOP button is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
