Heating and air conditioning automatically

  1. Press the AUTO button.

    The modes, fan speeds, air intake and air-conditioning will be controlled automatically by setting the temperature.

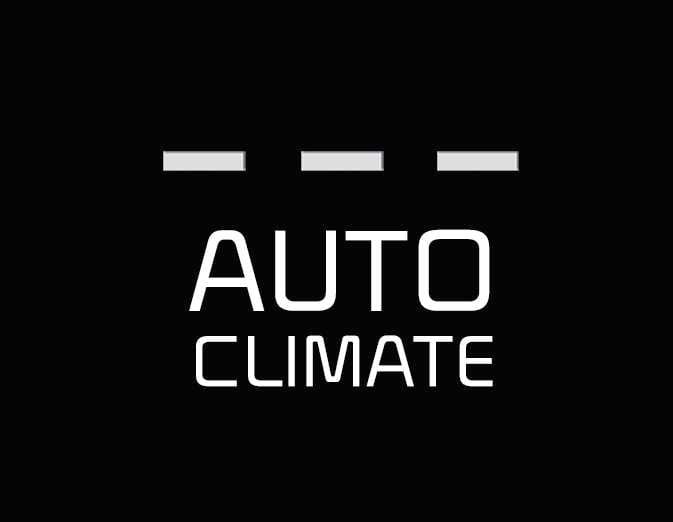

    OGL3041303

    Level

    Indicator

    LCD Display

    Air flow

    High

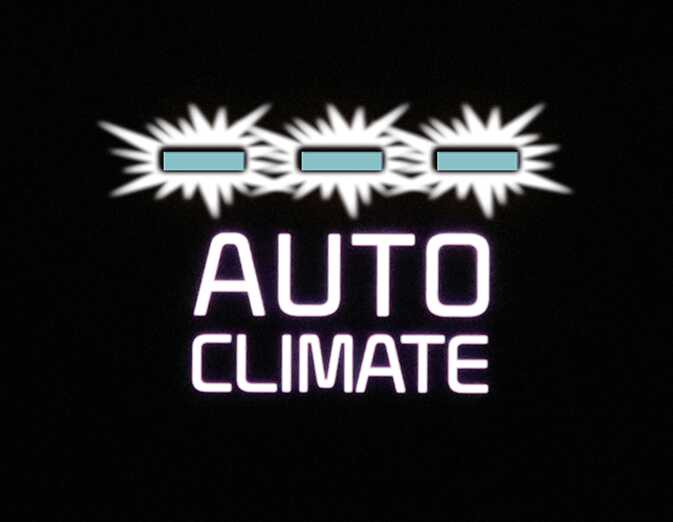

    OGL3041306

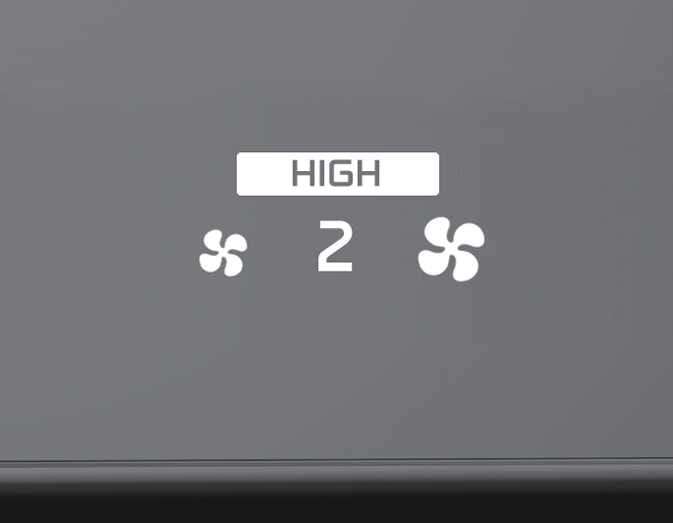

    OGL3041309

    1 ~ 8 (EU)

    2 ~ 8

    Medium

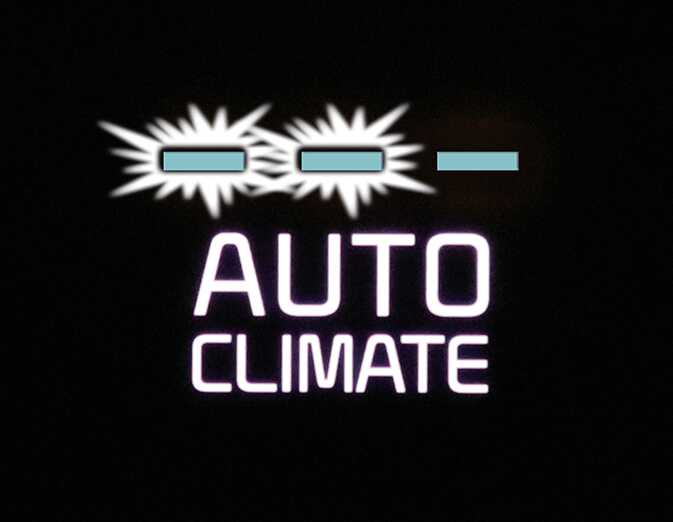

    OGL3041305
    OGL3041308

    1 ~ 6

    Low

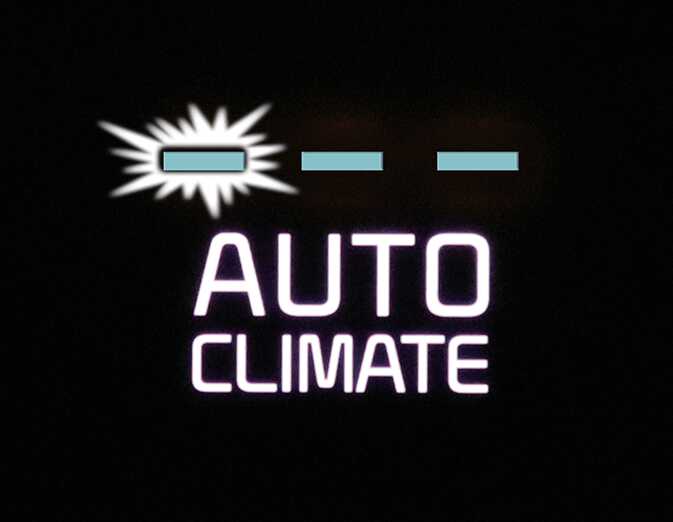

    OGL3041304
    OGL3041307

    1 ~ 4

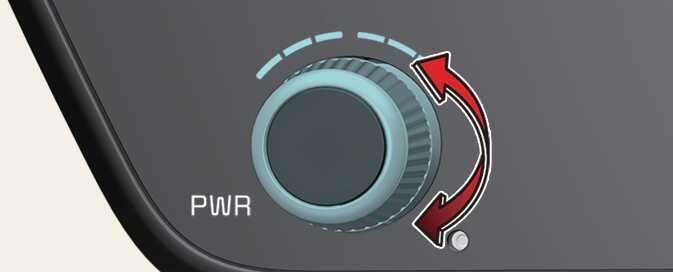

  2. Turn the temperature control knob to the desired temperature.

    OCV041305L
NOTE

  • To turn the automatic operation off, select any button of the following:

    • Mode selection button

    • Air conditioning button

    • Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The AUTO sign will appear on the information display once again.)

    • Fan speed control knob

    The selected function will be controlled manually while other functions operate automatically.

  • To improve the effectiveness of the climate control, use the AUTO button and set the temperature to 72 °F (22 °C).

NOTE

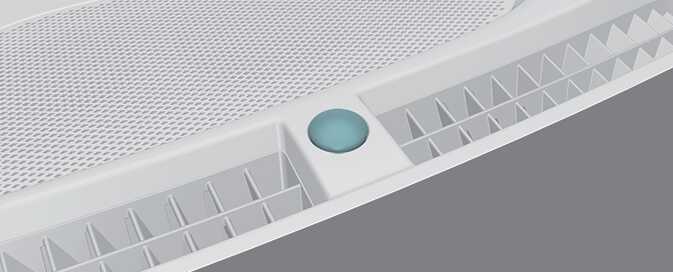

Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

OMQ4033478
