Engine compartment

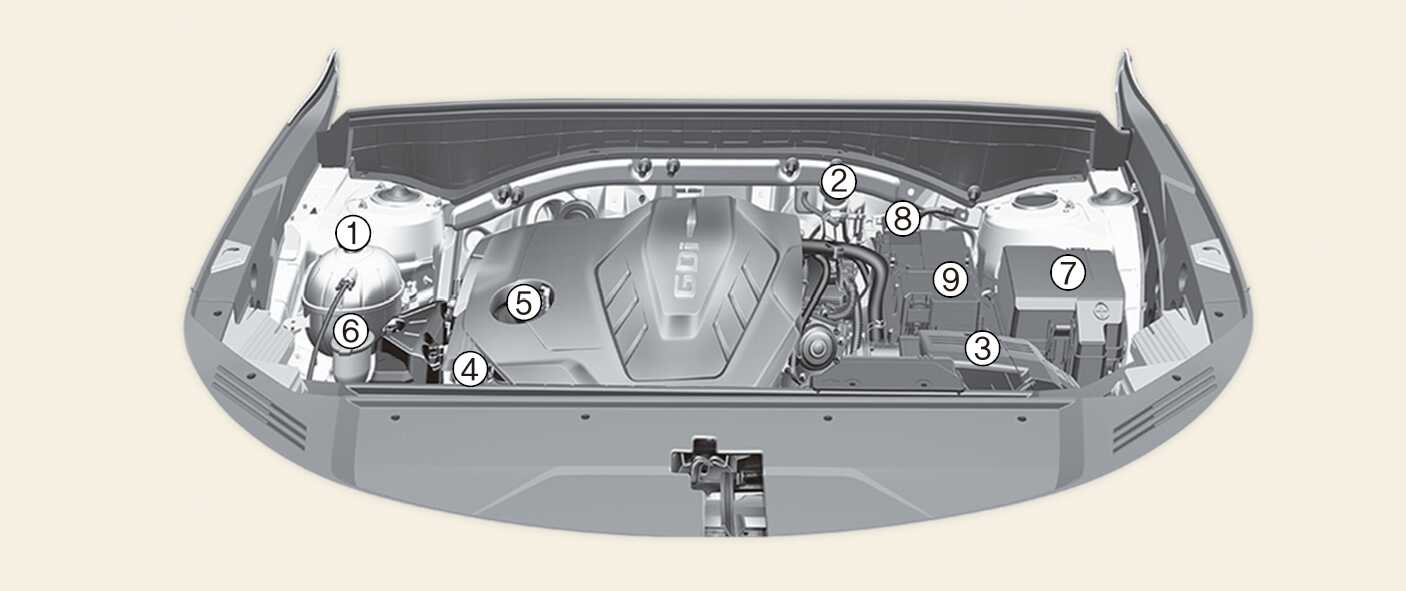

Figure 1. Smartstream G2.5 GDi (Gasoline)
OMQ4A0730010

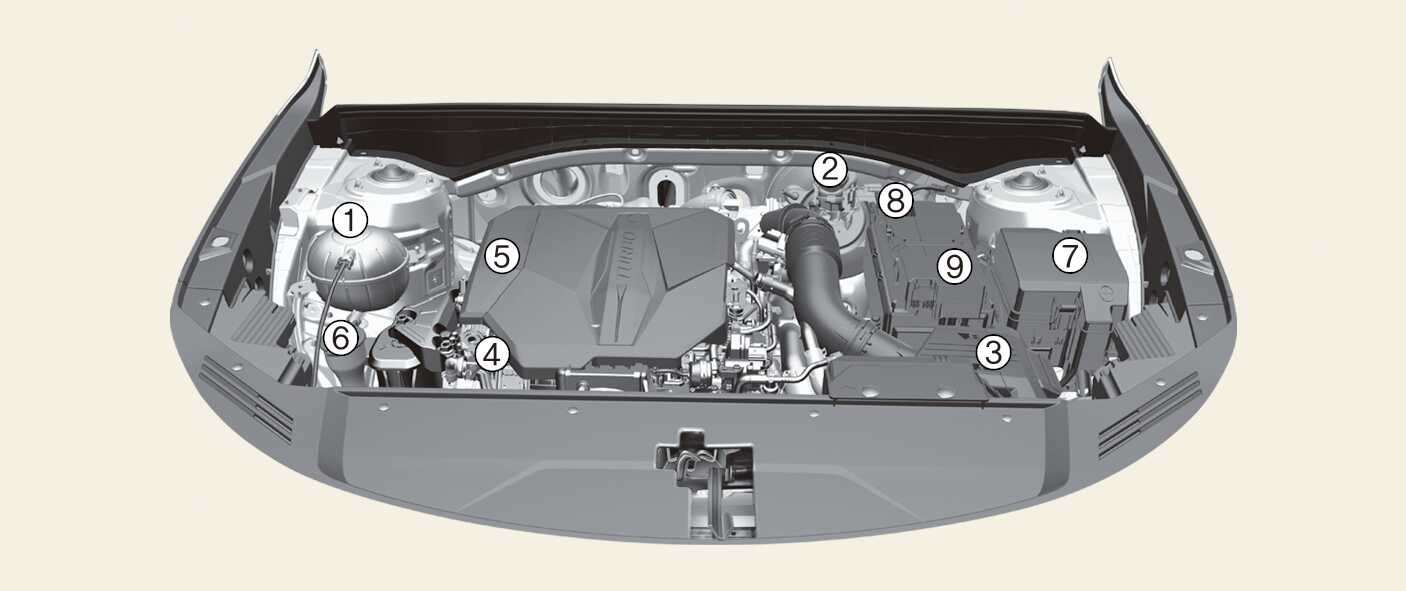

Figure 2. Smartstream G2.5 T-GDi (Gasoline)
OMQ4A0730020

The actual engine compartment in your Kia may differ from the illustration.

  1. Engine coolant reservoir

  2. Brake fluid reservoir

  3. Air cleaner

  4. Engine oil dipstick

  5. Engine oil filler cap

  6. Windshield washer fluid reservoir

  7. Fuse box

  8. Negative battery terminal

  9. Positive battery terminal
