Highway Driving Assist (HDA): (if equipped)

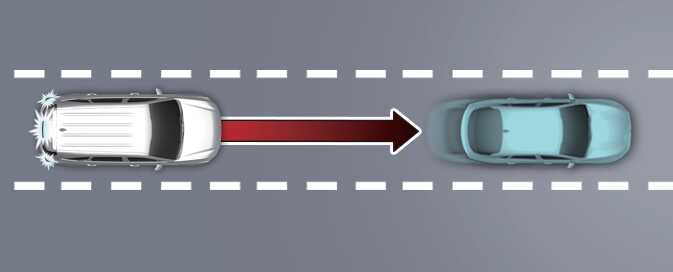

Figure 1. Highway Driving Assist
OMQ4053044

Highway Driving Assist detect lanes and vehicles ahead and help maintain the distance from the vehicle ahead and the set speed and center your vehicle in the lane while driving on the highway.

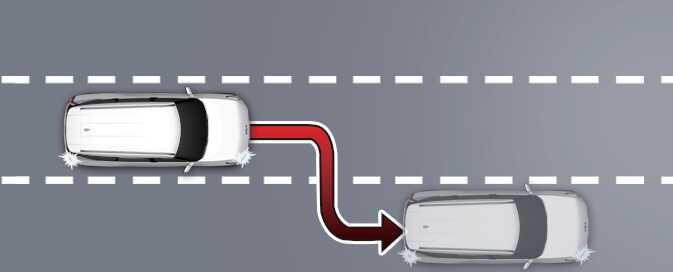

Figure 2. Highway Lane Change Assist (if equipped)
OMV053057

Highway Lane Change Assist function can help change lanes to the direction you operate the turn signal switch if the function determines that lane change is possible.

NOTE

  • Highway Driving Assist is available only on controlled access roads of certain highways.

    A controlled access road indicates roads with limited entrances and exits that allow uninterrupted high speed traffic flow. Only passenger cars and motorcycles are allowed on controlled access roads.

  • Additional highways may be added by future navigation updates.

Highway Driving Assist operates on main roads of highways and does not operate on interchanges or junctions.

Detecting sensor

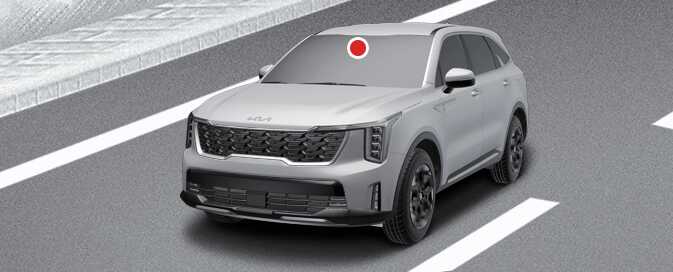

Figure 3. Front-view camera
OMQ40530025

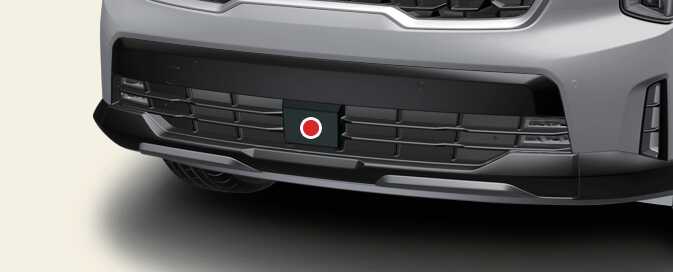

Figure 4. Front radar
OMQ40530061

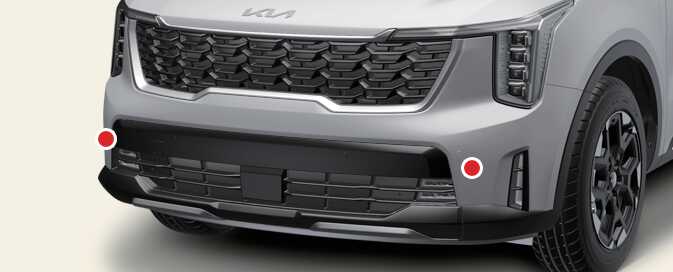

Figure 5. Front corner radar (if equipped)
OMQ40531791

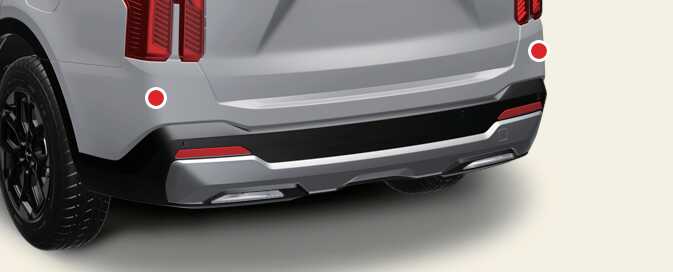

Figure 6. Rear corner radar (if equipped)
OMQ4A0530343

Refer to the pictures above for the detailed location of the detecting sensors.

CAUTION

For more details on the precautions of the detecting sensors, refer to Forward Collision-Avoidance Assist (FCA) (Sensor Fusion).
