Rear View Monitor operation
Parking/View button
Press the Parking/View button (1) to turn on or off Rear View Monitor.

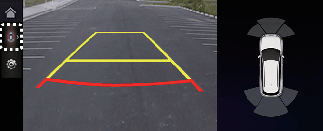

Rear view
Operating conditions
Rear View Monitor will turn on when the following conditions are satisfied:
-
Shifting the gear to R (Reverse).
-
Pressing the Parking/View button (1) while P (Park) gear position is selected
-
Pressing the View icon with the Rear top view on the screen
Off conditions
Rear View Monitor will turn off when the following conditions are satisfied:
-
Pressing the Parking/View button (1) again while P (Park) gear position is selected. with the rear view on the screen.
-
Changing the gear from R (Reverse) to P (Park).
The rear view cannot be turned off when the gear is in R (Reverse).
Extended Rear View Monitor
Extended Rear View Monitor function maintains the rear view of the vehicle when shifting the gear from R (Reverse) to N (Neutral) or D (Drive) to help you park safely.
Operating conditions
Rear View Monitor will maintain when the following conditions are satisfied:
-
Shifting the gear from R (Reverse) to N (Neutral) or D (Drive).
-
The vehicle speed is below approximately 10 km/h (6 mph).
Off conditions
Extended Rear View Monitor function will turn off when one the following conditions are satisfied:
-
The vehicle speed is above approximately 10 km/h (6 mph).
-
Pressing the Parking/View button (1).
-
Shifting the gear to P (Park).

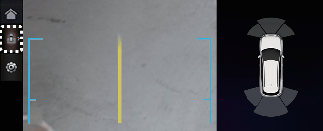

Rear top view
Rear top view shows the distance from the vehicle or the object in the back of your vehicle while parking.
Press the Rear top view button (
) to turn on Rear top view.
