Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

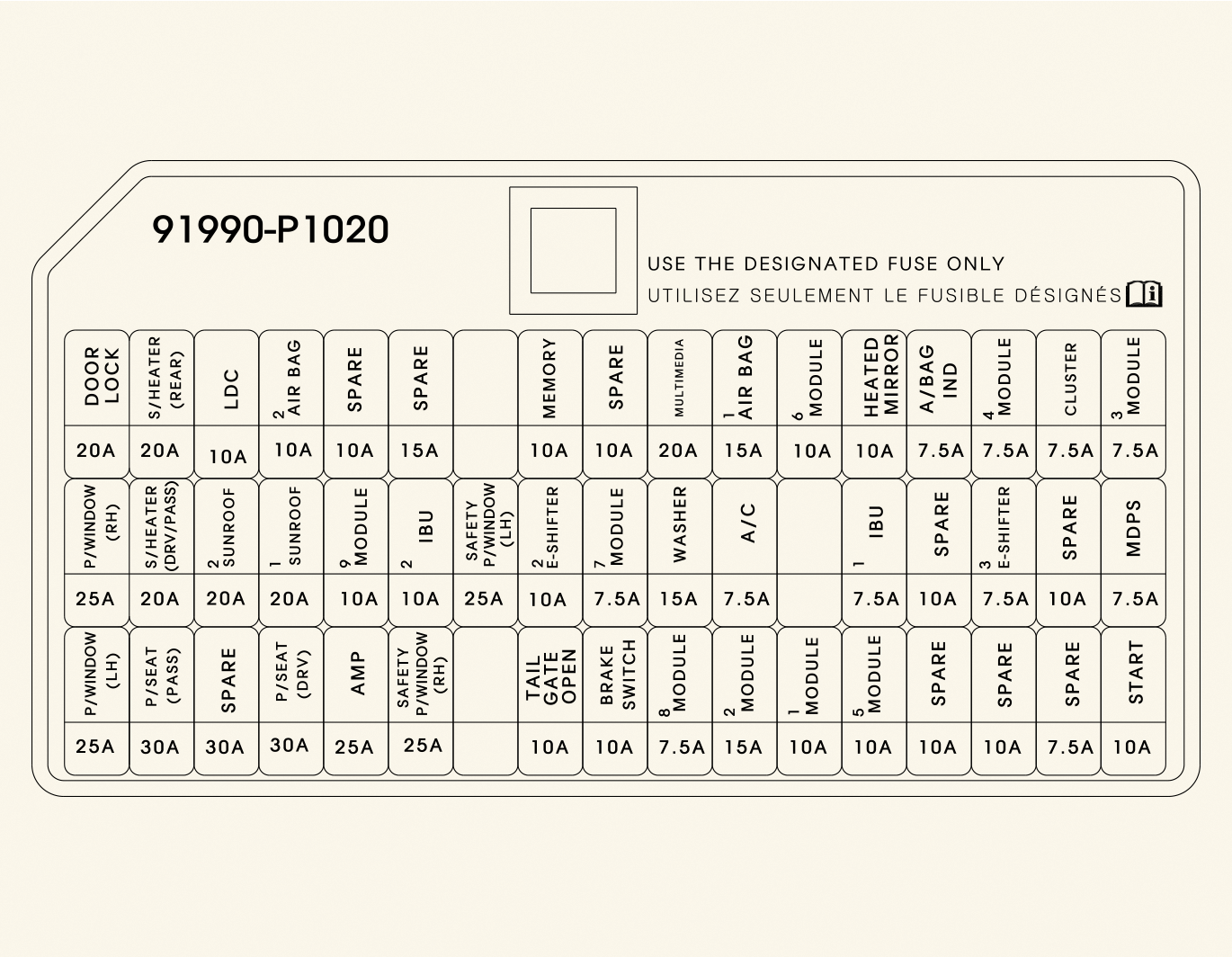

Driver's side fuse panel
ICU Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
DOOR LOCK |
20A |
Center Door Lock/Unlock Relay |
|
P/WINDOW RH |
25A |
Power Window Main Switch, Passenger Power Window Switch |
|
P/WINDOW LH |
25A |
Power Window Main Switch |
|
S/HEATER (REAR) |
20A |
Rear Seat Warmer Control Module |
|
S/HEATER (DRV/PASS) |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
P/SEAT (PASS) |
30A |
Passenger Power Seat Switch, Passenger Seat Relay Unit |
|
SUNROOF2 |
20A |
Sunroof Controller (Blind Motor) |
|
AIRBAG2 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
SUNROOF1 |
20A |
Sunroof Controller (Glass Motor) |
|
P/SEAT DRV |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
MODULE9 |
10A |
Driver IMS (Integrated memory system) Control Module, Driver/Passenger Smart Key Outside Handle, Rain Sensor, Hazard Switch, Data Link Connector, Power Liftgate Unit |
|
AMP (Amplifier) |
25A |
AMP (Amplifier) |
|
IBU (Integrated Body Control Unit)2 |
10A |
IBU (Integrated Body Control Unit), Ignition Switch, Auto Transmission Lever |
|
P/WINDOW SAFETY RH |
25A |
Passenger Safety Power Window Module |
|
P/WINDOW SAFETY LH |
25A |
Driver Safety Power Window Module |
|
MEMORY |
10A |
Outside Mirror Folding/Unfolding Relay, Driver/Passenger Power Outside Mirror, Instrument Cluster, Air Conditioner Controller (LCD), Air Conditioner Control Module, Mood Lamp Unit, Console Mood Lamp, Mood Lamp (Passenger), Crash Pad Switch, Integrated Parking Assist Unit, Low Voltage DC-DC converter(450W) |
|
LIFTGATE |
10A |
Liftgate Relay |
|
MODULE7 |
7.5A |
IBU (Integrated Body Control Unit) |
|
BRAKE SWITCH |
10A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
MULTIMEDIA |
20A |
Audio (Display), Audio/Video & Navigation Head Unit, Low Voltage DC-DC converter(200W) |
|
WASHER |
15A |
Multifunction Switch |
|
MODULE8 |
7.5A |
Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, E/R Junction Block (Windshield Heated Relay LH) |
|
AIRBAG1 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
Air Conditioner ON |
7.5A |
E/R Junction Block (PTC Heater Relay #1, Blower Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module |
|
MODULE2 |
15A |
Front USB Charger Connector, Driver/Passenger Seat USB Port |
|
MODULE6 |
10A |
Console Switch, Drive Mode Switch, Data Link Connector, Auto Transmission Shift Lever Indicator |
|
MODULE1 |
10A |
Intergrated Parking Assist Unit, IBU (Integrated Body Control Unit), Audio Keyboard, Audio/Video & Navigation Keyboard, Power Outside Mirror Switch, AMP (Amplifier), Audio (Display), Audio/Video & Navigation Head Unit, Low Voltage DC-DC converter |
|
HEATED MIRROR |
10A |
Driver/Passenger Power Outside Mirror |
|
IBU (Integrated Body Control Unit)1 |
7.5A |
IBU (Integrated Body Control Unit) |
|
MODULE5 |
10A |
Driver IMS (Integrated memory system) Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Audio (Display), Audio/Video & Navigation Head Unit, Front Wireless Charger, Air Conditioner Controller (LCD), Air Conditioner Control Module, Electro Chromic Mirror, Low Voltage DC-DC converter |
|
AIRBAG IND |
7.5A |
Instrument Cluster |
|
MODULE4 |
7.5A |
IBU (Integrated Body Control Unit), Multifunction Front View Camera, Crash Pad Switch, Intergrated Parking Assist Unit, Front Corner Radar LH/RH, Clutch Module Cylinder Sensor, 4WD (4 Wheel Drive) ECU (Electronic Control Unit), Head Lamp LH/RH, Rear Corner Radar LH/RH |
|
E-SHIFTER3 |
7.5A |
SCU (System Control Unit), Electronic Auto Transmission Shift Lever Switch |
|
CLUSTER |
7.5A |
Instrument Cluster |
|
MODULE3 |
7.5A |
Stop Lamp Switch, Overhead Console Lamp |
|
Motor Driven Power Steering |
7.5A |
Motor Driven Power Steering Unit |
|
START |
10A |
Burglar Alarm Horn Relay, Transaxle Range Switch, Power train Control Module, IBU (Integrated Body Control Unit), Ignition Switch, E/R Junction Block (Start Relay) |
|
LDC |
10A |
Low Voltage DC-DC converter, Audio/Video & Navigation Head Unit, Instrument Cluster, Front Wireless Charger, Air Conditioner Controller (LCD), Integrated Parking Assist Unit, Rear Coner Radar LH/RH |

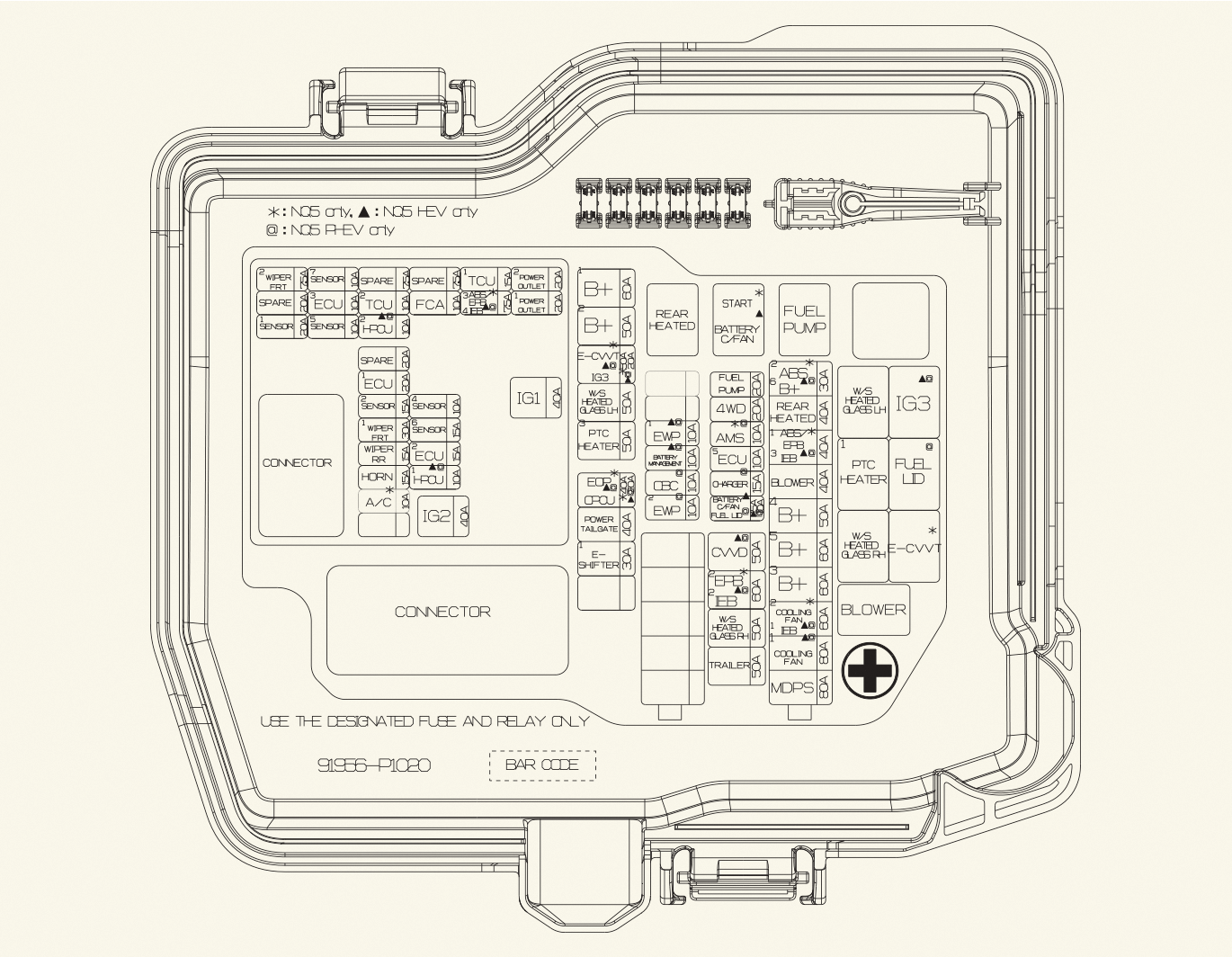

Engine compartment fuse panel
Engine Room Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
Motor Driven Power Steering1 |
80A |
Motor Driven Power Steering Unit |
|
COOLING FAN2 |
60A |
Cooling Fan Controller |
|
|
B+3 |
60A |
ICU Junction Block (Fuse - S/HEATER (Rear), P/SEAT(PASS), SUNROOF2, SUNROOF1, P/SEAT DRV, AMP, P/WINDOW SAFETY RH, Power Window Main Relay) |
|
|
B+5 |
60A |
PCB Block (Fuse - IG2, IG1, HORN, A/CON2, B/ALARM HORN, ECU2, Engine Control Relay, Wiper Main Relay) |
|
|
B+4 |
50A |
ICU Junction Block (Fuse - DOOR LOCK, S/HEATER (DRV/PASS), AIRBAG2, MODULE9, IBU2, P/WINDOW SAFETY LH, E-SHIFTER2, LIFTGATE, BRAKE SWITCH, Long Term Load Latch Relay), , Outside Mirror Folding/Unfolding Realy |
|
|
BLOWER |
40A |
Blower Relay |
|
|
ABS1/EPB1 |
40A |
ESP (Electronic Stability Program Control Module |
|
|
REAR HEATED |
40A |
Rear Heated Relay |
|
|
ABS2 |
30A |
ESP (Electronic Stability Program Control Module |
|
|
FUSE |
TRAILER1 |
50A |
Trailer Connector |
|
COOLING FAN1 |
50A |
Cooling Fan Relay High |
|
|
EPB2 |
60A |
ESP (Electronic Stability Program Control Module |
|
|
W/S HEATED GLASS RH |
50A |
Windshield Heated Relay RH |
|
|
ECU5 |
10A |
Not Used |
|
|
AMS |
10A |
Battery Sensor |
|
|
4WD |
20A |
AWD ECM (Engine Control Module) |
|
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
|
Air ConditionerON1 |
10A |
Blower Relay, Air Conditioner Control Module |
|
|
E-SHIFTER1 |
30A |
SCU (System Control Unit) |
|
|
LIFTGATE |
40A |
Power Liftgate Unit |
|
|
EOP |
40A |
Electronic Oil Pump |
|
|
PTC HEATER3 |
50A |
Fuel Filter Heating Relay |
|
|
W/S HEATED GLASS LH |
50A |
Cooling Fan Relay low (Nu Engine), DCU Relay (NEW R) |
|
|
E-CVVT |
50A |
PTC Heater Relay #2 (Diesel), E-CVVT Relay (Theta Engine) |
|
|
B+2 |
50A |
ICU Junction Block (IPS06/IPS07/IPS08/IPS09/IPS10/IPS11) |
|
|
B+1 |
60A |
ICU Junction Block (IPS01/IPS02/IPS03/IPS04/IPS05) |
|
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
IG2 |
40A |
IG2 Relay |
|
IG1 |
40A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
7.5A |
Front Wiper (Low) Relay, IBU (Integrated Body Control Unit) |
|
SENSOR1 |
20A |
Ignition Coil #1~#4 |
|
SENSOR7 |
10A |
Electronic Oil Pump |
|
ECU3 |
10A |
Power train Control Module |
|
SENSOR5 |
10A |
Fuel Pump Relay, Oil Level Senosr |
|
TCU2 |
10A |
Not Used |
|
TCU3 |
10A |
Not Used |
|
SENSOR3 |
20A |
Not Used |
|
ECU1 |
20A |
Power train Control Module |
|
SENSOR2 |
15A |
Oxygen Sensor (UP/DOWN) |
|
FR WIPER1 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
15A |
Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
|
HORN |
15A |
Horn Relay |
|
Air ConditionerON2 |
10A |
Air Conditioner Comp Relay |
|
FCA |
10A |
Front Radar |
|
SENSOR4 |
10A |
Oil Control Valve #2 (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay |
|
SENSOR6 |
15A |
Injector #1~#4 |
|
ECU2 |
15A |
Power train Control Module |
|
TCU1 |
15A |
Power train Control Module |
|
ABS3/EPB3 |
7.5A |
ESP (Electronic Stability Program (Electronic Stability Program) Control Module |
|
POWER OUTLET2 |
20A |
Front Power Outlet |
|
POWER OUTLET1 |
20A |
Luggage Power Outlet |
Relay
Refer to the following table for the relay type.
|
Relay Name |
TYPE |
|---|---|
|
Rear Heated Relay |
MICRO |
|
Start Relay |
MICRO |
|
Fuel Pump Relay |
MICRO |
|
Windshield Heated Relay LH |
MICRO |
|
PTC Heater Relay #1 |
MICRO |
|
Windshield Heated Relay RH |
MICRO |
|
E-CVVT Relay (Theta Engine) |
MICRO |
|
Blower Relay |
MICRO |

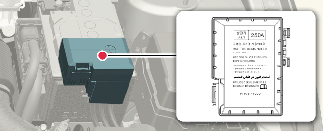

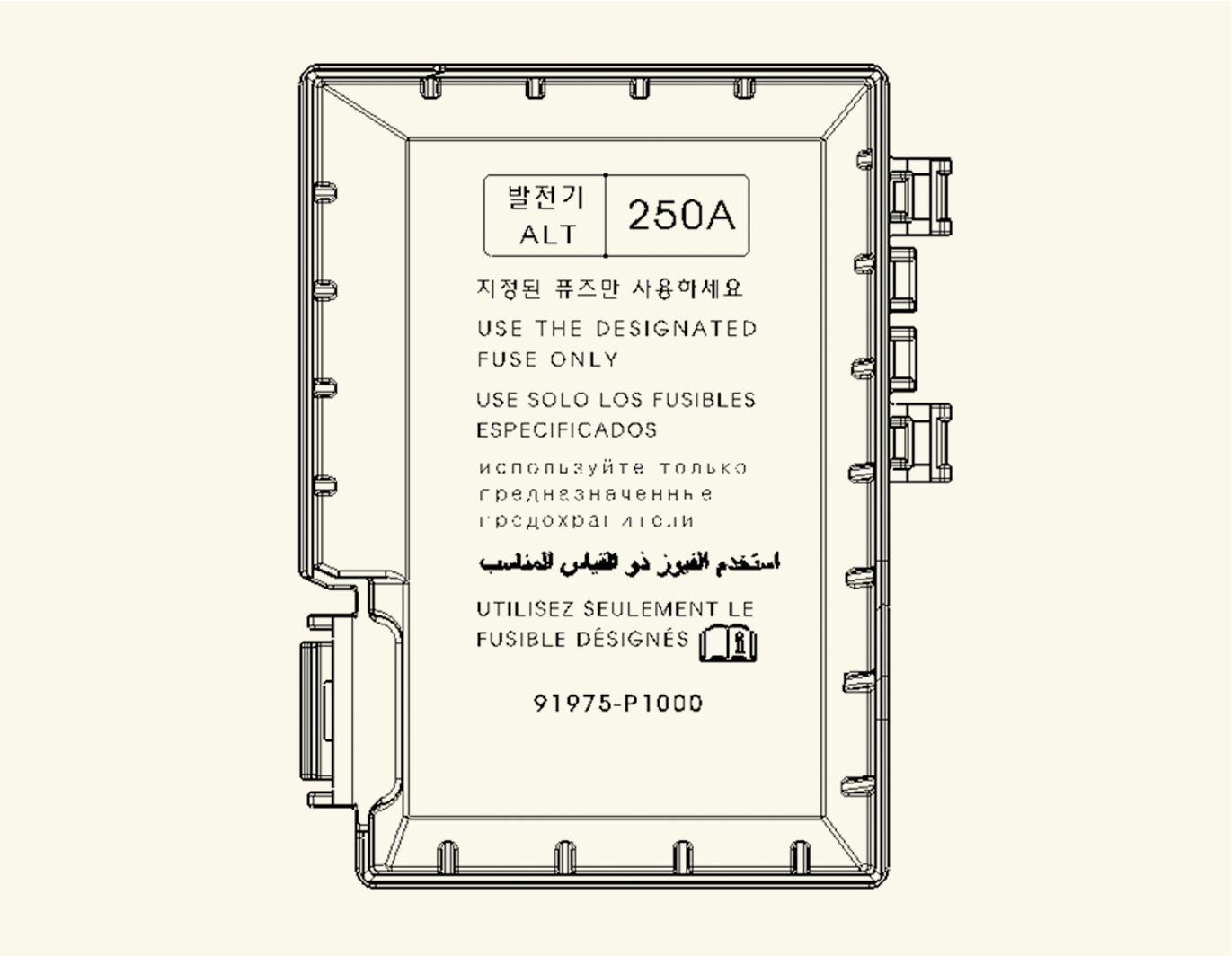

Engine compartment fuse panel (Battery terminal cover)
