LCD Display Modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Turn By Turn (TBT)	Driving Assist	User Settings	Master warning
Up/Down	Fuel Economy	Route Guidance	Lane Safety	Head-Up Display	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info	Destination Info	Driver Attention Warning	Driver Assistance
	Drive Info		AWD	Door
	Speedometer			Lights
	Drive Mode			Sound
				Convenience
			TPMS	Service Interval
				Other features
				Language
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

NOTICE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

Trip Computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

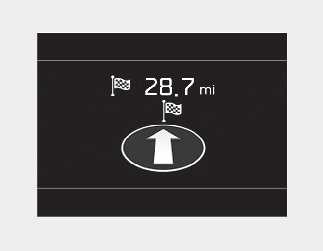

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Driving Assist

This mode displays the state of:

Lane Safety
Driver Attention Warning
AWD
TPMS

* For more details, refer to each system information in More Details.

TPMS status

* For more details, refer to More Details.

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display.

If the warning situation is resolved, the master warning light will be turned off and the Master Warning icon will disappear.

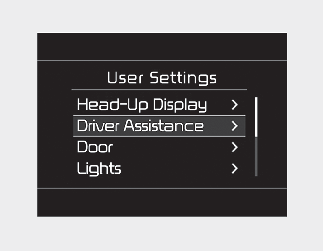

User Settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-Up Display
Driver Assistance
Door
Lights
Sound
Convenience
Service Interval
Other features
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

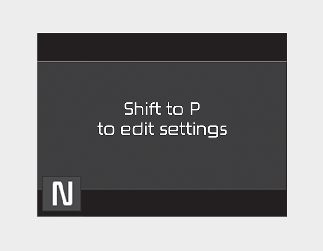

Shift to P to edit settings

This warning message appears if you try to adjust the User Settings while driving.

For your safety, change the User Settings after parking the vehicle by shifting the lever to P (Park) and applying the parking brake.

1. Head-Up Display (if equipped)

	Explanation
Enable Head-Up Display	If this item is checked, the Head-Up Display will be activated.
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Contents Selection	If below items are checked, the items will be activated. Turn By Turn Traffic Info Driving Assist information Lane Safety information Blind-Spot Safety information AV Information
Speedometer size	Small/Medium/Large
Speedometer color	White/Orange/Green

2. Driver Assistance (if equipped)

	Explanation
SCC Reaction	Fast/Normal/Slow To adjust the sensitivity of Smart Cruise Control. * For more details, refer to More Details.
Driving Assist	Leading vehicle departure alert/Lane Following Assist/Highway Driving Assist/Highway Auto Curve Slowdown To select the functions.
Warning Timing	Normal/Later To select the Warning time
Warning Volume	High/Medium/Low/Off To select the Warning volume
Driver Attention Warning	Low Activity Warning To select the function. * For more details, refer to More Details.
Forward Safety	Active Assist/Warning Only/Off To select the functions.
Lane Safety	Lane Keeping Assist/Lane Departure Warning/Off To select the functions.
Blind-Spot Safety	Blind-Spot View Safe Exit Assist (SEA) Active Assist/Warning Only/Off To select the functions.
Parking Safety	Rear Cross-Traffic Safety: You can turn on/off Rear Cross-Traffic Collision-Avoidance Assist. With Rear Cross-Traffic Collision-Avoidance Assist on, if there is a vehicle approaching from the rear side when reversing, it helps you avoid collision through warning and control. * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Door

	Explanation
Automatically Lock	Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 9.3 mph (15 km/h). Enable on Shift (if equipped with Automatic transmission) : All doors will be automatically locked if the gear is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.)
Automatically Unlock	Disable: The auto door unlock operation will be canceled. Vehicle Off: All doors will be automatically unlocked when the Engine Star/Stop button is set to the OFF position. On Shift to P (if equipped with Automatic transmission) : All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)
Two Press Unlock(if equipped)	Off: The two press unlock function will be deactivated. Therefore, all doors will unlock if the door is unlocked. On: Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.
Power Liftgate (if equipped)	If this item is checked, the power liftgate function will be activated. * For more details, refer to More Details.
Power Liftgate Speed (if equipped)	Normal/ Fast You can select the operating speed of the power liftgate.
Smart Power Liftgate (if equipped)	If this item is checked, the smart power liftgate function will be activated. If the power liftgate function is not activated, you cannot activate this function. * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Lights

	Explanation
One touch turn signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Head Lamp Delay	If this item checked, the head lamp delay function will be activated.

Explanation

One touch turn signal

Off: The one touch turn signal function will be deactivated.
3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Head Lamp Delay

If this item checked, the head lamp delay function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Sound

	Explanation
Welcome sound	If this item checked, the welcome sound function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Convenience (if equipped)

	Explanation
Seat (forward/backward) Easy Access (if equipped)	Off: The seat easy access function will be deactivated. Normal/Extended: When you turn off the engine, the driver's seat will automatically move rear 3 in (7.6 cm) (Enhanced) for you to enter or exit the vehicle more comfortably. If you change the ENGINE START/STOP button from OFF position to the AC function, the driver's seat will return to the original position. * For more details, refer to More Details.
Seat (upward/downward) Easy Access (if equipped)	To activate or deactivate Seat (upward/downward) Easy Access
Rear Occupant Alert (if equipped)	To activate or deactivate the Rear Occupant Alert. * For more details, refer to More Details.
Welcome Mirror/Light	On door unlock/ On door approach. You can choose one of these two functions.
Wiper/Lights Display	If this item checked, the Wiper/Lights Display will be activated.
Auto rear wiper (reverse)	If this item checked, the Auto rear wiper will be activated.
Gear Position Pop-up	If this item is checked, the Gear position pop-up display will be activated.
Icy road warning	If this item is checked, the Icy road warning display will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

7. Service Interval

	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

NOTICE

To use the service interval menu, consult an authorized Kia dealer.

If the service interval is activated and the time and distance are adjusted, messages are displayed each time the vehicle is turned on in the following situations.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

8. Other features (if equipped)

	Explanation
Fuel Economy Auto Reset	If this item checked, the average fuel economy will reset automatically after refueling or after ignition.
Speed Unit	mph, km/h To select Speed unit.
Fuel Economy Unit	US gallon, UK gallon To select the Fuel economy unit. * For more details, refer to More Details.
Temperature Unit	°F/°C To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

9. Language (if equipped)

	Explanation
Language	To select language.

10. Reset

	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
