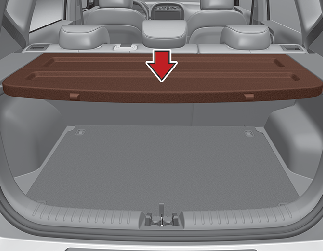

Cargo area cover (if equipped)
Use the cargo area cover to hide items stored in the cargo area.
Removal and installation
To remove the cargo area cover:
-

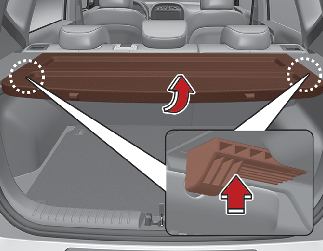

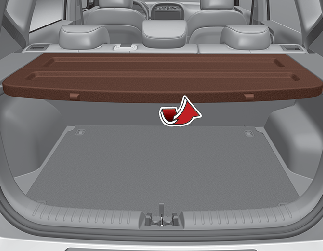

Fold the cargo area cover up in half.
-
Firmly hold the folded part of the cover and lift it up.
-

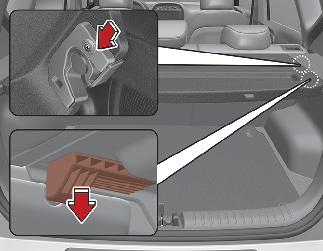

While lifting the cover up, hold the area near the front slots. Then, pull up the cover at approximately 45° angle.
WARNINGFolded cover may block the rear view. Put the folded cover in the appropriate position.
To install the cargo area cover:

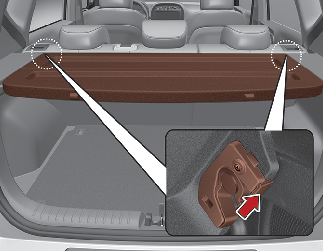

To use the cargo area cover, insert the 4 edges into the slots.
Do not place objects on the cargo area cover. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when braking.
Since the cargo area cover may be damaged or malformed, do not put luggage on it when it is used.
