Tail lamp/Back up lamp bulb replacement (Rear combination lamp Type A)
-
Open the tailgate.
-

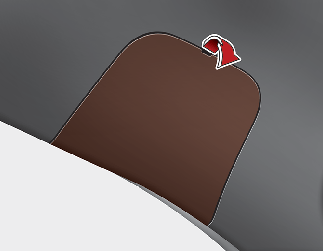

Remove the service cover. (Loosen the lamp assembly retaining screws and remove the lamp assembly from the body of the vehicle for back-up lamp)
-
Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
Tail lampBack-up lamp -

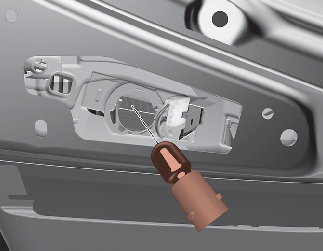

Remove the bulb from the socket by pressing it in and rotating it counter-clockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.
-
Insert a new bulb by inserting it into the socket and rotating it until it locks into place.
-
Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
-
Install the service cover by putting it into the service hole.
