LCD display modes (for Type C cluster)

	Mode
	Trip Computer	Driving Assist	User Settings	Master warning
Up/Down	Fuel Economy	Lane Keeping Assist Lane Following Assist	Driver Assistance	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info		Door
	Accumulated Info		Lights
	Drive Info		Sound
	Digital Speedometer	Driver Attention Warning	Convenience
			Service Interval
			Theme Selection
			Other features
			Language
			Reset

The information provided may differ depending on which functions are applicable to your vehicle.

* For controlling the LCD modes, refer to More Details.

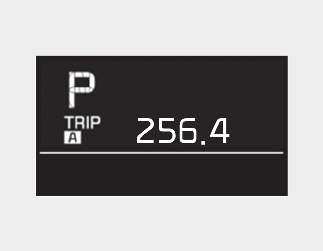

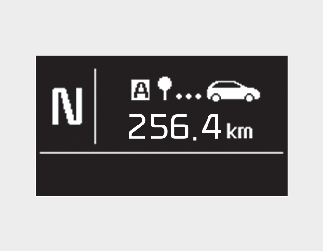

Trip computer mode

Type A

Type B

Type C

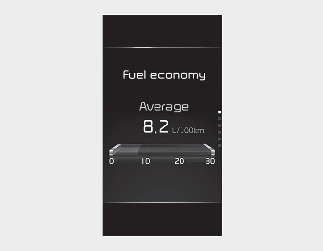

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

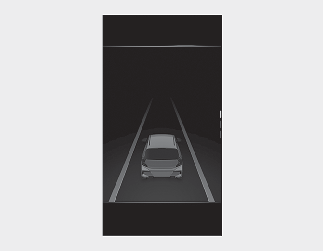

Driving Assist mode

This mode displays the state of:

- Lane Keeping Assist (if equipped)

- Lane Following Assist (if equipped)
Driver Attention Warning (if equipped)

* For more details, refer to each system information in "Driving your vehicle" on page 6-1.

Setting

To change the Driver Assistance settings, press the OK button on the steering wheel for more than 1 second when the Driving Assist mode is displayed.

WARNING

whilst driving, please do not change the setting mode. It may distract your attention and cause the accident.

Item	Explanation
Warning Timing	Normal/Late
Warning Volume	High/Medium/Low
Driver Attention Warning	Inattentive Driving Warning
Forward Safety	Active Assist/Warning Only/Off
Lane Safety	Lane Keeping Assist/Lane Departure Warning/Off
Blind-Spot Safety	Active Assist/Warning Only/Off
Parking Safety	Rear Cross-Traffic Safety

NOTICE

The information provided may differ depending on which functions are applicable to your vehicle.

Service mode

This mode reminds you of scheduled maintenance information.

Service in

It calculates and displays when you need a scheduled maintenance service (mileage or days).

If the remaining mileage or time reaches 1,500 km (900 miles) or 30 days, "Service in" message is displayed for several seconds each time you set the ignition switch or ENGINE START/STOP Button to the ON position.

Service required

If you do not have your vehicle serviced according to the already inputted service interval, "Service required" message is displayed for several seconds each time you set the ignition switch or ENGINE START/STOP Button to the ON position.

To reset the service interval to the mileage and days you inputted before:

Press the OK button (RESET) for more than 1 second.

NOTICE

If any of the following conditions occurs, the mileage and days may be incorrect.

The battery cable is disconnected.
The battery is discharged.

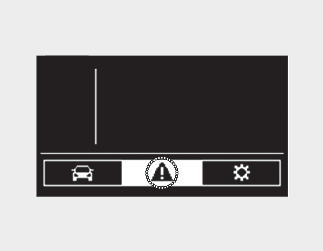

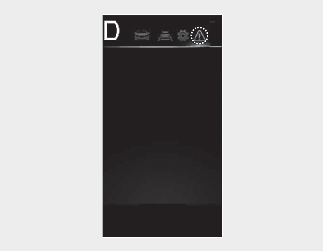

Master warning mode

Type B

Type C

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction (if equipped)
Forward Collision-Avoidance Assist radar blocked (if equipped)
Blind-Spot Collision Warning malfunction (if equipped)
Blind-Spot Collision Warning radar blocked (if equipped)
TPMS failure, low pressure (if equipped), etc.

At this time, a Master Warning icon () will appear on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

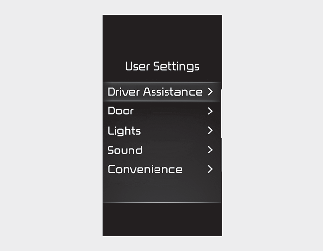

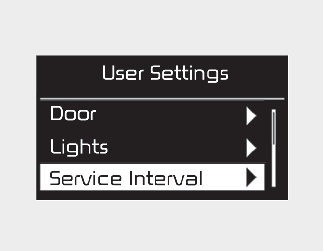

User settings mode

Type B

Type C

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Assistance (Type C)
Door
Lights
Sound (Type C)
Convenience (Type C)
Service Interval
Theme Selection
Other features
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

Settings available after shifting to P/Settings availableafter engaging parking brake (for Type B cluster)

This warning message appears if you try to adjust the User Settings whilst driving.

Automatic Transmission

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

Manual Transmission

For your safety, change the User Settings after engaging the parking brake.

Shift to P to edit settings/Engage parking brake to edit settings (for Type C cluster)

This warning message appears if you try to adjust the User Settings whilst driving.

Automatic Transmission

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

Automated Manual Transmission/Manual Transmission

For your safety, change the User Settings after engaging the parking brake.

1. Driver Assistance (if equipped) (for Type C cluster)

Items	Explanation
Warning Timing	Normal/Late To select the Warning timing
Warning Volume	High/Medium/Low To select the Warning volume
Driver Attention Warning	Inattentive Driving Warning To select the function. * For more details, refer to More Details.
Forward Safety	Active Assist/Warning Only/Off To select the functions. * For more details, refer to More Details/ More Details.
Lane Safety	Lane Keeping Assist/Lane Departure Warning/Off To select the functions. * For more details, refer to More Details.
Blind-Spot Safety	Active Assist/Warning Only/Off To select the function. * For more details, refer to More Details/ More Details.
Parking safety	Rear Cross-Traffic Safety To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist. For more details, refer to More Details/ More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

2. Door

Items	Explanation
Auto Lock	Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Enable on shift (if equipped with Automatic Transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with the Engine ON, it is activated). Off: The auto door unlock operation will be cancelled.
Auto Unlock	Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. On shift to P (if equipped with Automatic Transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with the Engine ON, it is activated). Off: The auto door unlock operation will be cancelled.

Items

Explanation

Auto Lock

Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph)
Enable on shift (if equipped with Automatic Transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with the Engine ON, it is activated).
Off: The auto door unlock operation will be cancelled.

Auto Unlock

Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.
On shift to P (if equipped with Automatic Transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with the Engine ON, it is activated).
Off: The auto door unlock operation will be cancelled.

* The information provided may differ depending on which systems are applicable to your vehicle.

3. Lights

Items	Explanation
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Head lamp delay	If this item is checked, the head lamp delay function will be activated.

Items

Explanation

One Touch Turn Signal

Off: The one touch turn signal function will be deactivated.
3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Head lamp delay

If this item is checked, the head lamp delay function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Sound (if equipped) (for Type C cluster)

Items	Explanation
Welcome Sound	If this item checked, the Welcome Sound function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Convenience (if equipped) (for Type C cluster)

Items	Explanation
Icy Road Warning	If this item checked, the Icy Road Warning function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Service Interval (if equipped)

Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

7. Theme Selection

Items	Explanation
Theme Selection	Theme A/Theme B/Theme C To select the theme of instrument cluster LCD.

Items

Explanation

Theme Selection

Theme A/Theme B/Theme C

To select the theme of instrument cluster LCD.

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Other Features

Items	Explanation
Fuel economy auto reset	Off: The average fuel economy will not reset. After ignition(Type B)/After Vehicle On(Type C)/After refuelling:The average fuel economy will reset automatically after vehicle on/refuelling.
Fuel economy unit	Km/L, L/100Km To select the Fuel economy unit.
Temperature Unit	°C/°F To select the Temperature unit.

Items

Explanation

Fuel economy auto reset

Off: The average fuel economy will not reset.
After ignition(Type B)/After Vehicle On(Type C)/After refuelling:The average fuel economy will reset automatically after vehicle on/refuelling.

Fuel economy unit

Km/L, L/100Km

To select the Fuel economy unit.

Temperature Unit

°C/°F

To select the Temperature unit.

* The information provided may differ depending on which functions are applicable to your vehicle.

9. Language

Items	Explanation
Language	To select language.

10. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
