1. Detach the speed restriction label (1) from the sealant bottle (2), and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too fast.

   Carefully follow below steps.

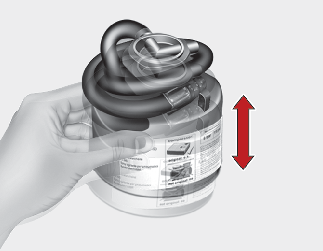

2. Shake the sealant bottle.

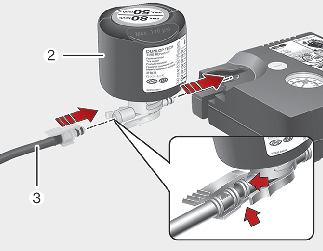

3. Connect the filling hose (3) onto the connector of the sealant bottle (A).

4. Ensure that button (9) on the compressor is not pressed.

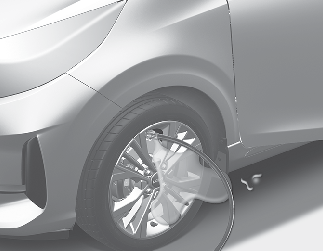

5. Unscrew the valve cap from the valve of the flat tyre and screw filling hose (3) of the sealant bottle (2) onto the valve.

6. Insert the sealant bottle into the housing of the compressor so that the bottle is upright.

7. Ensure that the compressor is switched off, position 0.




   CAUTION

   Securely install the sealant filling hose to the valve. If not, sealant may flow backward, possibly clogging the filling hose.

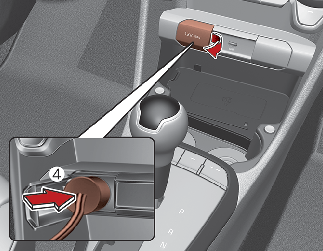

8. Connect between compressor and the vehicle power outlet using the cable and connectors (4).



9. With the ENGINE START/STOP button position on or ignition switch position on, switch on the compressor and let it run for approximately 5~7 minutes to fill the sealant up to roper pressure. The inflation pressure of the tyre after filling is unimportant and will be checked/corrected later.

   Be careful not to overinflate the tyre and stay away from the tyre when filling it.

   When the tyre and wheel are damaged, do not use Tyre Mobility Kit for your safety.



   CAUTION

   Tyre pressure

   Do not attempt to drive your vehicle if the tyre pressure is below 230 kPa (33 psi). This could result in an accident due to sudden tyre failure.

10. Switch off the compressor.

11. Detach the hoses from the sealant bottle connector and from the tyre valve.

Return the TMK to its storage location in the vehicle.
