LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Driving Assist	Turn By Turn (TBT)*	Information/Master Warning
Up/Down	Current Trip	Lane Keeping Assist* Smart Cruise Control* Navigation-based Smart Cruise Control* Lane Following Assist* Highway Driving Assist*	Route Guidance	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Since Refueling		Destination Info
	Since Last Reset
	Engine Temperature
	Tire Pressure Monitoring System*
	Energy Flow

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

Trip computer mode

A: Current Trip

Trip
Timer
Avg.

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

* For more details, refer to More Details.

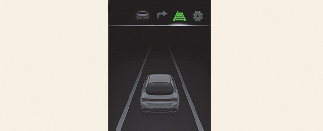

Driving Assist mode

This mode displays the state of:

Lane Safety system (if equipped)
Smart Cruise Control (if equipped)
Lane Following Assist (if equipped)
Tire pressure

* For more details, refer to each system information in More Details.

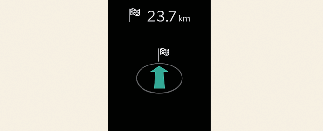

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

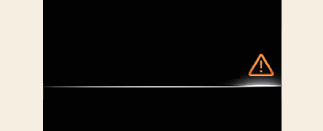

Master warning mode

This warning light informs the driver the following situations.

Driver assistance system malfunction, limitation or radar/camera blockage (if equipped)
LED headlamp malfunction
Lamp malfunction
High Beam Assist malfunction (if equipped)
TPMS failure, low tire pressure, etc.

At this time, a Master Warning icon () will appear. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.
