Trip information (trip computer)

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

NOTICE

Some driving information stored in the trip computer resets if the battery is disconnected.

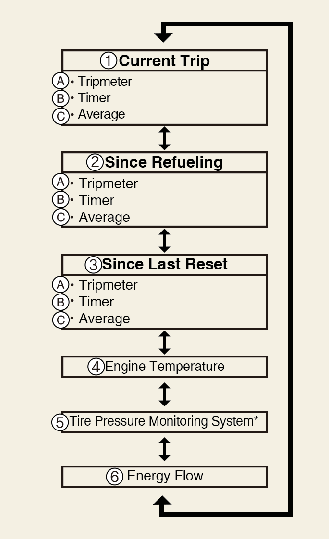

Trip modes

A: Tripmeter

B: Timer

C: Average

  1. Current Trip

  2. Since Refueling

  3. Since Last Reset

  4. Engine Temperature

  5. Tire Pressure Monitoring System

  6. Energy Flow

*: if equipped

To change the trip mode, scroll the toggle the switch (/) on the steering wheel.

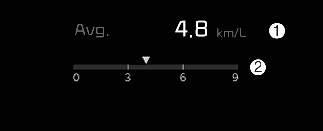

Fuel economy

This information is always displayed at the bottom center of the Full LCD cluster.

  1. Average energy economy

  2. Instant energy economy

Average Fuel Economy (1)

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

    • Fuel economy range: 0 ~ 99.9 km/L, L/100 km or mpg

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 50 meters (0.03 miles) since the ENGINE START/STOP button is turned to ON.

Instant Fuel Economy (2)

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 10 km/h (6.2 mph).

    • Fuel economy range:

      0.0 ~ 30 km/L, L/100 km or 0.0 ~ 50.0 mpg

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

A: Since Last Reset

  1. Trip

  2. Timer

  3. Avg.

  • Accumulated information is calculated after the vehicle has run for more than 300 meters.

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

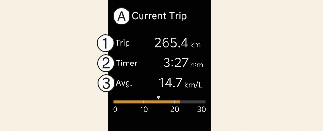

Drive info display

This display shows the trip distance, the average fuel efficiency, and the total driving time information once per one ignition cycle.

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • Fuel efficiency is calculated after the vehicle has run for more than 300 meters.

  • The information will automatically reset when the driver's door is opened after the ignition is turned off, or approximately 3 minutes have passed after the ignition is turned off.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

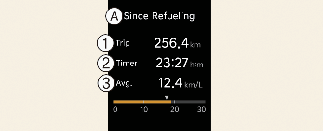

Information since refueling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

A: Sine Refueling

  1. Trip

  2. Timer

  3. Avg.

  • Information since refueling is calculated after the vehicle has run for more than 300 m (0.19 miles).

  • If you press "OK" button for more than 1 second after the information since refueling is displayed, the information will be reset.

    When driving after refueling, the information will be automatically reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

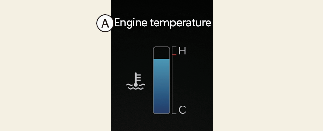

Engine coolant temperature

A: Engine temperature

This gauge indicates the temperature of the engine coolant when the engine is running.

NOTICE

When the gauge indicator gets out of the normal range, toward the "130 or H (Hot)" position, it indicates overheating of the engine. It may damage the engine. Do not continue driving with the over heated engine.

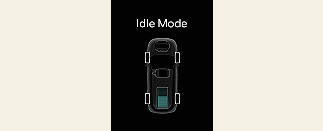

Energy flow

The hybrid system informs the driver about its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

* For more details, refer to More Details.

Contains Topics
Service mode
