Jump starting

In the event vehicle still does not have a functional 12V battery (check if interior lights will not turn on) then you can try a jump start to the engine compartment jumper terminals using a 12V booster pack or jumper cables from another vehicle’s 12V battery according to the following instructions.

CAUTION

Jump starting can be dangerous if done incorrectly. Follow the jump starting procedure in this section to avoid serious injury or damage to your vehicle. If in doubt about how to properly jump start your vehicle, we strongly recommend that you have a service technician or towing service do it for you.

1
Position the vehicles close enough that the jumper cables will reach, but do not allow the vehicles to touch. Avoid fans or any moving parts in the engine compartment at all times, even when the vehicles are turned off.
2
Turn off all electrical devices such as radios, lights, air conditioning, etc.

Put the vehicles in P (Park) and set the parking brake. Turn both vehicles OFF.

3

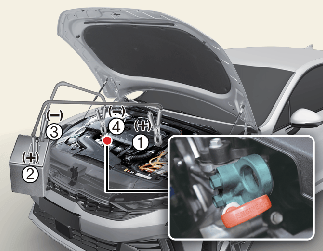

Connect the jumper cables in the exact sequence shown in the illustration. First connect one jumper cable to the charging terminal inside the engine compartment fuse panel (1).
4
Connect the other end of the jumper cable to the red, positive (+) battery/ jumper terminal of the assisting vehicle (2).
5
Connect the second jumper cable to the black, negative (-) battery/chassis ground of the assisting vehicle (3).
6
Connect the other end of the second jumper cable to the black, negative (-) chassis ground of your vehicle (4).

Do not allow the jumper cables to contact anything except the correct battery or jumper terminals or the correct ground. Do not lean over the battery when making connections.

7

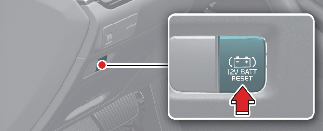

Press the 12V Battery Reset button.
8
Start the engine of the assisting vehicle and let it run for a few minutes.
9
Start your vehicle as soon as possible. After starting the vehicle ( indicator on), operate the vehicle safely outdoors in ready mode stopped and/or drive it for 30 minutes total to charge the 12V battery fully.

If your vehicle will not start after a few attempts, it probably requires servicing. In this event please seek qualified assistance. If the cause of your battery discharging is not apparent, have your vehicle inspected by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.

Disconnect the jumper cables in the exact reverse order you connected them:

1
Disconnect the jumper cable from the black, negative (-) chassis ground of your vehicle (4).
2
Disconnect the other end of the jumper cable from the black, negative (-) battery/chassis ground of the assisting vehicle (3).
3
Disconnect the second jumper cable from the red, positive (+) battery/ jumper terminal of the assisting vehicle (2).
4
Disconnect the other end of the jumper cable from the charging terminal inside the engine compartment fuse panel (1).
NOTICE

The voltage range of the charger should be 13.3~14V and its current range should be less than 60A. (13.8V is recommended).

CAUTION

  • The use of an improper charger with a voltage and current range higher than specified may cause overheating and damage to the 12V battery.

  • The use of an incorrect charger will lead to a power shut-off to save the 12V battery. Stop using the incorrect charger once the power of the vehicle is shut off.

NOTICE

An inappropriately disposed battery can be harmful to the environment and human health. Dispose the battery according to your local law(s) or regulation.

NOTICE

To prevent damage to your vehicle:

  • Only use a 12-volt power supply (battery or jumper system) to jump start your vehicle.

  • Do not attempt to jump start your vehicle by push-starting.
