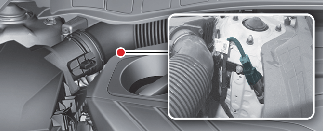

12V auxiliary battery connector
Disconnect the 12V auxiliary battery connector located inside the engine room compartment to shut down the power of the 12V auxiliary battery.Connect the 12V auxiliary battery connector again after the battery related maintenance is finished.
-
The efficiency of the battery decreases during low temperature. If the vehicle is not used for the extended period of time, park the vehicle indoors if possible.
-
Always keep the battery charged to the full capacity. The battery case may damage due to freezing if the battery capacity is low.
-
Do not install unauthorized electrical devices (e.g. lamps, dashcam, etc.) to a vehicle. It may discharge the battery.
-
Do not open or remove the cap on top of the battery. This may cause leaks of internal electrolyte that could result in severe injury.
Reset items
Items should be reset after the battery has been discharged or the battery has been disconnected.
-
Auto up/down window (if equipped)
-
Sunroof (if equipped)
-
Trip computer
-
Climate control system
-
Driver position memory system (if equipped)
-
Integrated memory system (if equipped)
-
Infotainment system (if equipped)
-
Audio (if equipped)
