Wipers and washers

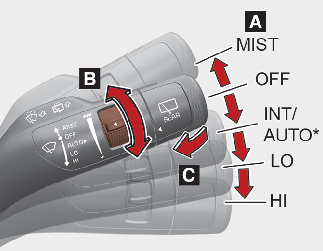

A: Wiper speed control
-
MIST – Single wipe
-
OFF – Off
-
INT – Intermittent wipe
AUTO* – Auto control wipe
-
LO – Low wiper speed
-
HI – High wiper speed
B: Intermittent control wipe time adjustment/Auto control wipe time adjustment*
C: Wash with brief wipes (Pull lever towards you)

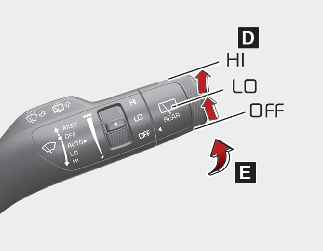

D: Rear wiper/washer control
-
HI - Continuous wipe
-
LO - Intermittent wipe
-
OFF - Off
E: Wash with brief wipes (Rear/Push lever away from you)
*: if equipped
Windshield wipers
Operate as follows when the ignition switch or ENGINE START/STOP button is ON.
-
MIST: For a single wiping cycle, move the lever to this position and release it. The wipers will operate continuously if the lever is held in this position.
-
OFF: Wiper is not in operation
-
INT: Wiper operates intermittently at the same wiping intervals. Use this mode in light rain or mist. To vary the speed setting, turn the speed control knob.
-
LO: Normal wiper speed
-
HI: Fast wiper speed
If there is heavy accumulation of snow or ice on the windshield, defrost the windshield for about 10 minutes, or until the snow and/or ice is removed before using the windshield wipers to ensure proper operation. If you do not remove the snow and/or ice before using the wiper and washer, it may damage the wiper and washer system.
Do not use the washer in freezing temperatures without first warming the windshield with the defrosters; the washer solution could freeze on the windshield and obscure your vision.
