Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

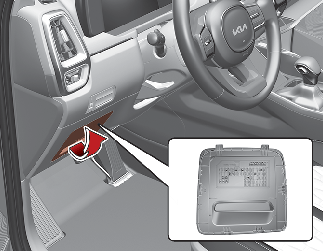

Driver's side fuse panel
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
 |
25A |
AMP (Amplifier) |
 |
30A |
Low DC (Direct Current)-DC (Direct Current) Converter |
 |
30A |
Driver Power Seat Switch, IMS (Integrated memory system) Control Module |
 |
25A |
Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Safety Power Window Module, Driver Power Window Switch |
 |
30A |
Passenger Power Seat Switch |
 |
20A |
SEAT_AST Air Ventilation Seat Warmer, SEAT_AST Seat Warmer, Data Link Connector |
 |
15A |
2nd Seat Warmer LH Control Module |
 |
20A |
2nd Seat RH Folding Actuator |
 |
25A |
Rear Power Window Switch RH, Rear Safety Power Window Module RH, Passenger Power Window Switch, Passenger Safety Power Window Module |
 |
15A |
Tail Gate Relay |
 |
20A |
2nd Seat LH Folding Actuator |
 |
20A |
Door Lock/Unlock Relay, Dead Lock Relay |
 |
10A |
Rear A/C Control Module |
 |
25A |
Low DC (Direct Current)-DC (Direct Current) Converter |
 |
15A |
2nd Seat Warmer RH Control Module |
 |
10A |
Head-Up Display, Rear A/C Control Module, Front A/C Control Module, Front A/C Control Panel, Low DC (Direct Current) -DC (Direct Current) Converter, Surround View Monitor Unit |
 |
10A |
Ignition Switch |
 |
10A |
Luggage USB Charge Connector LH/RH |
 |
15A |
Rear Console USB Charge Connector LH/RH, USB_SEAT_DRV, USB_SEAT_AST |
 |
7.5A |
IBU (Integrated Body Control Unit), ADAS Unit, Front View Camera, Crash Pad Switch, Surround View Monitor Unit, 4WD ECU, Front Console Switch, Rear Corner Radar LH/RH |
 |
15A |
SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor |
 |
15A |
Multifunction Switch |
 |
10A |
ADAS Unit, Surround View Monitor Unit, IBU (Integrated Body Control Unit), Front USB Charge Connector LH/RH, Low DC (Direct Current) - DC (Direct Current) Converter |
 |
10A |
Key Solenoid, Driver/Passenger Smart Key Outside Handle, Driver Door Area Unit, Driver/PassengerPower Outside Mirror, Power Tailgate Unit, ROA, Driver Air Ventilation Seat Control Module, Driver Seat Warmer Control Module |
 |
7.5A |
IBU (Integrated Body Control Unit) |
 |
7.5A |
Driver Door Area Unit, ATM (Automatic Transmission) Shift Lever |
 |
15A |
Rear A/C Blower Motor, ICU Junction Block (Fuse - Rear A/C Control Module) |
 |
7.5A |
Instrument Cluster, Overhead Console |
 |
7.5A |
ADAS Unit, Rear Console AC Inverter Outlet, AC Inverter, 2nd Seat Warmer LH/RH Control Module, Rear A/C Control Module, SEAT_AST Air Ventilation/SEAT_AST Seat Warmer Control Module |
 |
15A |
IBU (Integrated Body Control Unit), RAIN SNSR |
 |
10A |
Stop Lamp Switch |
 |
10A |
AMP (Amplifier), Front Wireless Charger Unit, Low DC (Direct Current) - DC (Direct Current) Converter |
 |
7.5A |
Front A/C Control Module, Front A/C Control Panel, E/R Junction Block (PTC (Positive Temperature Coefficient) Heater #1 Relay, Blower Relay) |
 |
10A |
SRS (Supplemental Restraint System) Control Module |
 |
7.5A |
Instrument Cluster, Head-Up Display |
 |
10A |
Audio, Data Link Connector, Front A/C Control Panel, Front A/C Control Module, Crash Pad Switch, Electro Chromic Mirror, 1st Air Ventilation Seat Control Module, 2nd Seat Warmer LH/RH Control Module |
 |
7.5A |
IBU (Integrated Body Control Unit) |
 |
10A |
Surround View Monitor Unit, Instrument Cluster, ADAS Unit, Front A/C Control Panel, Front A/C Control Module, Front Wireless Charger Unit, Head-Up Display |
 |
7.5A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
 |
7.5A |
MDPS (Motor Driven Power Steering) Unit * MDPS is the same as EPS (Electric Power Steering). |
Engine compartment fuse panel
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
 |
80A |
Cooling Fan Motor |
 |
60A |
TCM (Transmission Control Module) |
|
 |
50A |
E/R Junction Block (PTC (Positive Temperature Coefficient) Heater #1 Relay) |
|
 |
50A |
ICU Junction Block (IPS) |
|
 |
50A |
E/R Junction Block (E-CVVT (Electric - Continuously variable valve timing) Relay) |
|
 |
40A |
Electronic Oil Pump |
|
 |
40A |
ESC (Electronic Stability Control) Control Module |
|
 |
30A |
ESC (Electronic Stability Control) Control Module |
|
|
MULTI FUSE-2 |
 |
100A |
MDPS (Motor Driven Power Steering) Unit * MDPS is the same as EPS (Electric Power Steering). |
 |
60A |
Cooling Fan Motor |
|
 |
60A |
PCB Junction Block (Start Relay, IG2 Relay, IG1 Relay, ACC Relay) |
|
 |
60A |
Electronic Oil Pump |
|
 |
50A |
ICU Junction Block (Fuse - P/SEAT (DRV), P/WINDOW (LH), P/SEAT (PASS), S/HEATER (REAR LH), 2nd ROW SEAT FOLDING (RH)) |
|
 |
40A |
E/R Junction Block, (Rear Heated Relay) |
|
 |
40A |
Power Tailgate Unit |
|
 |
40A |
Sunroof Motor (Glass) |
|
|
FUSE |
 |
60A |
ESC (Electronic Stability Control), Control Module |
 |
50A |
ICU Junction Block (IPS) |
|
 |
20A |
[Smartstream 2.5 T-GDi] E/R Junction Block (Vacuum Pump Relay |
|
 |
20A |
E/R Junction Block (Fuel Pump Relay) |
|
 |
15A |
PCB Junction Block (Child Lock/Unlock Relay) |
|
 |
50A |
E/R Junction Block (Blower Relay) |
|
 |
50A |
ICU Junction Block (Fuse - AMP, LDC, S/HEATER (REAR RH), P/WINDOW (RH), 2nd ROW SEAT FOLDING (LH)) |
|
 |
30A |
Trailer Module |
|
 |
30A |
AC Inverter |
|
 |
40A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - TAILGATE OPEN, DOOR LOCK, S/HEATER (REAR RH), START, 9 MODULE, 2IBU, 2A/BAG, BRAKE SWITCH) |
|
 |
20A |
4WD ECU |
|
 |
15A |
PCM (Power train Control Module) |
|
 |
10A |
Battery Sensor |
|
 |
10A |
ESC (Electronic Stability Control), Control Module |
|
 |
20A |
PCM (Power train Control Module) |
|
 |
10A |
Front A/C Control Panel, Front A/C Control Module, Driver/Passenger Power Outside Mirror |
|
 |
10A |
Front A/C Control Module |
|
 |
20A |
PCM (Power train Control Module) |
|
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
 |
40A |
E/R Junction Block (Start Relay), PCB Junction Block (IG2 Relay) |
 |
40A |
PCB Junction Block (IG1 Relay, ACC Relay) |
 |
7.5A |
IBU (Integrated Body Control Unit) |
 |
20A |
Ignition Coil #1/#2/#3/#4 |
 |
10A |
Electronic Oil Pump |
 |
10A |
PCM (Power train Control Module) |
 |
10A |
E/R Junction Block (Fuel Pump Relay) |
 |
20A |
PCM (Power train Control Module) |
 |
15A |
Oxygen Sensor (Up/Down) |
 |
30A |
Front Wiper Motor, Front Wiper (Low) Relay |
 |
15A |
Rear Wiper Relay, Rear Wiper Motor |
 |
15A |
Horn Relay |
 |
10A |
A/Con Relay |
 |
15A |
B/A Horn Relay |
 |
10A |
TCM (Transmission Control Module) |
 |
10A |
Purge Control Solenoid Valve, PCM (Power train Control Module), Cooling Fan Motor, Oil Control Valve (Exhaust), Variable Oil Pump Solenoid Valve, Canister Close Valve, A/Con Relay, [Smartstream 2.5 GDi] Variable Intake Solenoid Valve [Smartstream 2.5 T-GDi] RCV (Recirculation Valve Control) Control Solenoid Valve |
 |
15A |
Injector #1/#2/#3/#4 |
 |
15A |
PCM (Power train Control Module) |
 |
7.5A |
ESC (Electronic Stability Control) Control Module |
 |
20A |
Rear Console Power Outlet |
 |
20A |
Luggage Power Outlet |
Refer to the following table for the relay type.
|
Symbol |
Relay Name |
TYPE |
|---|---|---|
 |
[Smartstream 2.5 T-GDi] Vacuum Pump Relay |
MICRO |
 |
Start Relay |
MICRO |
 |
Fuel Pump Relay |
MICRO |
 |
E-CVVT (Electric - Continuously variable valve timing) Relay |
MICRO |
 |
PTC (Positive Temperature Coefficient) Heater #1 Relay |
MICRO |
|
|
B/Alarm Horn Relay |
MICRO |
 |
Blower Relay |
MICRO |
 |
Rear Heated Relay |
MINI |

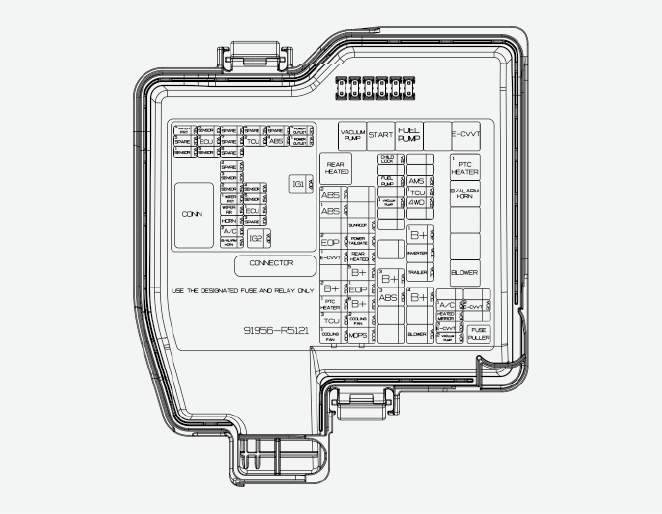

Engine compartment fuse panel (Battery terminal cover)
