Stowing the rear seat belt

The rear seat belt buckles can be stowed in the pocket between the rear seatback and cushion when not in use.

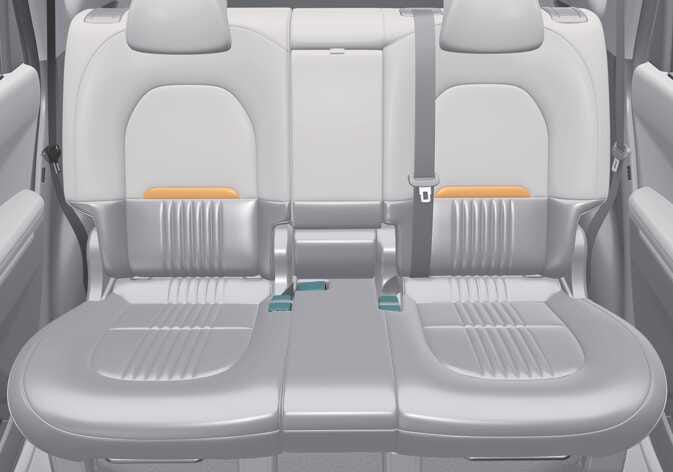

OAYI066019L
  1. Insert the seat belt metal tab into the two holes located on both sides. This will help keep the belts from being trapped behind or under the seats.

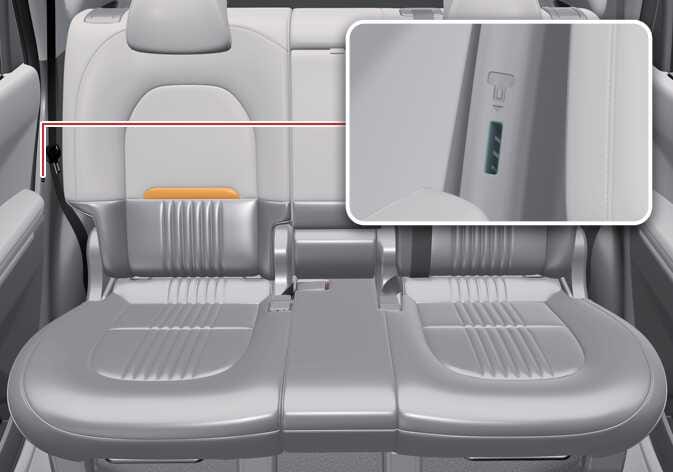

    OAYI066020L
  2. After inserting the seat belt, tighten the belt webbing by pulling it up.
    TIP

    When pulling out the seat belt to wear it, slowly pull the tab out of the seat belt guide so that the guide does not come off the trim.

    WARNING

    Seat belt replacement

    After a collision, the entire seat belt assembly should be replaced, even if damage to the webbing or assembly is not apparent. Always replace any belts that are not functioning properly.

    A properly buckled seat belt will be locked into the buckle on each seat cushion.

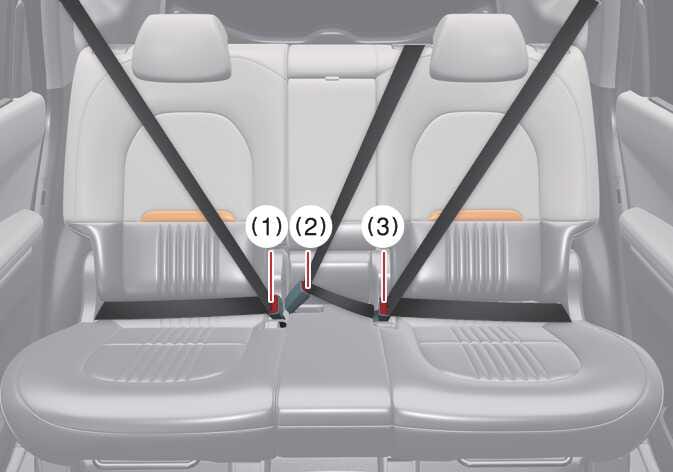

    OAYI066058L

    1. Rear right seat belt buckle

    2. Rear centre seat belt buckle

    3. Rear left seat belt buckle
    WARNING

    Prior to buckling the rear seat belts, ensure that the latch matches the seat belt buckle. Forcefully connecting the left or right seat belt to the centre buckle will not secure the occupant in an accident.
