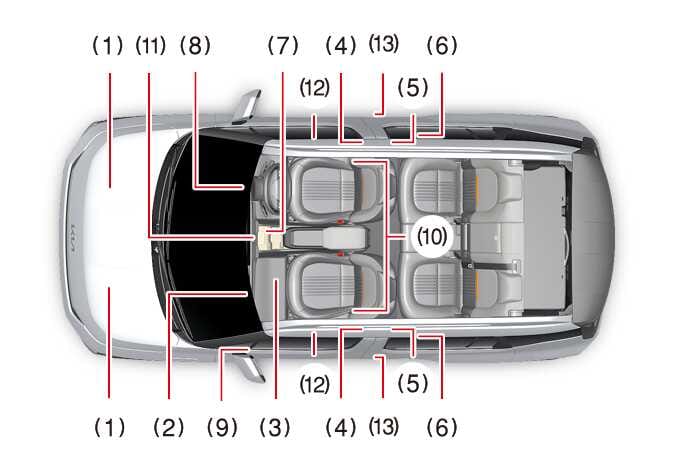

Supplemental Restraint System (SRS) components and functions

OAYIEV066008R

  1. Front impact sensor

  2. Air bag warning light

  3. Passenger’s front air bag module

  4. Side impact sensors*

  5. Retractor pre-tensioner assemblies

  6. Curtain air bag modules*

  7. SRS control module (SRSCM)/ rollover sensor*

  8. Passenger’s front air bag module

  9. Driver’s front air bag ON/OFF switch*

  10. Side air bag modules*

  11. Passenger’s front air bag ON/OFF indicator*

  12. Side pressure sensors*

  13. Side impact sensors*

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

*: if equipped

Operating condition(s)

  • When the vehicle is in the POWER ON or DRIVE READY position, the SRS air bag warning light appears for approximately 6 seconds and then goes out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

  • The light does not turn on briefly when the vehicle is in the POWER ON or DRIVE READY position.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on whilst the vehicle is in motion.

  • The light blinks when the vehicle is in the POWER ON or DRIVE READY position.
