i-Pedal

i-Pedal is controlled using the accelerator pedal. It allows vehicle speed to be controlled without using the paddle shifters manually.

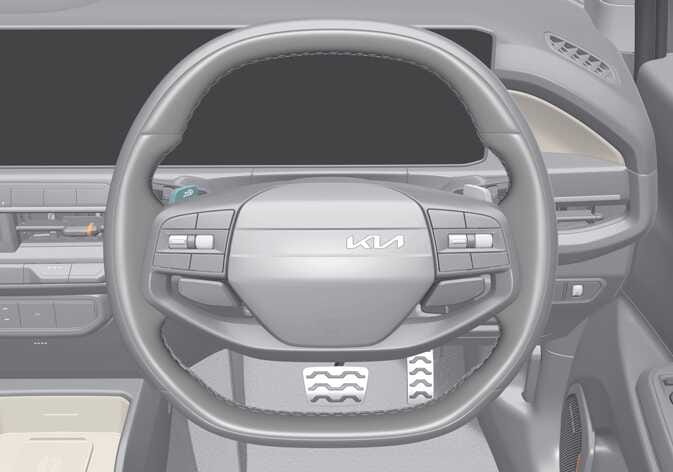

OAYIEV096013R

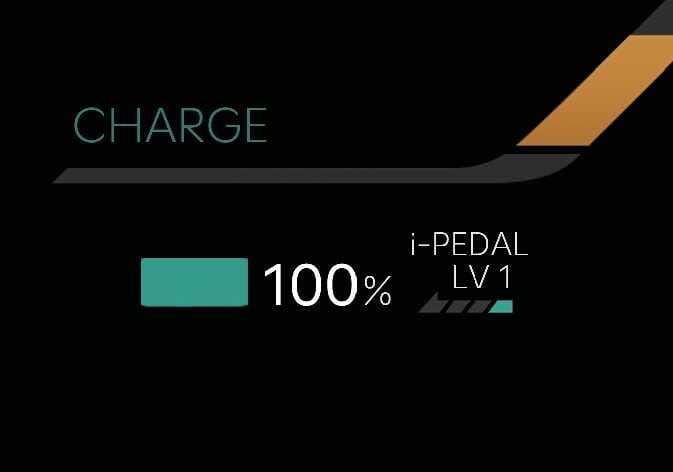

N_QVe27_C00_004_E

  • Pull the left side () of the paddle shifter for more than approximately 1 second at any regenerative braking level.

    i-Pedal will be activated and () indicator will appear on the instrument cluster.

  • Pull the left side () of the paddle shifter again for more than approximately 1 second whilst i-Pedal is activated.

    i-Pedal will be deactivated and () indicator will turn off on the instrument cluster.

CAUTION

When you use i-Pedal to stop or park the vehicle on a steep hill, be sure to engage the brake pedal.

NOTE

  • When i-Pedal is deactivated, () indicator on the instrument cluster will turn gray.

  • When i-Pedal is activated, () indicator on the instrument cluster will turn green.

  • After restarting whilst i-Pedal is available, the regenerative braking level is maintained and turns back on. If the regenerative braking level is at 0, it will turn on at level 1.

i-Pedal settings

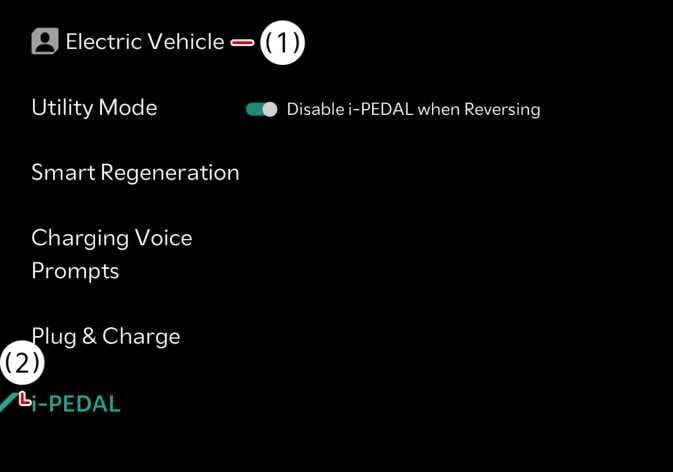

N_CT25_C00_221_A

  1. Electric Vehicle

  2. i-PEDAL

  • Tap Electric Vehicle > > i-PEDAL from the infotainment system whether to use i-Pedal whilst reversing.

  • If Disable i-PEDAL when Reversing is selected, i-Pedal will turn off when shifting into R (Reverse), and it will automatically turn on once the vehicle is shifted to D (Drive) and driving above 20 km/h (12 mph).

  • If Disable i-PEDAL when Reversing is not selected, i-Pedal will automatically turn on when shifting into D (Drive) or R (Reverse).

Non-operating conditions

  • On a road with a steep uphill or downhill slope.

  • At the point where a slope ends.

  • When you start and stop repeatedly on an inclined road.

WARNING

  • Do not solely rely on i-Pedal to stop the vehicle. Stopping the vehicle with i-Pedal may not be possible depending on vehicle and road conditions. Pay attention to the road conditions ahead and engage the brake pedal if necessary.

  • Avoid increasing the regenerative braking level suddenly on slippery roads (such as snowy or icy conditions). Doing so might cause the tyres to slip and the vehicle to skid, which is dangerous due to the loss of the vehicle’s steering force.

CAUTION

The regenerative braking level cannot be changed using the paddle shifter in the following cases:

  • You pull the left () and right () sides of the paddle shifter simultaneously.

  • Cruise Control (CC) or Smart Cruise Control (SCC) is operating.

  • The vehicle’s high-voltage battery is fully charged (100%).

  • You install a trailer.
