Detecting sensor(s)

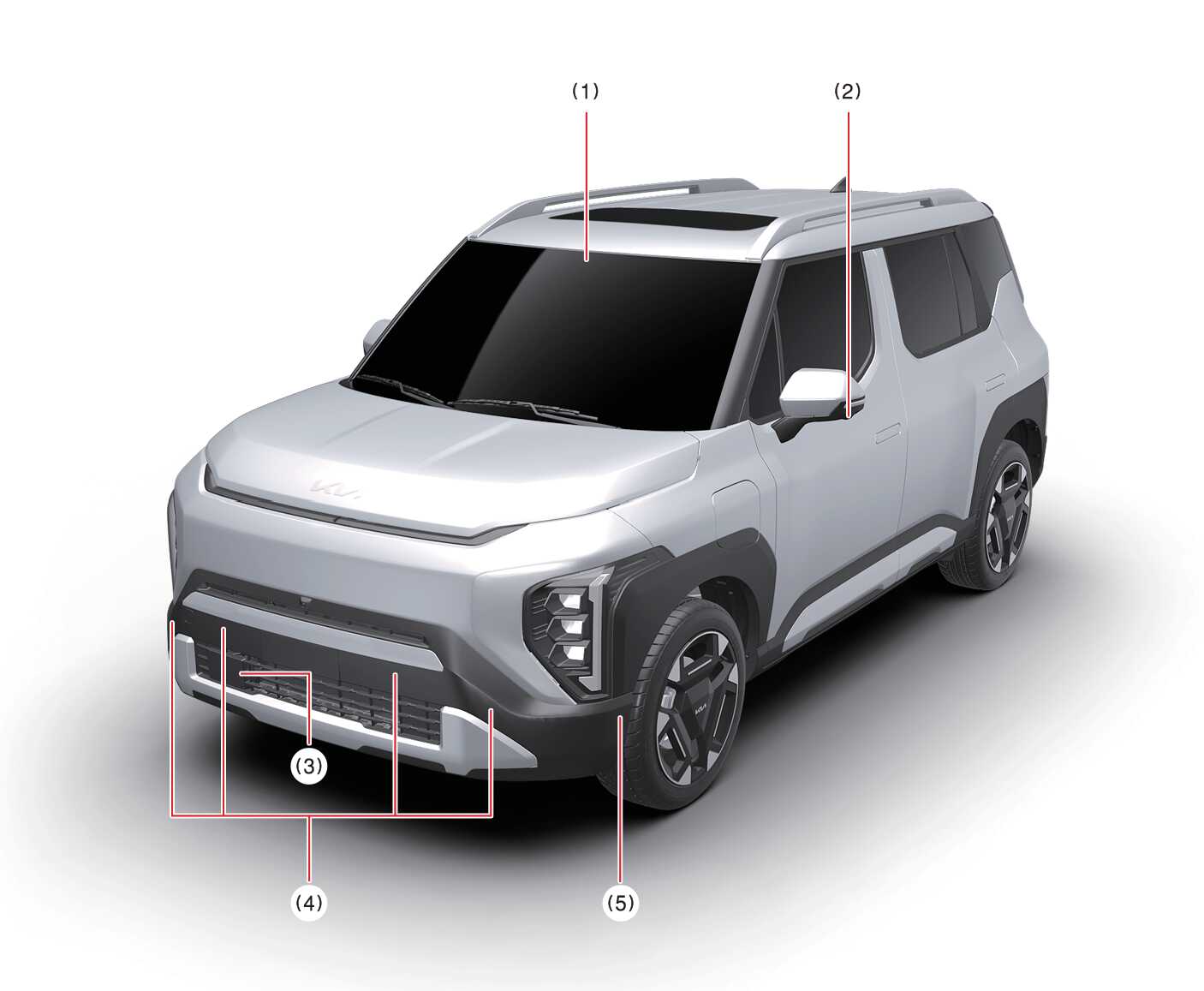

Figure 1. Front view
OAYIEV106001L

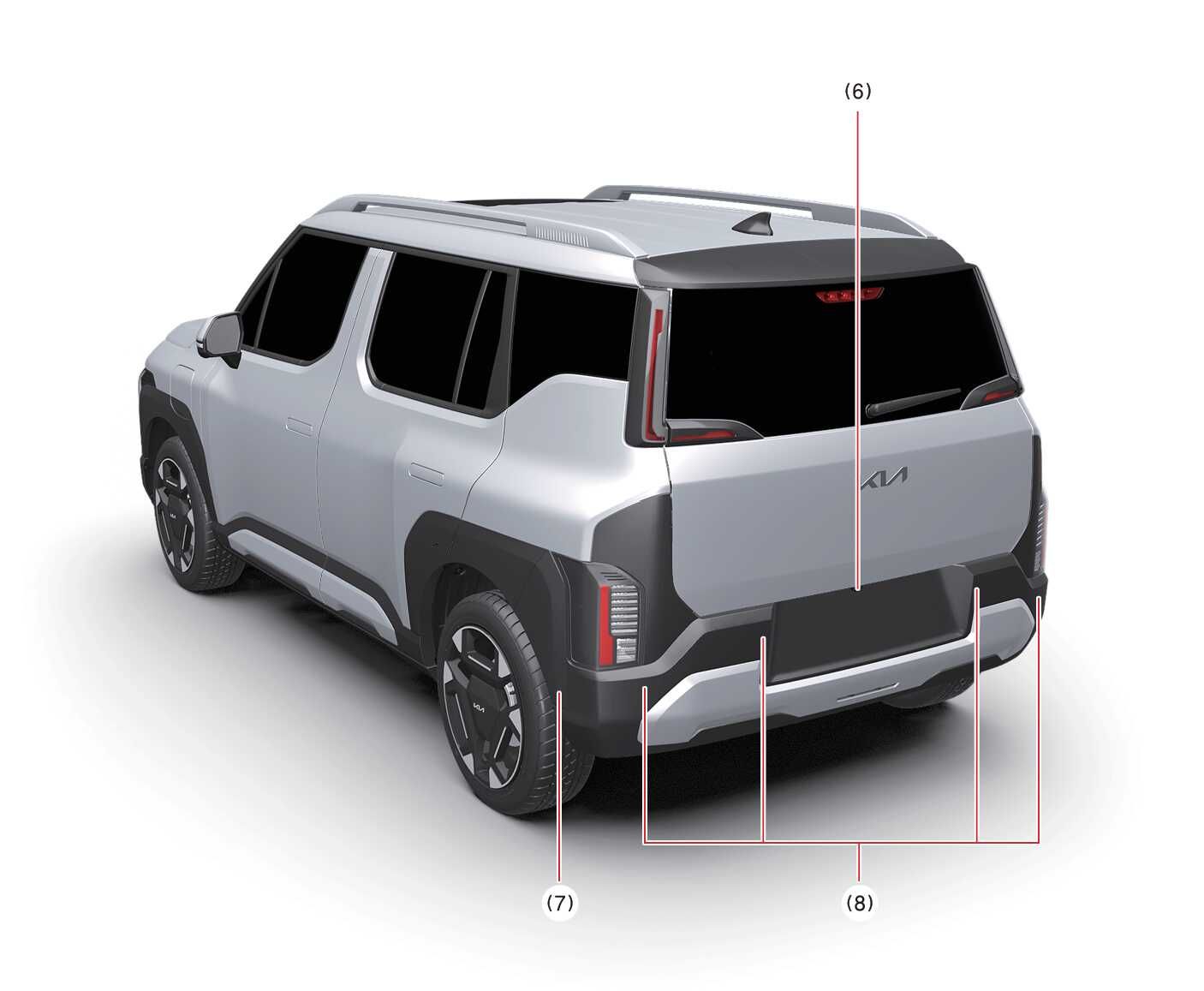

Figure 2. Rear view
OAYIEV106002L

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

(1)

Front view camera*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Lane Keeping Assist (LKA)*

  • Driver Attention Warning (DAW)*

  • Smart Cruise Control (SCC)*

  • Lane Following Assist (LFA)*

  • High Beam Assist (HBA)*

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

(3)

Front radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Smart Cruise Control (SCC)*

(4)

Front ultrasonic sensors*

  • Parking Distance Warning (PDW)*

(5)

Front side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

(6)

Wide-rearview camera*

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(7)

Rear ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(8)

Rear side ultrasonic sensors*

  • Parking Distance Warning (PDW)*
