Front wiper blade replacement

OAYIEV126028

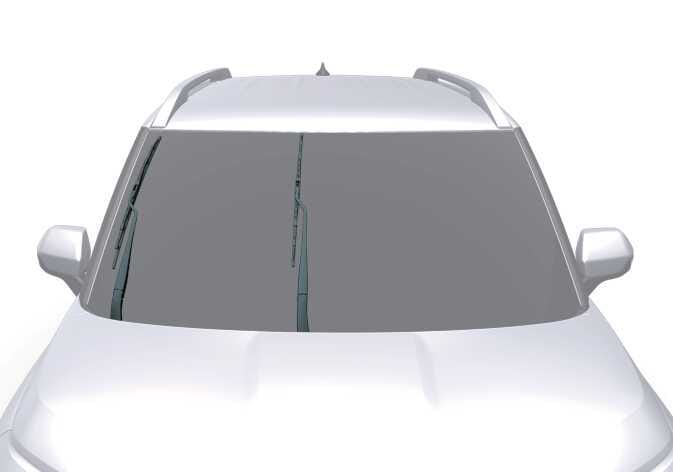

To replace the wiper blade, lift the arm first and replace the windscreen wiper blades as per procedure.

OAYIEV126029
NOTE

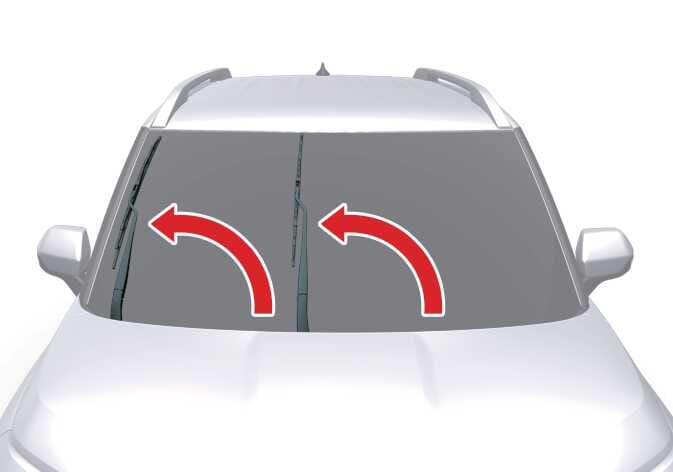

Wiper arms

Do not allow the wiper arm to fall against the windscreen, as it may crack or chip the glass.

  1. Raise the wiper arm.

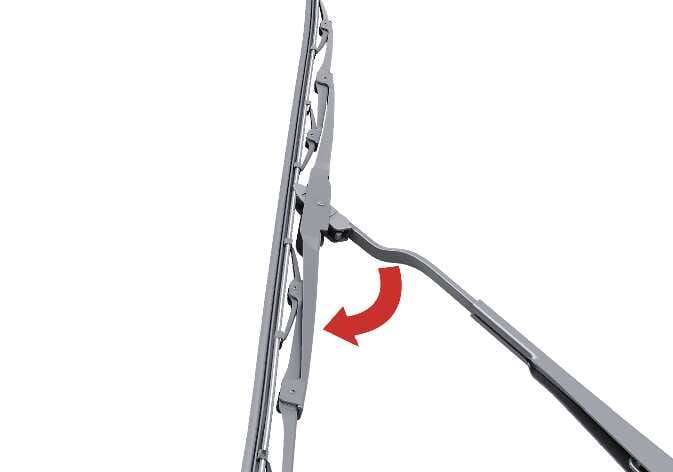

  2. Rotate the wiper blade in the direction of the arrow.
    N_SP3i26_B12_090_I

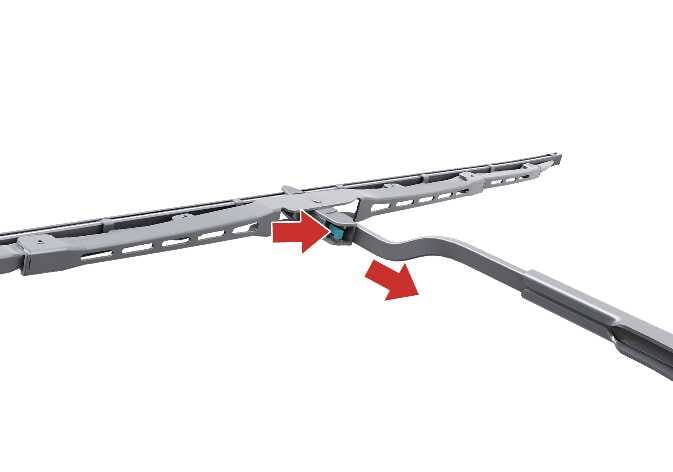

  3. Remove the front wiper blade by pressing the lock pin in the direction of the arrow.
    N_SP3i26_B12_091_I
  4. Make sure that both blade assemblies are installed firmly by trying to pull them slightly.
  5. Return the wiper arms to the windscreen.
  6. Start the vehicle to the ON position to return the wiper arms to their normal operating position.
