Fuse/relay panel description
In this section, you can find the fuse/relay label describing the fuse/relay name and capacity.
Whilst the fuse panel descriptions in this manual are accurate at the time of printing, not all fuse panel descriptions may apply to your vehicle.

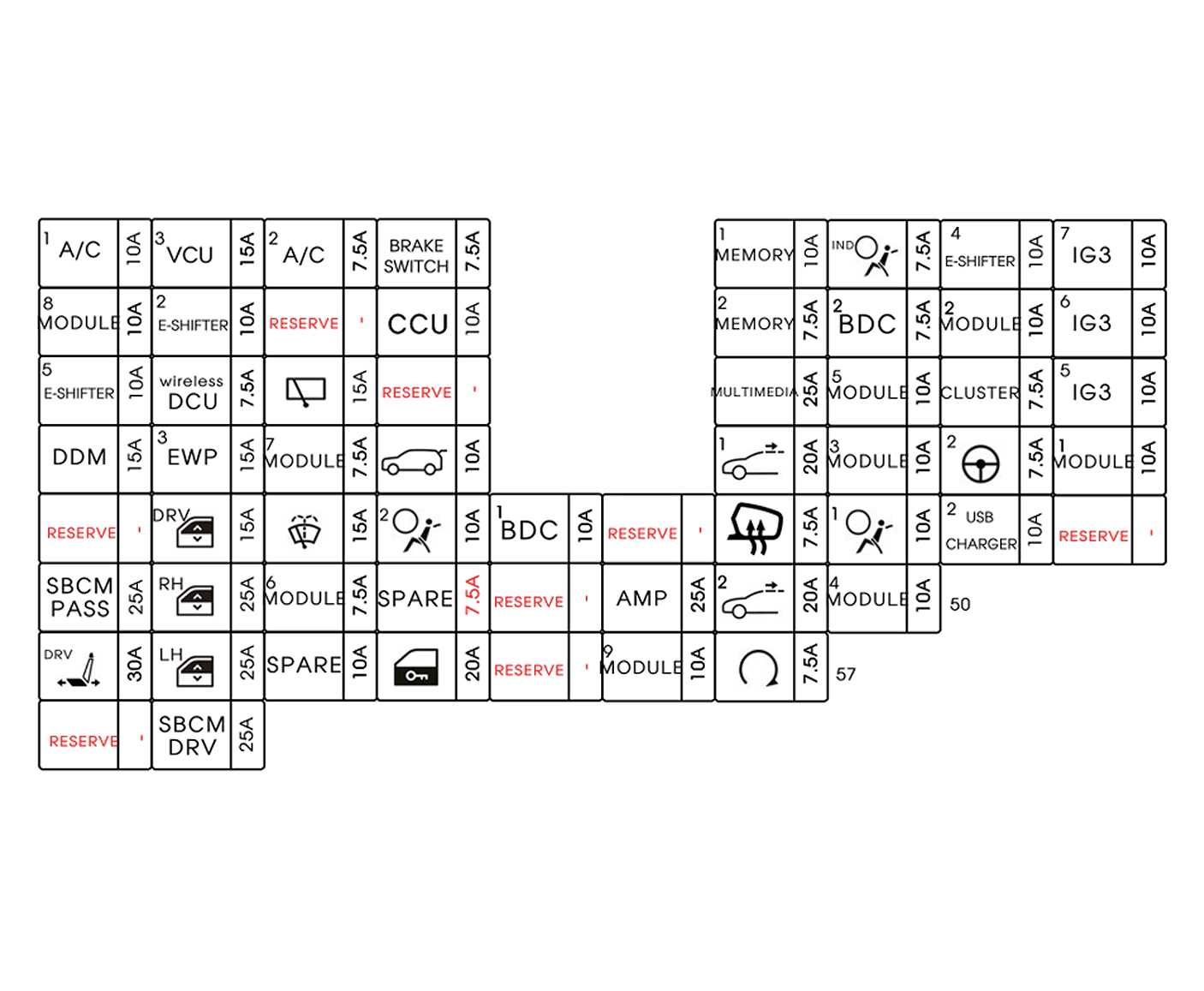

Driver side fuse panel
 OAYIEV126020R |
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
A/C_1 |
|
10A |
FATC BATT_EXV |
|
VCU_3 |
|
15A |
VPC |
|
A/C_2 |
|
7.5A |
A/CON (FATC) FATC PANEL |
|
BRAKE SWITCH |
|
7.5A |
BDC STOP LAMP SW |
|
MEMORY_1 |
|
10A |
FATC FATC_PANEL PIO_DASHCAM USB_DATA_CHARGING CONSOLE_EXTN SAL_UNIT_A FOOT_LP_PASS CCNC_KEYBOARD MOOD_LP_DRV MOOD_LP_PASS ADAS_PRK_ECU FOOT_LP_DRV |
|
A/BAG IND |
|
7.5A |
OHCL |
|
E-SHIFTER_4 |
|
10A |
SCU_EV SBW |
|
IG3_7 |
|
10A |
V2L SIG |
|
MODULE_8 |
|
10A |
HAZARD SW MUT VESS_UNIT C_C_LAMP |
|
E-SHIFTER_2 |
|
10A |
SCU_EV |
|
CCU |
|
10A |
CCU |
|
MEMORY_2 |
|
7.5A |
CLUSTER PHOTO SNSR SECURITY WPC BDC |
|
BDC_2 |
|
7.5A |
BDC |
|
MODULE_2 |
|
10A |
CCU STOP LAMP SW |
|
IG3_6 |
|
10A |
C_CHARGER_100W FATC FATC_PANEL INCAR_SNSR PTC_HTR_SIG IN_PM_SNSR CCU |
|
E-SHIFTER_5 |
|
10A |
SBW |
|
WIRELESS DCU |
|
7.5A |
DCU |
|
WIPER RR |
|
15A |
RR WIPER RLY RR WIPER |
|
MULTIMEDIA |
|
25A |
CCNC |
|
MODULE_5 |
|
10A |
WPC C_PAD_LWR I_S_MIRR PIO_DASHCAM ccNC_B CDU MUT DCU SEAT_EXTN_DRV AMP_A SEAT_EXTN_RL H_LP_MFR_LH/RH (HLLD) |
|
CLUSTER |
|
7.5A |
CLUSTER |
|
IG3_5 |
|
10A |
CLUSTER CDU CCNC |
|
DDM |
|
15A |
POWER WINDOW SW (DRV) |
|
EWP_3 |
|
15A |
EWP_BATT_FRNT |
|
MODULE_7 |
|
7.5A |
SEAT EXTN DRV/RL |
|
TAILGATE OPEN |
|
10A |
TAILGATE LATCH |
|
SUNROOF_1 |
|
20A |
SUNROOF (GLASS MTR) |
|
MODULE_3 |
|
10A |
POWER WINDOW SW (DRV) |
|
MDPS_2 |
|
7.5A |
MDPS |
|
MODULE_1 |
|
10A |
ADAS_PRK_ECU AMP DCU CCU CCNC CCNC KEYBOARD BDC |
|
P/WINDOW DRV |
|
15A |
POWER WINDOW UP/DOWN RLY |
|
WASHER |
|
15A |
MULTI FUNCTION SW (WASHER) |
|
AIR BAG_2 |
|
10A |
ACU |
|
BDC_1 |
|
10A |
BDC OS MIRR (DRIV/PASS) DRV HDL NFC DRV HDL TOUCH PASS HDL TOUCH |
|
HEATED MIRROR |
|
7.5A |
O_S_MIRR_MTR_DRV/PASS_OPT (HTD) |
|
AIR BAG_1 |
|
10A |
ACU |
|
USB CHARGER_2 |
|
10A |
USB CHARGER FRT/RR USB CHARGER 100W |
|
SBCM PASS |
|
25A |
SBCM PASS |
|
P/WINDOW RH |
|
25A |
RHD: SAFETY_ECU_DRV LHD: P_WDW_SW_PASS / SAFETY_ECU_PASS P_WDW_SW_RR / SAFETY_ECU_RR |
|
MODULE6 |
|
7.5A |
BDC |
|
SPARE |
7.5A |
SPARE |
|
|
AMP |
|
25A |
AMP |
|
SUNROOF_2 |
|
20A |
SUNROOF (BLIND MTR) |
|
MODULE_4 |
|
10A |
FRT CAMERA MUT ADAS PRK ECU FRT RADAR |
|
P/SEAT DRV |
|
30A |
SEAT EXTN DRV (PWR SEAT) |
|
P/WINDOW LH |
|
25A |
LHD: SAFETY_ECU_DRV RHD: P_WDW_SW_PASS / SAFETY_ECU_PASS P_WDW_SW_RL / SAFETY_ECU_RL |
|
SPARE |
10A |
SPARE |
|
|
DOOR LOCK |
|
20A |
DR ACTR (DRIV/PASS/RL/RR) |
|
MODULE_9 |
|
10A |
SEAT EXTN DRV (VENT BLOWER B+) SEAT EXTN RL (VENT BLOWER B+) |
|
START |
|
7.5A |
VPC BDC |
|
SBCM DRV |
|
25A |
SBCM DRV |

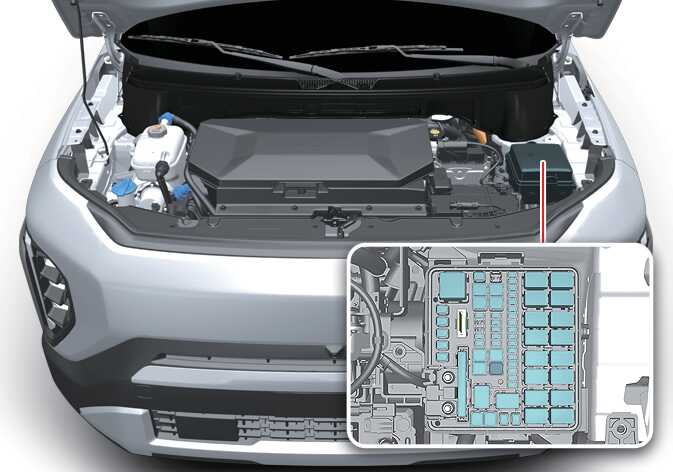

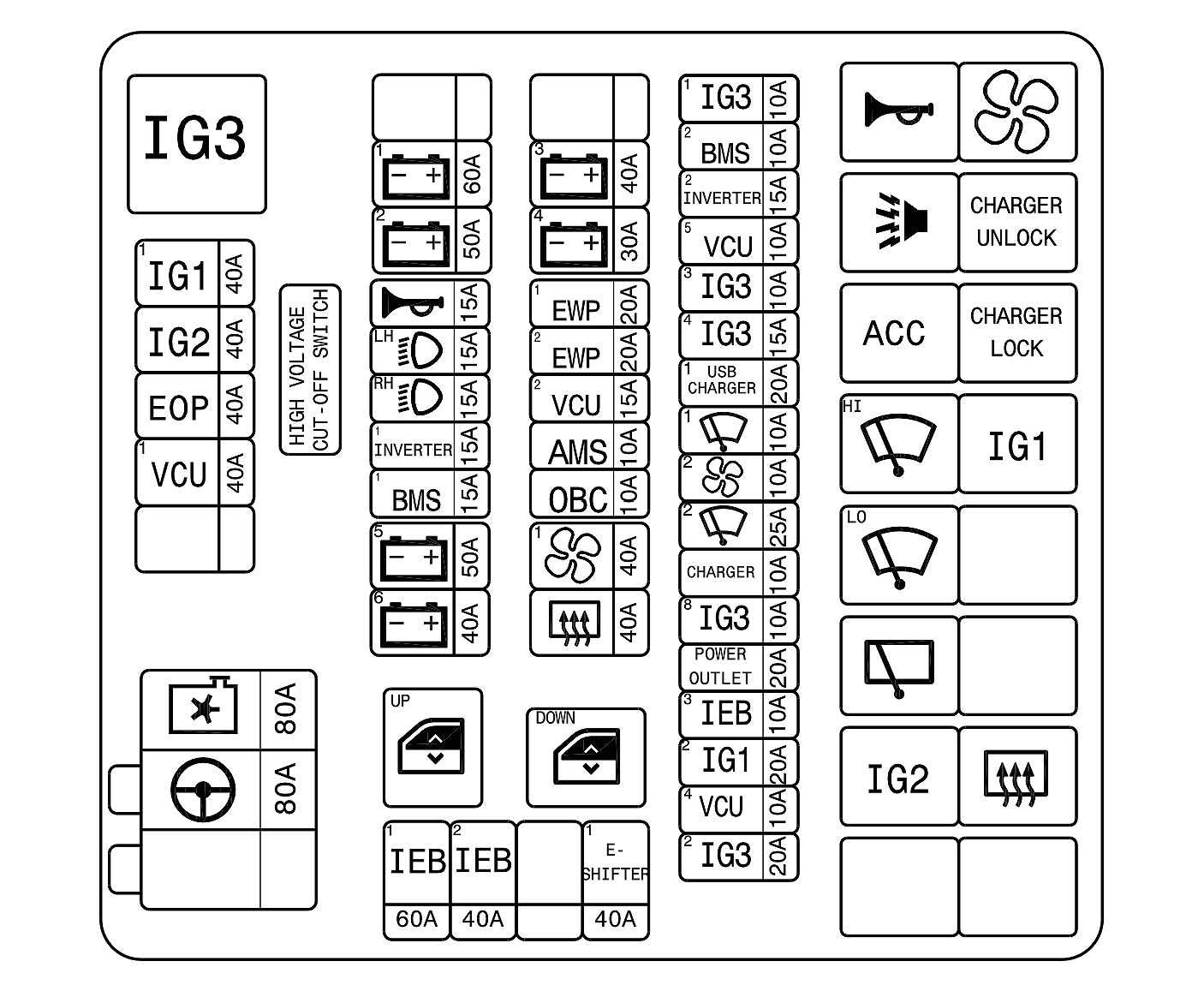

Motor compartment fuse panel
 OAYIEV126013L |
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
SPARE & MDPS & C/FAN |
|
MULTI FUSE 3P 150A/80A/80A |
SPARE 150A: Not Used - MDPS1 80A: C_MDPS - C/FAN 80A: C_FAN_BLDC |
|
E-SHIFTER1 |
|
S/B M FUSE 40A |
- SCU_EV (MTR) |
|
IEB2 |
|
S/B J FUSE 40A |
- IEB_UNIT (VALVE B+) |
|
IEB1 |
|
S/B J FUSE 60A |
- IEB_UNIT (PUMP MTR B+) |
|
B+3 |
|
S/B J FUSE 40A |
- ERJB FUSE LIST (CHANGER 10A) - PDC FUSE LIST (A/CON1 10A, P/SEAT DRV 30A, SBCM DRV 25A, SBCM PASS 25A, P/WINDOW DRV 15A, VCU3 15A, P/WINDOW LH 25A, P/WINDOW RH 25A, DDM 15A, BATT EWP3 15A, WIRELESS DCU 7.5A, E-SHIFTER2 10A, E-SHIFTER5 10A, MODULE8 10A) |
|
B+4 |
|
S/B J FUSE 30A |
- ERJB FUSE LIST (BLOWER2 10A) - PDC FUSE LIST (MULTIMEDIA 25A, MEMORY1 10A, MEMORY2 7.5A, BDC1 10A, BRAKE SWITCH 7.5A, CCU 10A, DOOR LOCK 20A, TAILGATE OPEN 10A) - PDC IPS (ShortTermLoad) |
|
B+1 |
|
S/B J FUSE 60A |
- PDC IPS (LeftHeadLamp High/Low, FLTurnSignalLamp, _LeftPositionLamp, LeftBrakeLamp, HMSL, Left/RightDedicatedDRL, RrFogLamp, IntTailLamp, LampLoad) |
|
B+2 |
|
S/B J FUSE 50A |
- PDC IPS (RightHeadLamp High/Low, FRTurnSignalLamp, RightPositionLamp, RLTurnSignalLamp, RRTurnSignalLamp, LeftTailLamp, RightTailLamp, RightBrakeLamp, BackUpLamp, LeftFrtFogLamp, RightFrtFogLamp) |
|
BLOWER1 |
|
S/B J FUSE 40A |
- ERJB RELAY LIST (BLOWER RELAY) |
|
REAR HEATED |
|
S/B J FUSE 40A |
- ERJB RELAY LIST (REAR HEATED RELAY) |
|
B+5 |
|
S/B J FUSE 50A |
- ERJB FUSE LIST (USB CHARGER1 20A) - PDC FUSE LIST (AMP 25A, AIRBAG2 10A, MODULE9 10A, SUNROOF1 20A, SUNROOF2 20A) |
|
B+6 |
|
S/B J FUSE 40A |
- ERJB RELAY LIST (IG3 RELAY) |
|
IG1_1 |
|
S/B M FUSE 40A |
- ERJB RELAY LIST (ACC RELAY, IG1 RELAY) |
|
IG2 |
|
S/B M FUSE 40A |
- ERJB RELAY LIST (IG2 RELAY) |
|
EOP |
|
S/B M FUSE 40A |
- FRT_EOP |
|
VCU1 |
|
S/B M FUSE 40A |
- VPC (B+ (DAS)) |
|
RESERVE |
- |
Not Used |
|
|
IG3_1 |
|
MICRO 10A |
- A_COMP_SIG |
|
BMS2 |
|
MICRO 10A |
- BMS_EXTN (IG3) |
|
INVERTER2 |
|
MICRO 15A |
- INVERTER, SCU_EV |
|
VCU5 |
|
MICRO 10A |
- VPC (WAKE-UP) |
|
IG3_3 |
|
MICRO 10A |
- EWP_PE, EWP_BATT_FRNT, 3WAY_VALVE_BATT, FRT_EOP, EWP_BATT_FPEM |
|
IG3_4 |
|
MICRO 15A |
- VCMS, ICCU_SIG |
|
USB CHARGER1 |
|
MICRO 20A |
- C_CHARGER 100W |
|
WIPER FRT1 |
|
MICRO 10A |
- WIPER MTR FRT - ERJB RELAY LIST (FRT WIPER LOW RELAY) |
|
BLOWER2 |
|
MICRO 10A |
- WIPER MTR FRT - ERJB RELAY LIST (BLOWER RELAY (COIL)) |
|
WIPER FRT2 |
|
MICRO 25A |
- WIPER MTR FRT - ERJB RELAY LIST (FRT WIPER LOW RELAY) |
|
CHARGER |
|
MICRO 10A |
- ERJB RELAY LIST (CHARGE LOCK RELAY, CHARGE UNLOCK RELAY) |
|
IG3_8 |
|
MICRO 10A |
- C_FAN_BLDC |
|
POWER OUTLET |
|
MICRO 20A |
- P_OUTLET_FRT |
|
IEB3 |
|
MICRO 10A |
- IEB_UNIT |
|
IG1_2 |
|
MICRO 20A |
- ERJB FUSE LIST (VCU4 10A, IEB3 10A) |
|
VCU4 |
|
MICRO 10A |
- VPC (Ignition Key On) |
|
IG3_2 |
|
MICRO 20A |
- PDC FUSE LIST (IG3_5 10A, IG3_6 10A, IG3_7 10A) |
|
EWP1 |
|
MICRO 20A |
- EWP_BATT_FPEM |
|
EWP2 |
|
MICRO 20A |
- EWP_PE |
|
VCU2 |
|
MICRO 15A |
- VPC (B+ (Permanent)) |
|
AMS |
|
MICRO 10A |
- BATTERY_SNSR |
|
OBC |
|
MICRO 10A |
- ICCU_SIG (B+), VCMS (B+) |
|
HORN |
|
MICRO 15A |
- ERJB RELAY LIST (HORN RELAY, B/HORN RELAY) |
|
HEAD LP LH |
|
MICRO 15A |
- H_LP_MFR_LH |
|
HEAD LP RH |
|
MICRO 15A |
- H_LP_MFR_RH |
|
INVERTER1 |
|
MICRO 15A |
- INVERTER (B+) |
|
BMS1 |
|
MICRO 15A |
- BMS_EXTN (B+) |
|
Relay Name |
Symbol |
TYPE |
Circuit Protected |
|---|---|---|---|
|
BLOWER RELAY |
|
H/C MICRO RELAY 4P |
- BLOWER MTR |
|
CHARGE UNLOCK |
|
H/C MICRO RELAY 5P |
C_C_ACTR (UNLOCK RELAY) |
|
CHARGE LOCK |
|
H/C MICRO RELAY 5P |
C_C_ACTR (LOCK RELAY) |
|
IG1 RELAY |
|
H/C MICRO RELAY 4P |
- ERJB FUSE LIST (IG1_2 20A) - PDC FUSE LIST (AIRBAG1 10A, A/BAG IND 7.5A, E-SHIFTER4 10A, CLUSTER 7.5A, BDC2 7.5A, MDPS2 7.5A, MODULE2 10A, MODULE4 10A, MODULE5 10A,, MODULE3 10A) |
|
REAR HEATED RELAY |
|
H/C MICRO RELAY 4P |
- RR_HTR_P - PDC FUSE LIST (HTD MIRROR 7.5A) |
|
HORN RELAY |
|
MICRO RELAY 4P |
- HORN_DUAL_LH/RH |
|
B/A HORN RELAY |
|
MICRO RELAY 4P |
- B_A_HORN |
|
ACC RELAY |
|
H/C MICRO RELAY 4P |
- ERJB FUSE LIST (P/OUTLET 20A) - PDC FUSE LIST (USB CHARGER2 10A, MODULR1 10A) |
|
WIPER FRT HI RELAY |
|
H/C MICRO RELAY 5P |
- FRONT WIPER MOTOR |
|
WIPER FRT LO RELAY |
|
H/C MICRO RELAY 5P |
- FRONT WIPER MOTOR |
|
REAR WIPER RELAY |
|
MICRO RELAY 4P |
- REAR WIPER MOTOR |
|
IG2 RELAY |
|
H/C MICRO RELAY 4P |
- ERJB FUSE LIST (WIPER FRT2 25A) - PDC FUSE LIST (A/C2 7.5A, WIPER RR 15A, WASHER 15A, MODULE6 7.5A, MODULE7 7.5A) |
|
POWER WINDOW DOWN RELAY |
|
MICRO RELAY 5P |
- P_WDW_MTR_DRV |
|
POWER WINDOW UP RELAY |
|
MICRO RELAY 5P |
- P_WDW_MTR_DRV |
|
IG3 RELAY |
|
MINI RELAY 5P |
- ERJB FUSE LIST (IG3_1 10A, BMS2 10A, INVERTER2 15A, VCU5 10A, IG3_3 10A, IG3_4 15A, IG3_2 20A, IG3_8 10A) |
