Replacing lights (LED type)

If the LED lamp is not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

CAUTION

If the high-mounted stop lamp (LED) is not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing day time running lamp/position Lamp/front turn signal lamp, headlamp (high/low) (LED type)

If day time running lamp/position lamp/front turn signal lamp, headlamp (high/low) are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

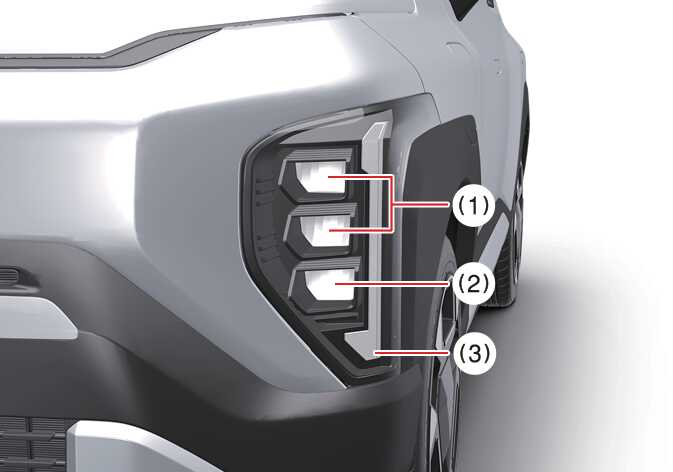

OAYIEV126007L

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Day time running light/Position lamp/Front turn signal lamp (LED type)
NOTE

After replacing a headlight assembly, have the headlight aiming adjusted by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

Replacing side repeater lamp (LED type)

If side repeater lamp is not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

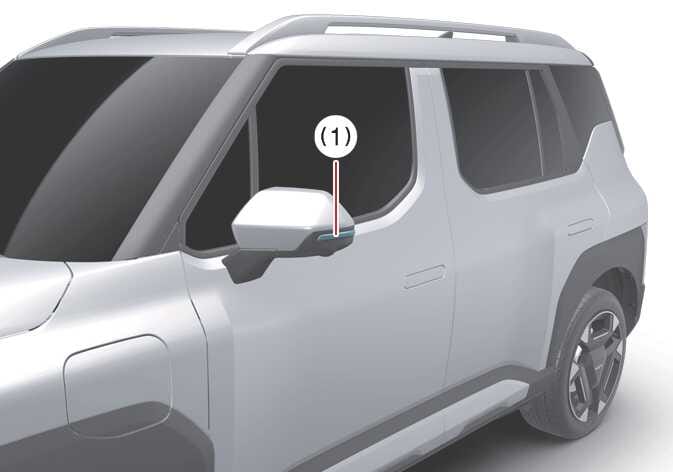

OAYIEV126009L

  1. Side repeater lamp (LED type)

Replacing tail lamp/stop lamp, reversing lamp, license plate lamp, rear fog lamp (LED type)

If tail lamp/stop lamp, reversing lamp, license plate lamp, rear fog lamp are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

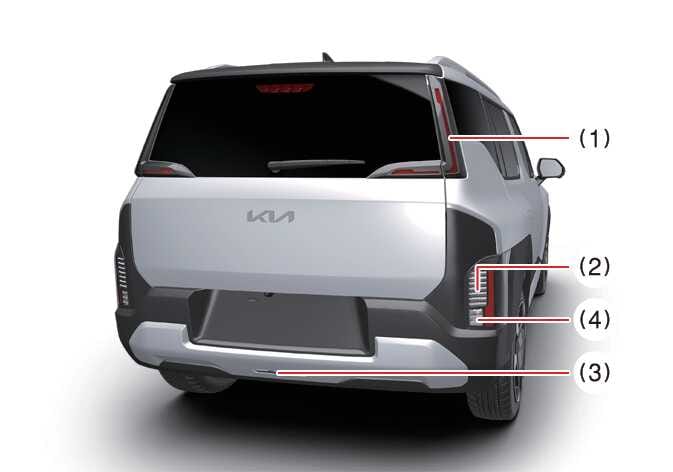

OAYIEV126011L

  1. Tail lamp (LED type)

  2. Stop lamp (LED type)

  3. Back up lamp/Rear fog lamp* (LED type)

  4. Rear turn signal lamp (LED type)

*: if equipped

Replacing interior lights (LED type)

If map lamp, room lamp, vanity mirror lamp, luggage lamp, glove box lamp, ambient light are not functioning, have your vehicle inspected by a professional workshop. Kia recommends visiting an authorised Kia dealer or service partner.

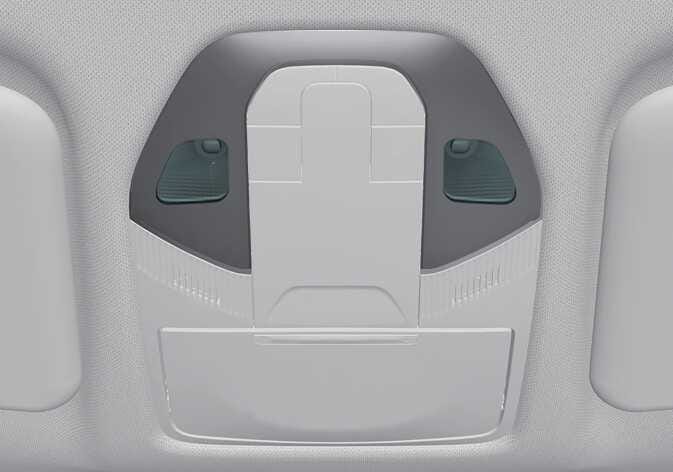

Figure 1. Map lamp
OAYIEV126012L
Figure 2. Ambient light (if equipped)
OAYI086031R
Figure 3. Personl lamp (if equipped)
OAYIEV126021L
