LCD display modes (for Type B cluster)

Mode

Driving Assist

Trip Computer

Turn By Turn (TBT)*

User Settings*

Master warning

Up/Down

Lane Keeping Assist/Lane Following Assist

Drive Info

Route Guidance

Driver Assistance

The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.

Since Refueling

Destination Info

Cluster

Accumulated Info

Lights

Digital Speedometer

Door

Driver Attention Warning

Convenience

Units

Language

Reset

The information provided may differ depending on which functions are applicable to your vehicle.

For controlling the LCD modes, refer to LCD Display Control“.

Driving Assist mode

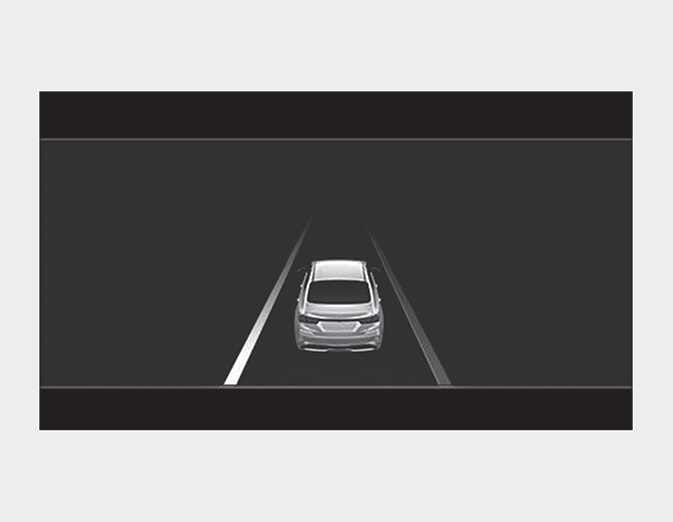

OBD041580

  • Lane Keeping Assist (if equipped)

    Lane Following Assist (if equipped)

  • Driver Attention Warning (if equipped)

For more details, refer to each system information in Driving your vehicle.

Setting (if equipped)

To change the Driver Assistance settings, press the OK button on the steering wheel for more than 1 second when the Driving Assist mode is displayed.

WARNING

While driving, please do not change the setting mode. It may distract your attention and cause the accident.

Trip computer mode

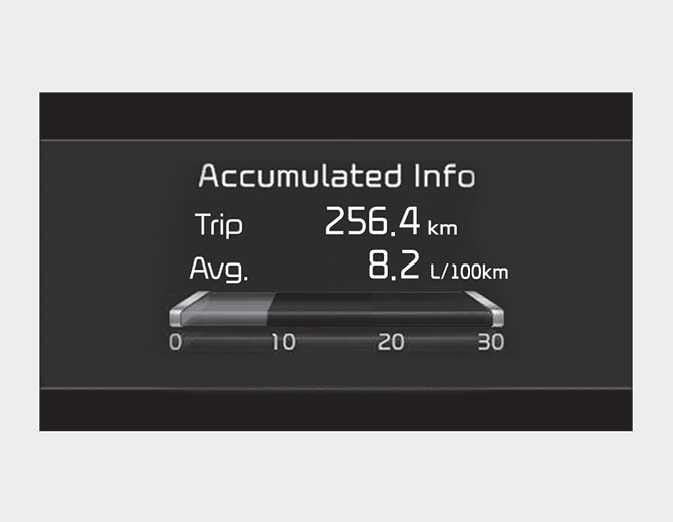

OBD042297C

The trip computer mode displays information related to vehicle driving parameters including Accumulated info, Driving information, and so on.

For more details, refer to Trip Computer.

Turn By Turn mode: (if equipped)

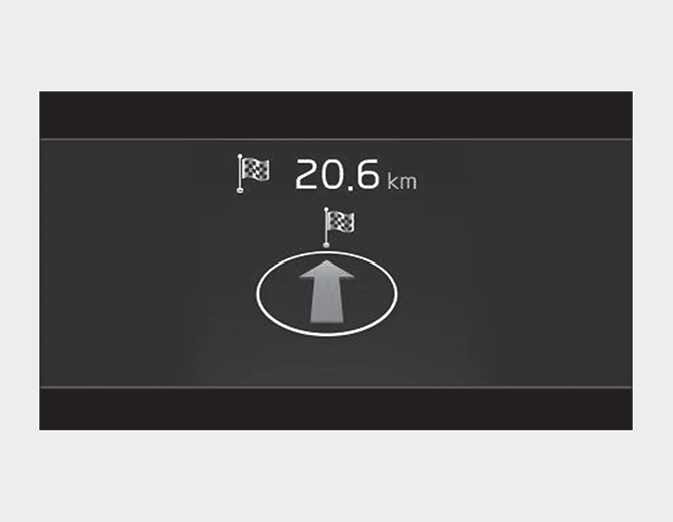

OBD041579

This mode displays the state of the navigation.

Master warning mode

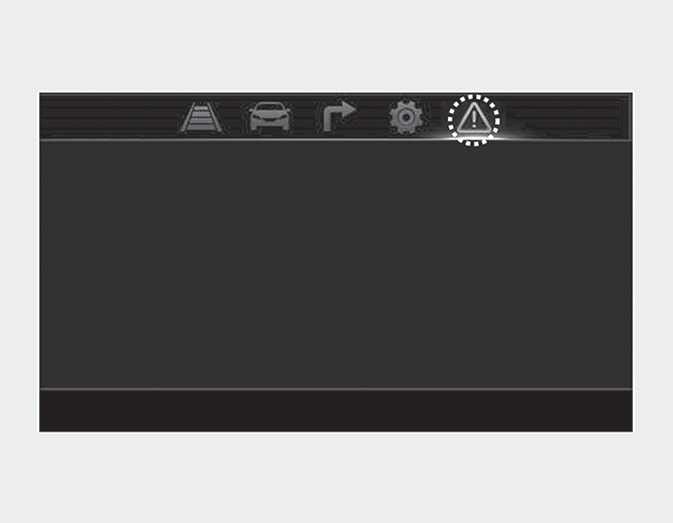

OBD041586

This warning light informs the driver the following situations.

  • Forward Collision-Avoidance Assist malfunction (if equipped)

  • Blind-Spot Collision Warning malfunction (if equipped)

  • Blind-Spot Collision Warning radar blocked (if equipped)

  • High Beam Assist malfunction (if equipped)

  • LED headlamp malfunction (if equipped)

  • TPMS failure, low pressure (if equipped), etc.

At this time, a Master Warning icon ( ) will appear on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

User settings mode: (if equipped)

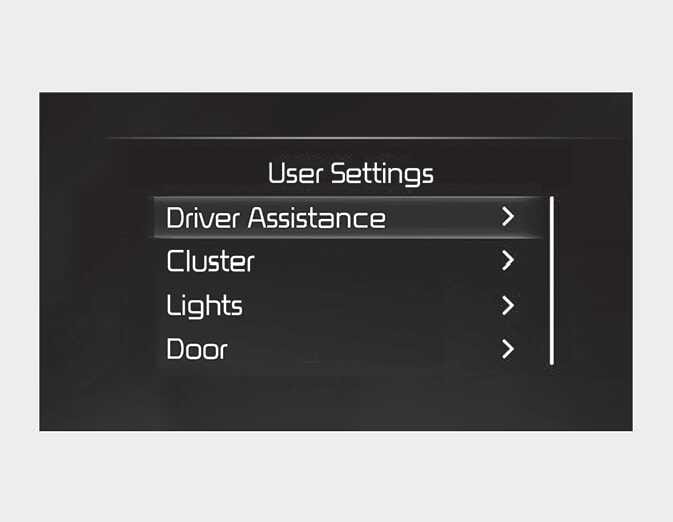

OBD041588L

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

Shift to P to edit settings/Engage parking brake to edit settings

This warning message appears if you try to adjust the User Settings while driving.

  • Automatic transmission, Dual clutch transmission, Intelligent Variable Transmission

    For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

  • Manual Transmission

    For your safety, change the User Settings after engaging the parking brake.

Driver Assistance (if equipped)

Items

Explanation

Warning Timing (if equipped)

  • Normal/Late

To select the Warning Time.

Warning Volume (if equipped)

  • High/Medium/Low

To select the Warning Volume.

Driver Attention Warning (if equipped)

  • Leading vehicle departure alert/Inattentive Drive Warning

To select the function.

For more details, refer to Driver Attention Warning (DAW).

Forward Safety (if equipped)

  • Active Assist/Warning Only/Off

To select the functions.

For more details, refer to Forward Collision–Avoidance Assist (FCA) (Front view camera only).

Lane Safety (if equipped)

  • Assist/Warning Only/Off

To select the functions.

For more details, refer to Lane Following Assist (LFA).

Blind-Spot Safety (if equipped)

  • Safe Exit Warning

To select the function.

For more details, refer to Safe Exit Warning (SEW).

  • Warning Only/Off

To select the function.

For more details, refer to Blind-Spot Collision Warning (BCW).

Parking Safety (if equipped)

  • Parking Distance Warning Auto ON

To select the function.

For more details, refer to Forward/Reverse Parking Distance Warning (PDW).

  • Rear Cross-Traffic Safety

To select the function.

For more details, refer to Rear Cross-Traffic Collision Warning (RCCW).

The information provided may differ depending on which systems are applicable to your vehicle.

Cluster

Items

Explanation

Theme Selection (if equipped)

  • Theme A/Theme B/Theme C

To select the theme of instrument cluster LCD.

Wiper/Lights Display

  • If this item checked, the Wiper/Lights Display will be activated.

Traffic Signs (if equipped)

  • If this item checked, the Traffic Signs will be activated.

Icy Road Warning

  • If this item checked, the Icy Road Warning display will be activated.

Welcome Sound (if equipped)

  • If this item checked, the Welcome Sound will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

Lights

Items

Explanation

One Touch Turn Signal

  • Off: The one touch turn signal function will be deactivated.

  • 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

For more details, refer to One-touch lane change function.

Ambient Light Brightness (if equipped)

  • Off/Level 1,2,3,4

To adjust the brightness of the Ambient Light.

Ambient Light Color (if equipped)

  • Blue Flight/Peaceful Forest/Dreamy Purple/Aurora Violet/Orange Delight/Golden Insight/Refreshing Sea

To select the color of the Ambient Light.

Headlight Delay (if equipped)

  • To activate or deactivate the headlight delay function.

High Beam Assist (if equipped)

  • To activate or deactivate High Beam Assist function.

For more details, refer to Driving assistance system.

The information provided may differ depending on which functions are applicable to your vehicle.

Door

Items

Explanation

Auto Lock

  • Enable on shift (if equipped with Automatic transmission, Dual clutch transmission, Intelligent Variable Transmission) : All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (with the engine ON, it is activated.)

  • Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph).

  • Off : The auto door lock operation will be deactivated.

Auto Unlock

  • On shift to P (if equipped with Automatic transmission, Dual clutch transmission, Intelligent Variable Transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (with the engine ON, it is activated.)

  • On key out/Vehicle off : All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

  • Off : The auto door unlock operation will be canceled.

2 Press Unlock (if equipped)

If this item is checked, the two press unlock will be activated.Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.

Remote Window (if equipped)

  • To activate or deactivate the Remote Window.

For more details, refer to Remote window closing/opening system.

Smart Trunk (if equipped)

  • To activate or deactivate the Smart Trunk.

For more details, refer to Smart Trunk.

The information provided may differ depending on which systems are applicable to your vehicle.

Convenience (if equipped)

Items

Explanation

Seat Easy Access (if equipped)

  • Off/Normal/Extended

To select the function.

For more details, refer to Easy access function.

Rear Occupant Alert (if equipped)

  • To activate or deactivate Rear Occupant Alert function.

For more details, refer to Rear Occupant Alert (ROA) system.

Service Interval

  • Enable Service Interval : If this item is checked, the Service Interval function will be activated.

  • Adjust Interval : If the Service Interval menu is activated, you may adjust the time and distance.

  • Reset : To reset the Service Interval function.

Welcome Mirror/Light (if equipped)

  • To activate or deactivate the Welcome Mirror/Light function.

Wireless Charging System (if equipped)

  • To activate or deactivate the Wireless Charging System function.

For more details, refer to Wireless smart phone charging system.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

  • Service in: Displayed to inform the driver the remaining mileage and days to service.

  • Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

  • The battery cable is disconnected.

  • The battery is discharged.

Units

Items

Explanation

Speed Unit

  • km/h, MPH

To select the Speedometer unit.

Temperature Unit

  • °C/°F

To select the Temperature unit.

Fuel Econ. Unit

  • L/100km, km/L or US gallon, UK gallon

To select the Fuel economy unit.

Tire Pressure Unit

  • psi, kPa, bar

To select the Tire Pressure Unit.

The information provided may differ depending on which functions are applicable to your vehicle.

Language

Items

Explanation

Language

  • To select language.
Reset

Items

Explanation

Reset

You can reset the menus in the User Settings mode.
