Removal and installation

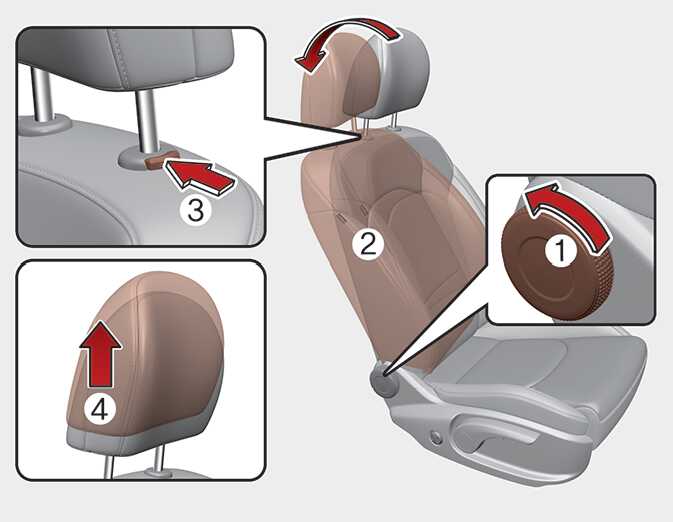

Figure 1. Type A
OCDW039012

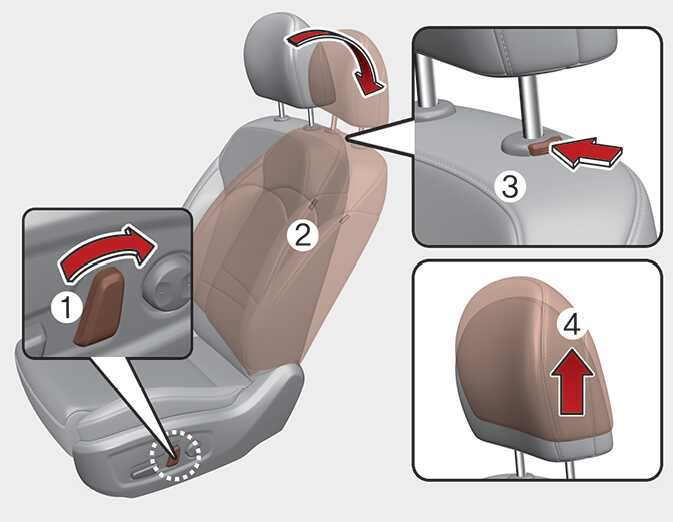

Figure 2. Type B
OCDW039013

To remove the headrest:

  1. Recline the seatback (2) with the recline lever or switch (1).
  2. Raise headrest as far as it can go.
  3. Press the headrest release button (3) while pulling the headrest up (4).
    WARNING

    A gap between the seat and the headrest release button may appear when seating on the seat or when you push or pull the seat. Be careful not to get your finger, etc. caught in the gap.

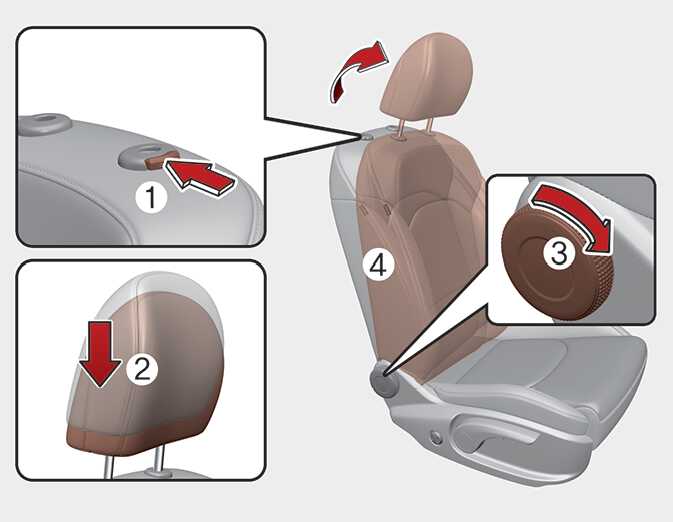

    Figure 3. Type A
    OCDW039015

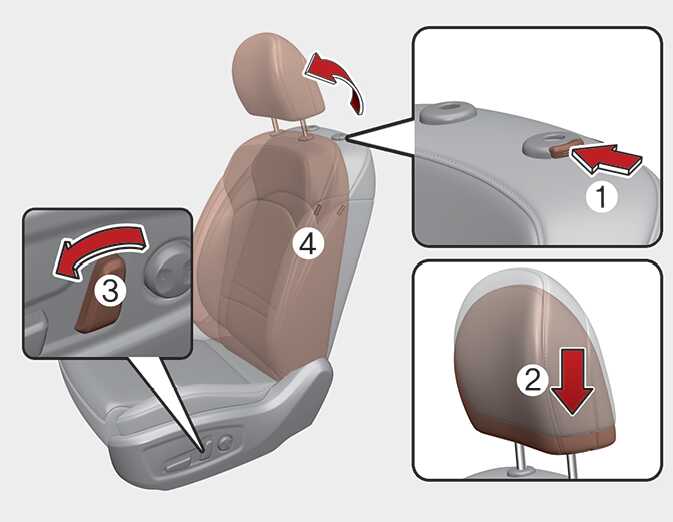

    Figure 4. Type B
    OCDW039014

To reinstall the headrest:

  1. Put the headrest poles (2) into the holes while pressing the release button (1).
  2. Recline the seatback (4) with the recline lever or switch (3).
  3. Adjust the headrest to the appropriate height.
    WARNING

    A gap between the seat and the headrest release button may appear when seating on the seat or when you push or pull the seat. Be careful not to get your finger, etc. caught in the gap.
