To fold down the rear seatback
  1. Set the front seatback to the upright position and if necessary, slide the front seat forward.
  2. Lower the rear headrests to the lowest position.

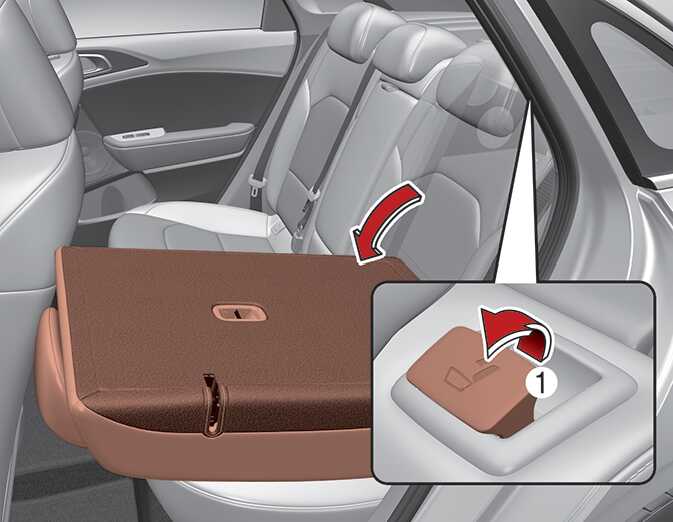

    Figure 1. On rear outboard seatback
    OCDW039021
  3. On rear outboard seatback: Pull the lock release lever (1) and fold the rear seatback forward and down firmly.

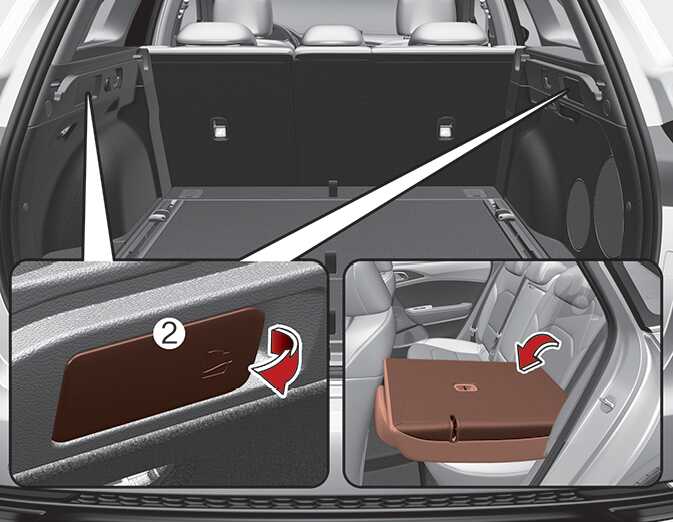

    Figure 2. In the luggage room
    OCDW039079

    In the luggage room (Remote folding, for Wagon, Shooting Brake, if equipped):

  4. Pull on the seatback folding lever (2), then the rear seatback will be folded.
CAUTION

Remote folding

Do not strongly push back the seat back to lock. It may unlock and return by repulsive power.

WARNING

Remote folding

Do not fold the rear seats, if passengers, pets or luggage are in the rear seats or on the folded seats. It may cause injury or damage to passengers, pets, luggage.

WARNING

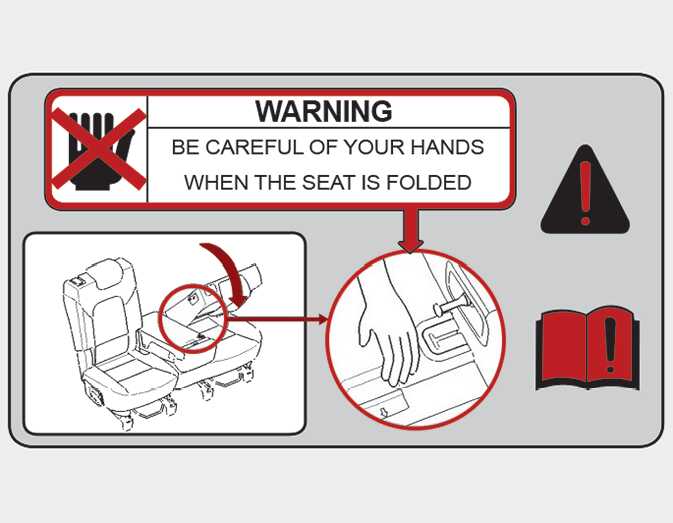

2nd row right side seat folding

OCDW039064

Be careful when you fold the 2nd row right side seat, if the center seat is folded. It may cause injury or damage to you.
