Air bag collision sensors

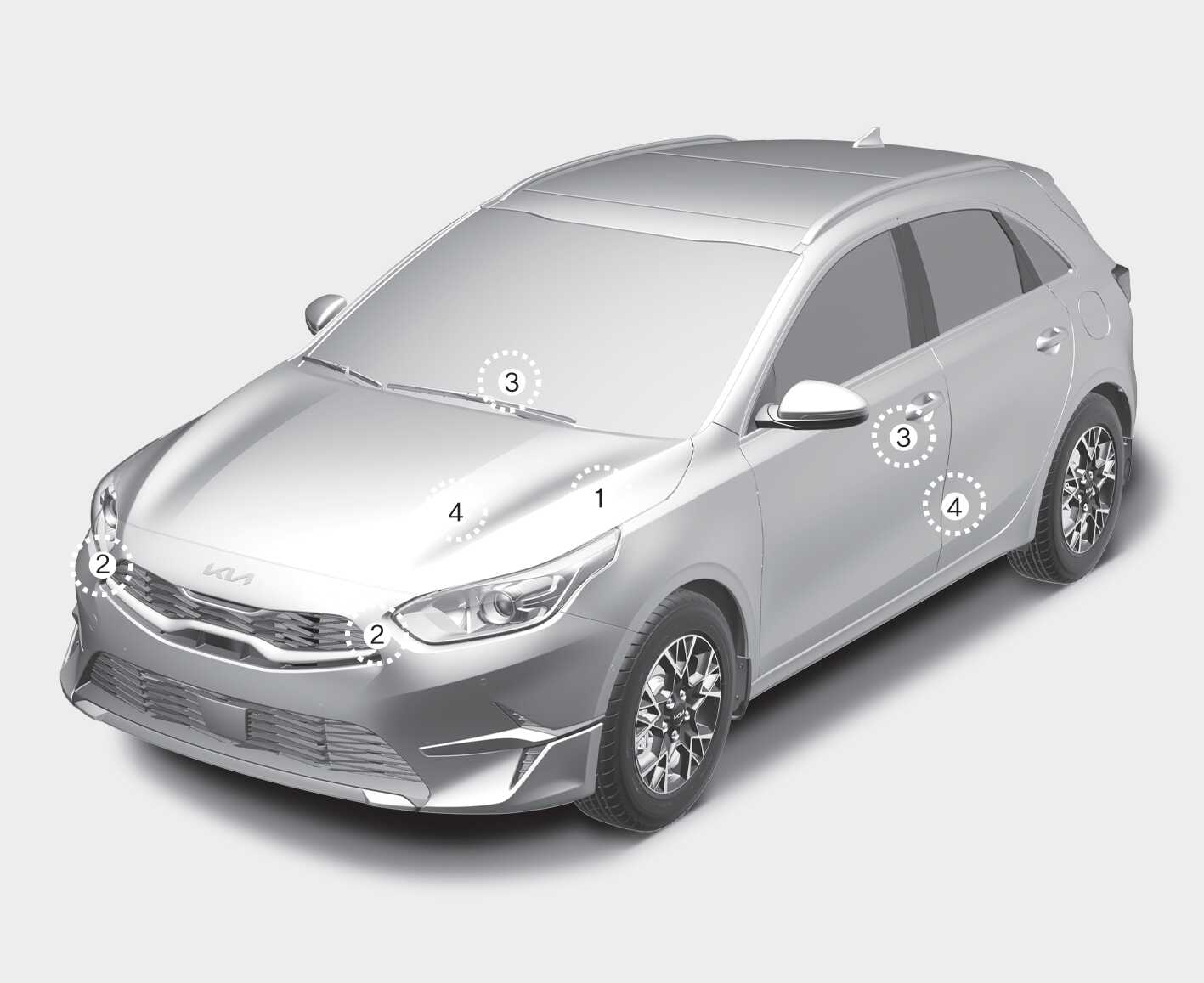

Figure 1. Type A
OCD031065L
OCD031066L
OCD031067L
OCD031068L
OCDW039045

The actual air bag collision sensors in the vehicle may differ from the illustration.

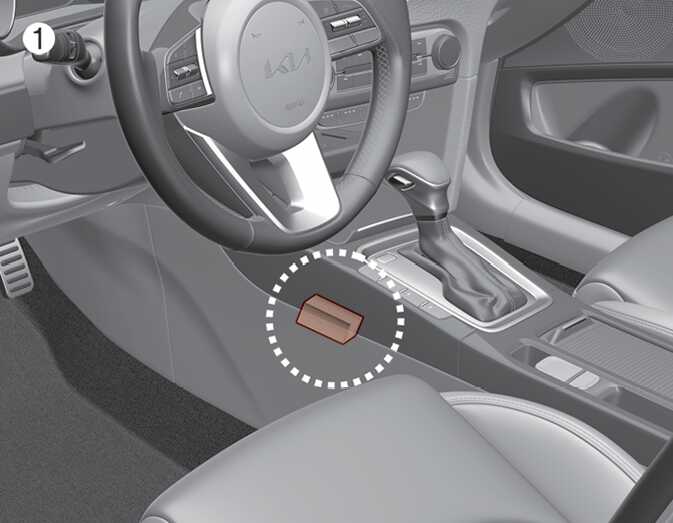

  1. SRS control module/Rollover sensor (if equipped)

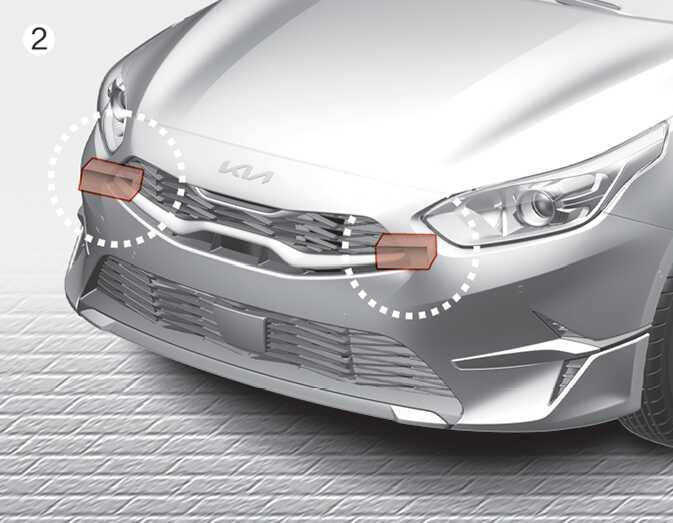

  2. Front impact sensor

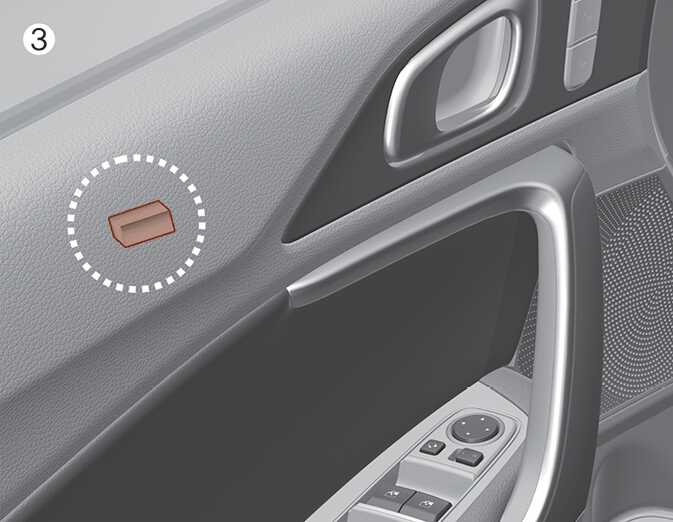

  3. Side pressure sensors

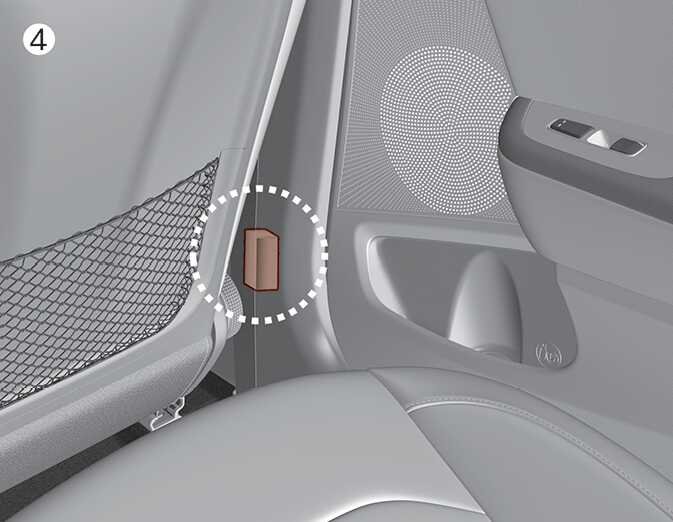

  4. Side impact sensor

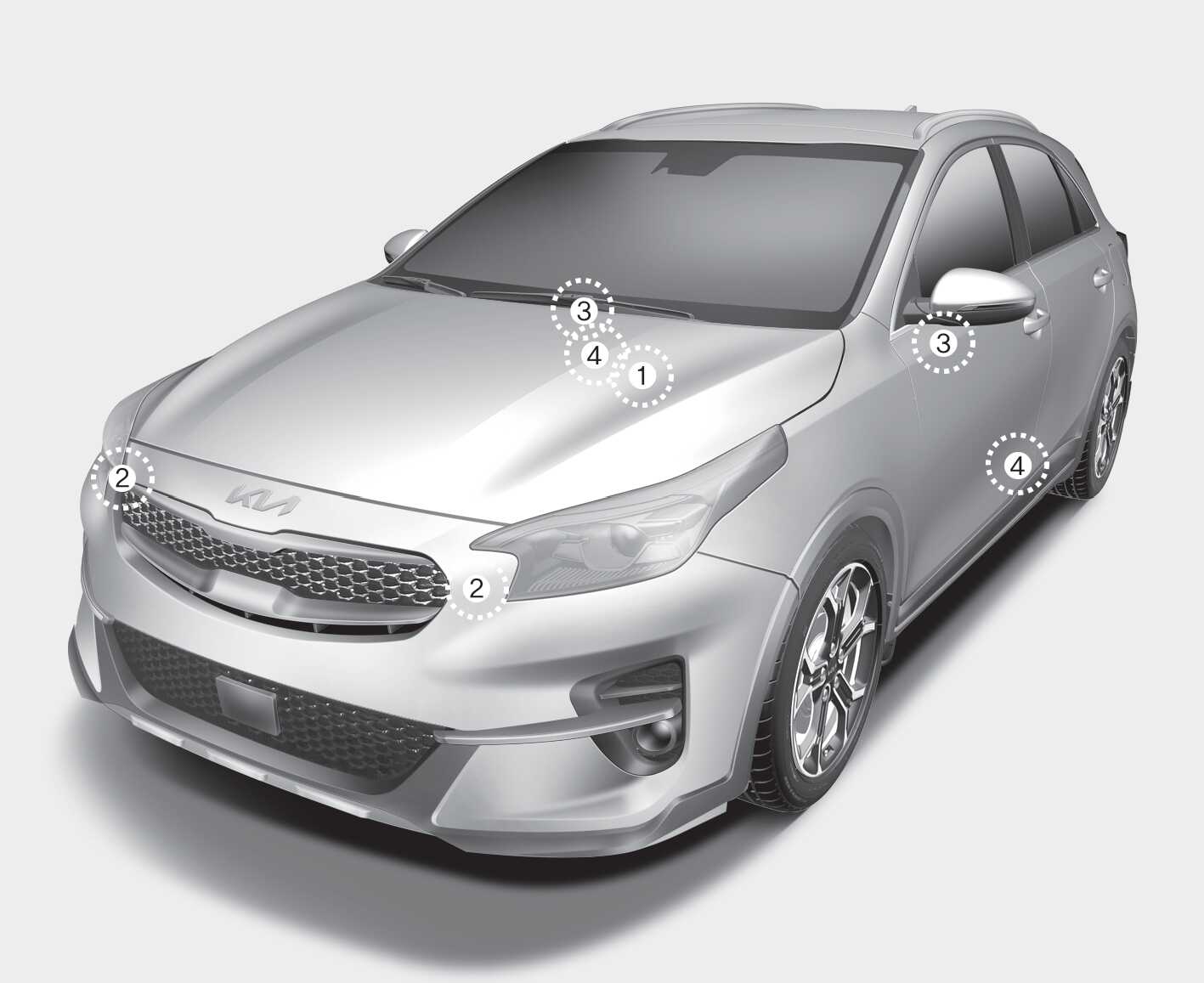

Figure 2. Type B
OCD031069L
OCD031066L0
OCD031070L
OCD031068L0
OCDW0390450

The actual air bag collision sensors in the vehicle may differ from the illustration.

  1. SRS control module/Rollover sensor (if equipped)

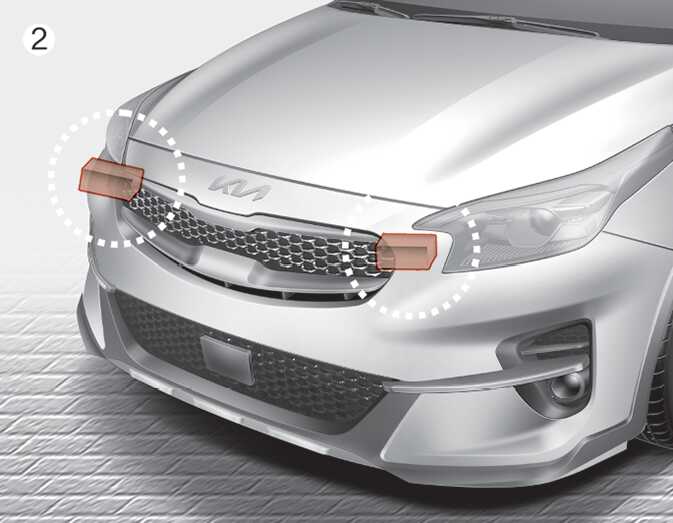

  2. Front impact sensor

  3. Side pressure sensors

  4. Side impact sensor

WARNING
  • Do not hit or allow any objects to impact the locations where air bags or sensors are installed.

    This may cause unexpected air bag deployment, which could result in serious personal injury or death.

  • If the installation location or angle of the sensors is altered in any way, the air bags may deploy when they should not or they may not deploy when they should, causing severe injury or death.

    Therefore, do not try to perform maintenance on or around the air bag sensors. Have the system serviced by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.

  • Problems may arise if the sensor installation angles are changed due to the deformation of the front bumper, body or B pillars where side collision sensors are installed. In this case, have the system serviced by a professional workshop. Kia recommends to visit an authorized Kia dealer/ service partner.

  • Your vehicle has been designed to absorb impact and deploy the air bag(s) in certain collisions. Use only Kia Genuine Parts or those of an equivalent standard to install bumper guards or replace a bumper. If not, it may adversely affect your vehicle’s collision and air bag deployment performance.

WARNING

If equipped with rollover sensor

If your vehicle is equipped with side and curtain air bag, set the ignition switch to OFF or ACC position when the vehicle is being towed.

The side and curtain air bag may deploy when the ignitions is ON, and the rollover sensor detects the situation as a rollover.
